FRONT FENDER

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

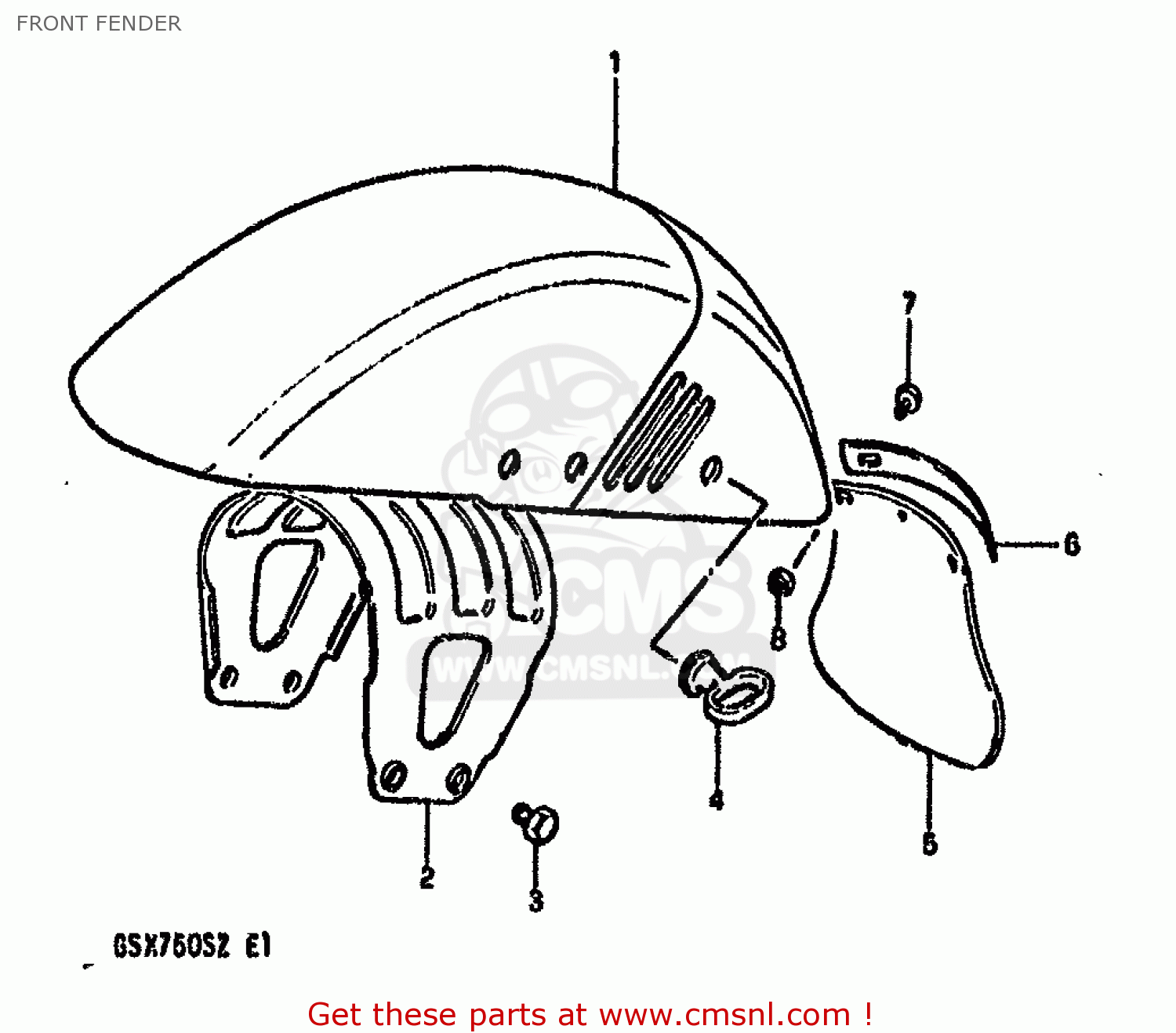

Front fender diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

prices are in EUR

ref

part #

description

quantity

1-1

531114930013L
ref: 1-1

FR FENDER

€ 128.50

1-2

531114930011W
ref: 1-2

FENDER,FRONT

€ 112.50

1-3

531114931013L
ref: 1-3
E15,E16,E17,E24

FENDER,FRONT

€ 128.50

1-4

531114931011W
ref: 1-4
E15,E16,E17,E24

FENDER,FRONT

€ 0.00

5311449300
ref: 2

BRACE,FRONT FENDER

€ 50.00

0910008135
ref: 3

BOLT 8X16

€ 3.00

5862121203A
ref: 4

GUIDE,CABLE

€ 7.50

5331125600
ref: 5
E15,E16,E17,E24

FLAP,MUD

€ 9.00

5332149300
ref: 6
E15,E16,E17,E24

PLATE

€ 0.00

0214205128
ref: 7
E15,E16,E17,E24

SCREW

€ 1.50

0831626058
ref: 8
E15,E16,E17,E24

NUT 5MM

€ 2.00
