REAR COMBINATION LAMP (E17)

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

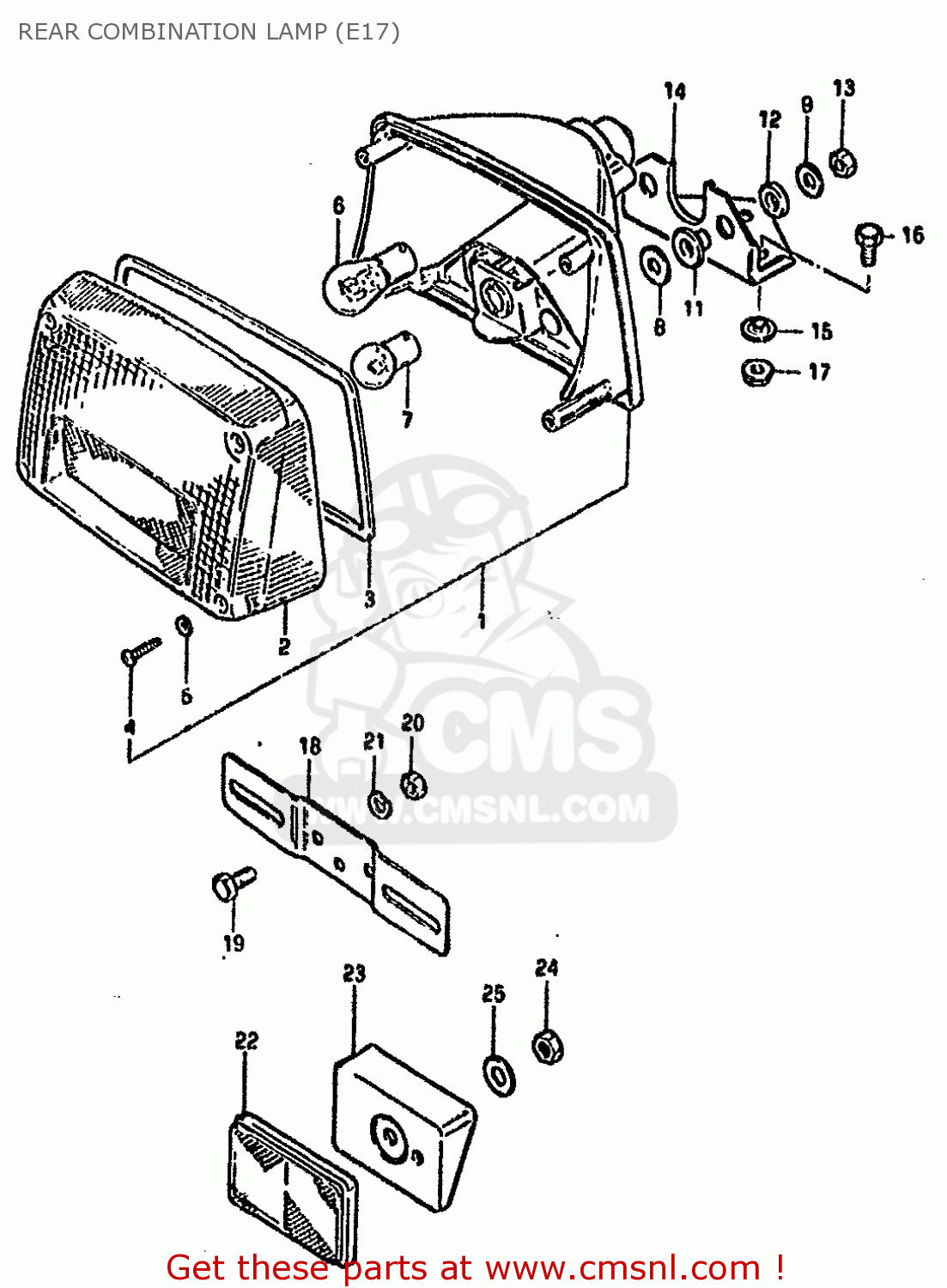

Rear combination lamp (e17) diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

prices are in EUR

ref

part #

description

quantity

3571049371
ref: 1
FROM 35710-49370

LAMP ASSY, TAIL

€ 0.00

3571249071
ref: 2

LENS

€ 44.00

3571349030
ref: 3

GASKET (NAS)

€ 12.50

3562749030
ref: 4

SCREW,REAR COMBINATION LAMP

€ 1.50

3562743010
ref: 5

GASKET (NAS)

€ 2.00

0947112057
ref: 6

BULB 12V21/5W

€ 6.00

0947112058
ref: 7

BULB

€ 4.00

0916006007
ref: 8

WASHER

€ 2.00

0916006012
ref: 9

WASHER(6,5X22X1.6)

€ 2.00

0918006038
ref: 10

SPACER(6.1X9X7.5)

€ 2.00

0932009003
ref: 11

CUSHION

€ 2.00

0932009004
ref: 12

CUSHION

€ 2.50

0831626068
ref: 13

NUT 6MM

€ 2.00

3572633200
ref: 14

BRACKET,RR COMBINATION LAMP

€ 6.50

0916906028
ref: 15

WASHER

€ 2.00

0110706168
ref: 16

BOLT, UPPER

€ 3.00

0831626068
ref: 17

NUT 6MM

€ 2.00

3592744110
ref: 18

PLATE,RR LICENSE

€ 22.50

0151706168
ref: 19

BOLT

€ 1.50

0831011068
ref: 20

NUT

€ 2.50

0832121068
ref: 21

LOCK WASHER

€ 2.50

3597049310
ref: 22

REFLECTOR,REFLEX

€ 16.50

3597749310
ref: 23

SPACER

€ 0.00

0831011058
ref: 24

NUT

€ 2.50

0916005013
ref: 25

WASHER(5.2X16X1)

€ 1.50
