STAND (E16,E18,E22,E25,E26)

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

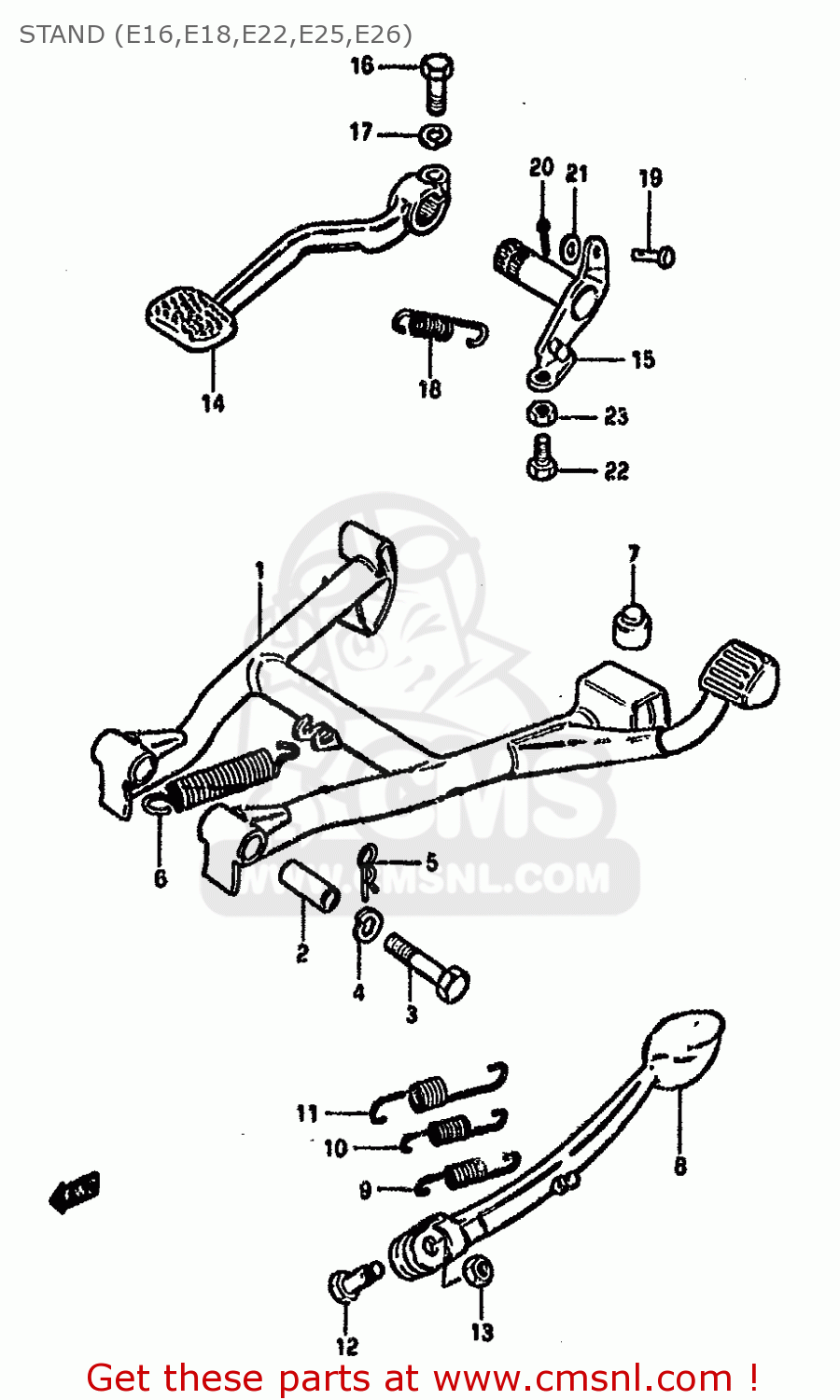

Stand (e16,e18,e22,e25,e26) diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

prices are in EUR

ref

part #

description

quantity

1-1

4210049301
ref: 1-1
E16,E18

STAND,CENTER

€ 211.50

1-2

4210049311
ref: 1-2
E22,E25,E26

STAND, CENTER

€ 0.00

0918010040
ref: 2

SPACER(10X16X38.8)

€ 3.00

0910110018
ref: 3

BOLT

€ 5.50

0832121108
ref: 4

LOCK WASHER

€ 2.00

0938510001
ref: 5

CLIP

€ 1.50

6-1

0944320001
ref: 6-1
E16,E18

SPRING

€ 11.00

6-2

0944318003
ref: 6-2
E22,E25,E26

SPRING

€ 5.50

0932110001
ref: 7

CUSHION

€ 2.50

4231049310
ref: 8

STAND, PROP

€ 90.00

0944315013
ref: 9
E16,E18,E26

SPRING

€ 22.50

0944314019
ref: 10
E22,E25

SPRING

€ 7.00

0944322002
ref: 11
E22,E25

SPRING

€ 7.00

0911110024
ref: 12

BOLT(10X32)

€ 4.50

0831022108
ref: 13

NUT

€ 2.50

4311049301
ref: 14

PEDAL, BRAKE

€ 70.50

4312049301
ref: 15

ARM,BRAKE PEDAL

€ 23.50

0120408257
ref: 16

BOLT

€ 2.00

0832121088
ref: 17

LOCK WASHER

€ 2.00

0944312022
ref: 18

SPRING

€ 3.50

0920006037
ref: 19

PIN

€ 5.00

0411120158
ref: 20

PIN

€ 1.50

0832221068
ref: 21

WASHER

€ 2.00

0110706208
ref: 22

BOLT

€ 2.00

0831011068
ref: 23

NUT

€ 2.50

STAND (E16,E18,E22,E25,E26)
