CRANKSHAFT

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

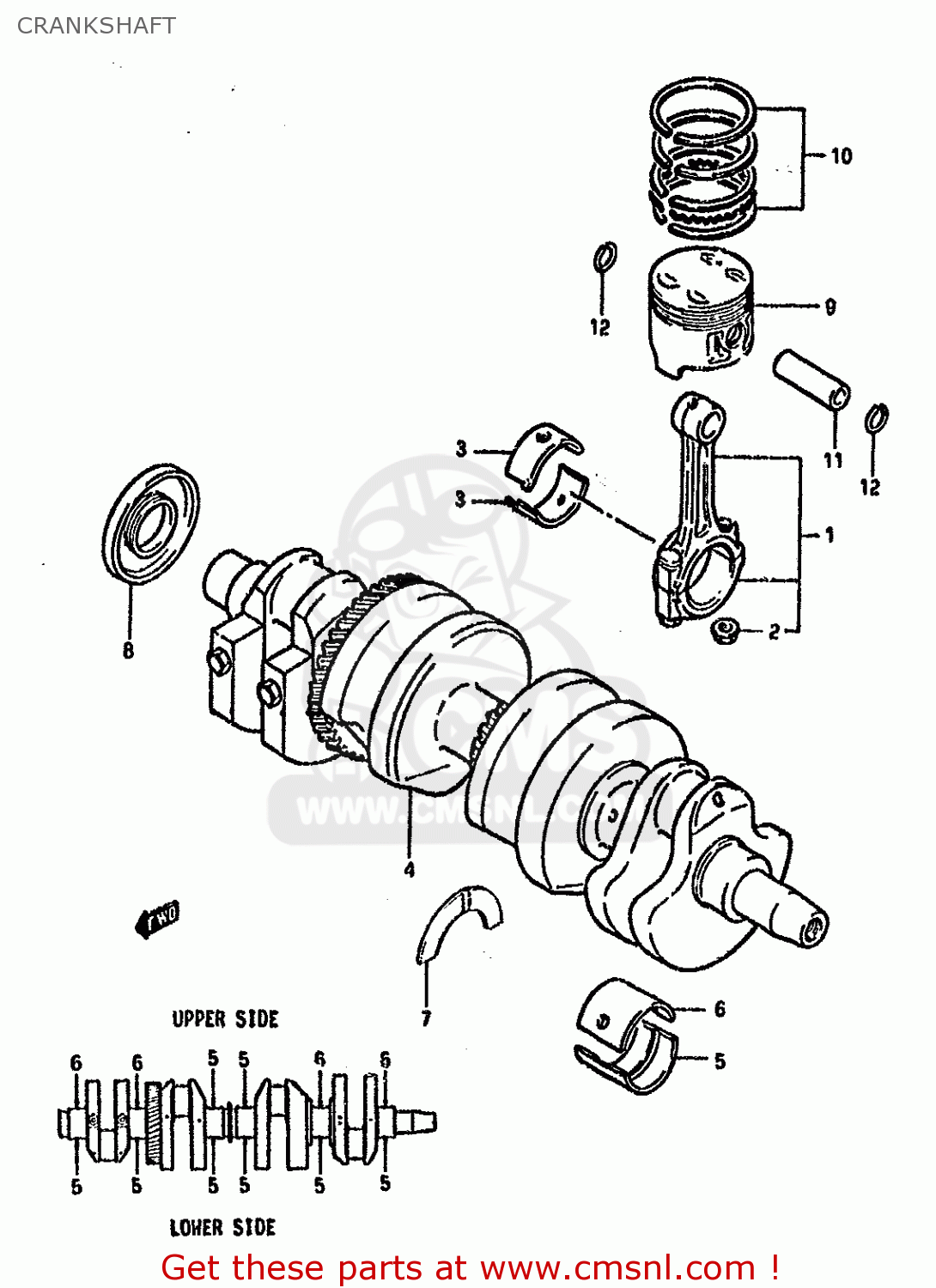

Crankshaft diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

CRANKSHAFT GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
CRANKSHAFT GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
CRANKSHAFT GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
prices are in EUR
ref
part #
description
quantity
1
1216045500
ref: 1
ROD ASSEMBLY,CONNECTING
1216045500
€ 91.50
2
0915908033
ref: 2
NUT
0915908033
€ 2.50
3-1
1216445500010
ref: 3-1
BEARING,CRANK PIN
1216445500010
€ 19.00
3-2
1216445500020
ref: 3-2
BEARING,CRANK PIN
1216445500020
€ 19.00
3-3
1216445500030
ref: 3-3
BEARING,CRANK PIN
€ 19.00
3-4
1216445500040
ref: 3-4
BEARING,CRANK PIN
1216445500040
€ 19.00
3-5
1216445500025
ref: 3-5
OPT
BEARING,CRANK PIN
€ 12.00
3-6
1216445500050
ref: 3-6
OPT
BEARING,CRANK PIN
€ 10.50
4
1222045500
ref: 4
CRANKSHAFT
€ 1,178.00
5-1
1222945400010
ref: 5-1
METAL CRANKSHAFT
1222945400010
€ 10.00
5-2
1222945400020
ref: 5-2
METAL CRANKSHAFT
1222945400020
€ 10.00
5-3
1222945400030
ref: 5-3
METAL CRANKSHAFT
1222945400030
€ 10.00
5-4
1222945400040
ref: 5-4
METAL CRANKSHAFT
1222945400040
€ 9.00
5-5
1222945400025
ref: 5-5
OPT
BEARING,CRANKSHAFT(US:0.25)
1222945400025
€ 11.50
5-6
1222945400050
ref: 5-6
OPT
BEARING,CRANKSHAFT(US:0.5)
1222945400050
€ 10.50
6-1
1222945410010
ref: 6-1
METAL CRANKSHAFT
1222945410010
€ 12.00
6-2
1222945410020
ref: 6-2
METAL CRANKSHAFT
1222945410020
€ 12.50
6-3
1222945410030
ref: 6-3
METAL CRANKSHAFT
1222945410030
€ 12.00
6-4
1222945410040
ref: 6-4
METAL CRANKSHAFT
1222945410040
€ 11.50
6-5
1222945410025
ref: 6-5
OPT
METAL CRANKSHAFT
1222945410025
€ 11.50
6-6
1222945410050
ref: 6-6
OPT
METAL CRANKSHAFT
1222945410050
€ 10.50
7-1
1222845401
ref: 7-1
PLATE,CRANK THRUST
1222845401
€ 8.00
7-2
1222845402
ref: 7-2
PLATE,CRANK THRUST
1222845402
€ 9.00
7-3
1222845403
ref: 7-3
PLATE,CRANK THRUST
1222845403
€ 8.00
8
0928330031
ref: 8
OIL SEAL
0928330031
€ 15.00
9-1
1211145410
ref: 9-1
PISTON
1211145410
€ 68.00
9-2
1211145410050
ref: 9-2
OPT
PISTON
€ 89.00
9-3
1211145410100
ref: 9-3
OPT
PISTON
1211145410100
€ 72.00
10-1
1214045410
ref: 10-1
RING SET,PISTON
1214045410
€ 62.50
10-2
1214045410050
ref: 10-2
OPT
RING SET,PISTON (OS:0.5)
1214045410050
€ 99.50
10-3
1214045410100
ref: 10-3
OPT
RING SET,PISTON (OS:1.0)
1214045410100
€ 89.00
11
1215145500
ref: 11
PIN,PISTON (18MM)
€ 14.00
12
0938118002A
ref: 12
CIRCLIP,PISTON PIN
0938118002A
€ 1.50
