FUEL COCK

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

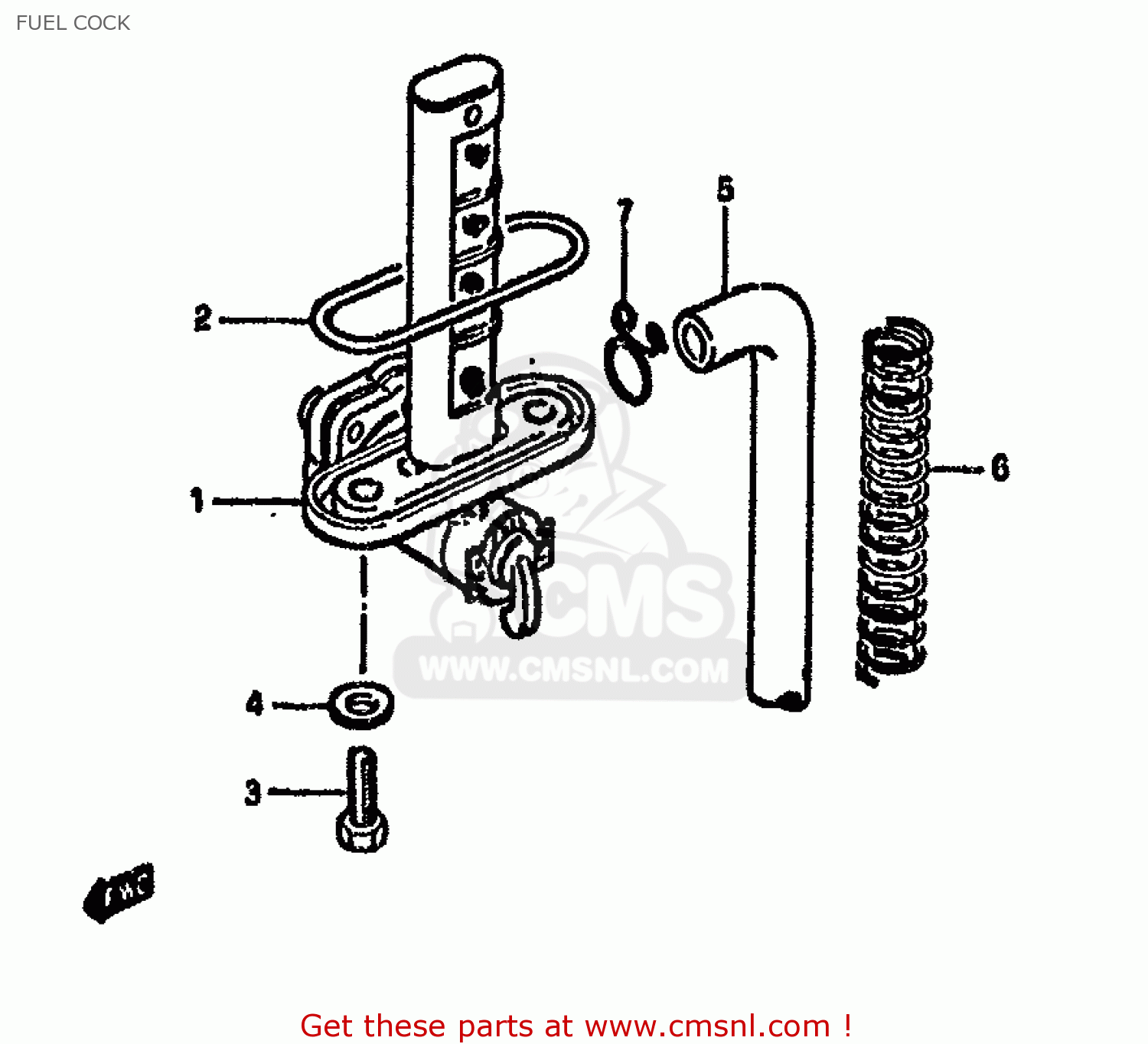

Fuel cock diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

FUEL COCK GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

FUEL COCK GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

prices are in EUR

ref

part #

description

quantity

1

4430045370
ref: 1

COCK ASSEMBLY,FUEL

€ 104.50

2

4434849170
ref: 2

O RING

€ 3.50

3

0912806006
ref: 3

BOLT(6X20)

€ 2.00

4

0916806010
ref: 4

GASKET

€ 2.00

5

0934307091
ref: 5

HOSE

€ 17.50

6

0944013020
ref: 6

SPRING

€ 14.50

7

0940110403
ref: 7

CLIP

€ 7.00
