FUEL TANK

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

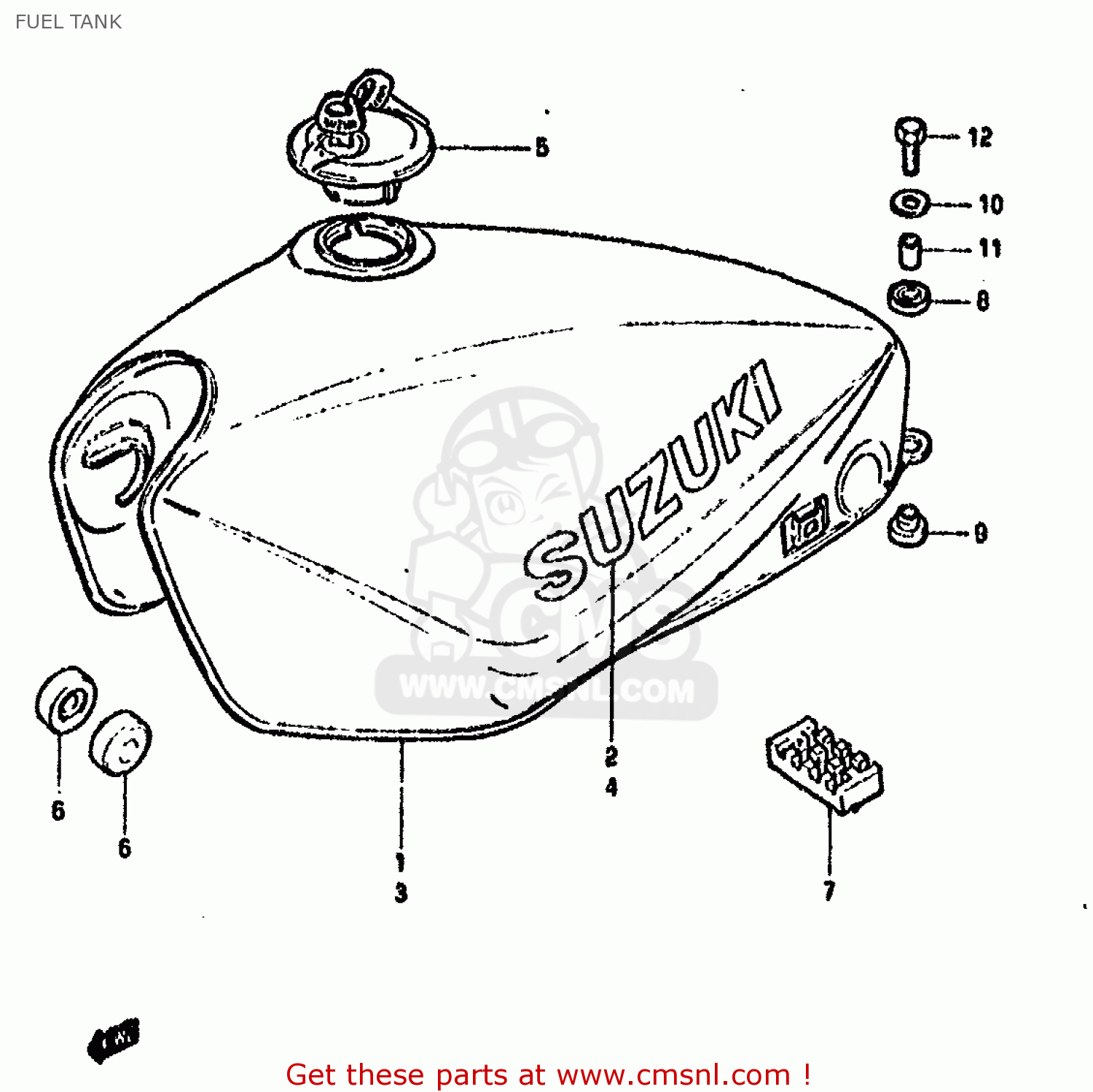

Fuel tank diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

prices are in EUR

ref

part #

description

quantity

441004930013L
ref: 1

TANK, FUEL (SILVER)

€ 646.00

681113320005F
ref: 2

EMBLEM(ORANGE)

€ 15.50

441004930011W
ref: 3

TANK, FUEL (RED)

€ 575.50

6811133200064
ref: 4

EMBLEM(WHITE)

€ 13.00

4420034301KEY
ref: 5

CAP SET,FUEL TANK

€ 135.50

0932910007
ref: 6

CUSHION

€ 3.00

4454134500
ref: 7

CUSHION,FUEL TANK CTR

€ 13.00

0932014013
ref: 8

CUSHION

€ 3.00

0932010020
ref: 9

CUSHION

€ 4.00

0916006004
ref: 10

WASHER (6.5X24X1.6)

€ 1.50

0918006072
ref: 11

SPACER

€ 2.00

0110706308
ref: 12

BOLT

€ 2.50
