FOOTREST

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

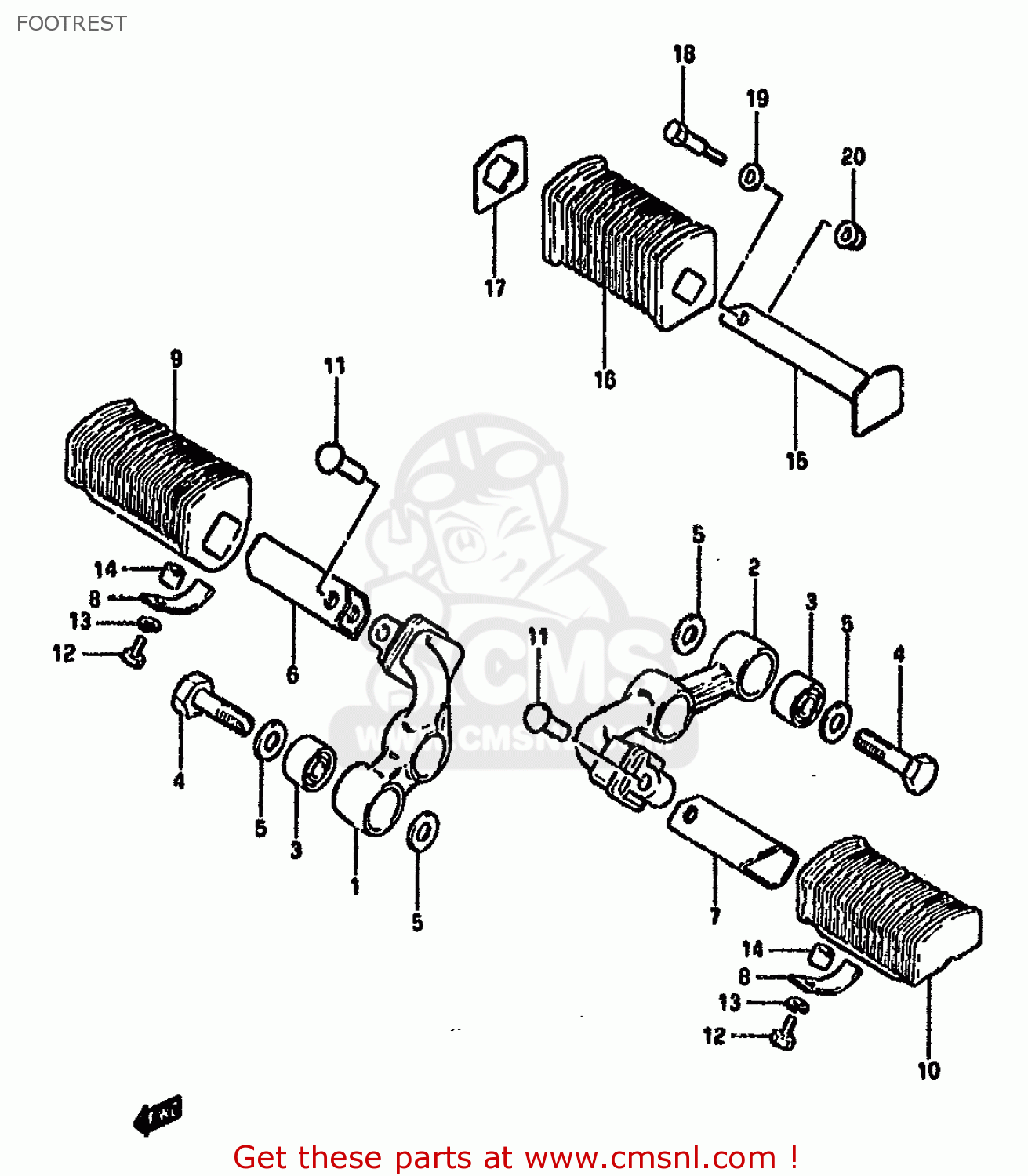

Footrest diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

FOOTREST GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
FOOTREST GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
FOOTREST GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
prices are in EUR
ref
part #
description
quantity
1
4351049300
ref: 1
BAR, FOOTREST RH
4351049300
€ 80.00
2
4352049300
ref: 2
BAR, FOOTREST LH
4352049300
€ 56.00
3
0931910008
ref: 3
BUSH
0931910008
€ 8.00
4
0910410012
ref: 4
BOLT
0910410012
€ 3.50
5
0916010057
ref: 5
WASHER
0916010057
€ 2.00
6
4353049300
ref: 6
HOLDER, COVER RH
4353049300
€ 7.50
7
4354049300
ref: 7
HOLDER, COVER LH
4354049300
€ 10.50
8
4357149300
ref: 8
PLATE, FOOTREST STOPPER
4357149300
€ 2.00
9
4355149300
ref: 9
RUBBER,FR FOOTREST,R
4355149300
€ 14.50
10
4356149300
ref: 10
RUBBER,FR FOOTREST,L
4356149300
€ 21.50
11
0501108229
ref: 11
RIVET
0501108229
€ 1.50
12
0110706168
ref: 12
BOLT, UPPER
€ 3.00
13
0832121068
ref: 13
LOCK WASHER
0832121068
€ 2.50
14
0918006082
ref: 14
SPACER(6.5X10.5X6.5)
0918006082
€ 2.50
15-1
4361049300
ref: 15-1
BAR, RH
4361049300
€ 16.00
15-2
4362049300
ref: 15-2
BAR, LH
4362049300
€ 16.50
16
4361249201
ref: 16
RUBBER,PILLION FOOTREST
4361249201
€ 30.50
17
4363145001
ref: 17
WASHER,PILLION FOOTREST RUBBER
4363145001
€ 16.00
18-1
0911106034
ref: 18-1
BOLT(6X40)
€ 4.50
18-2
0911106038
ref: 18-2
BOLT(6X45)
0911106038
€ 4.00
19
0832211088
ref: 19
WASHER
0832211088
€ 2.00
20
0831931068
ref: 20
NUT
0831931068
€ 2.50
