MASTER CYLINDER

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

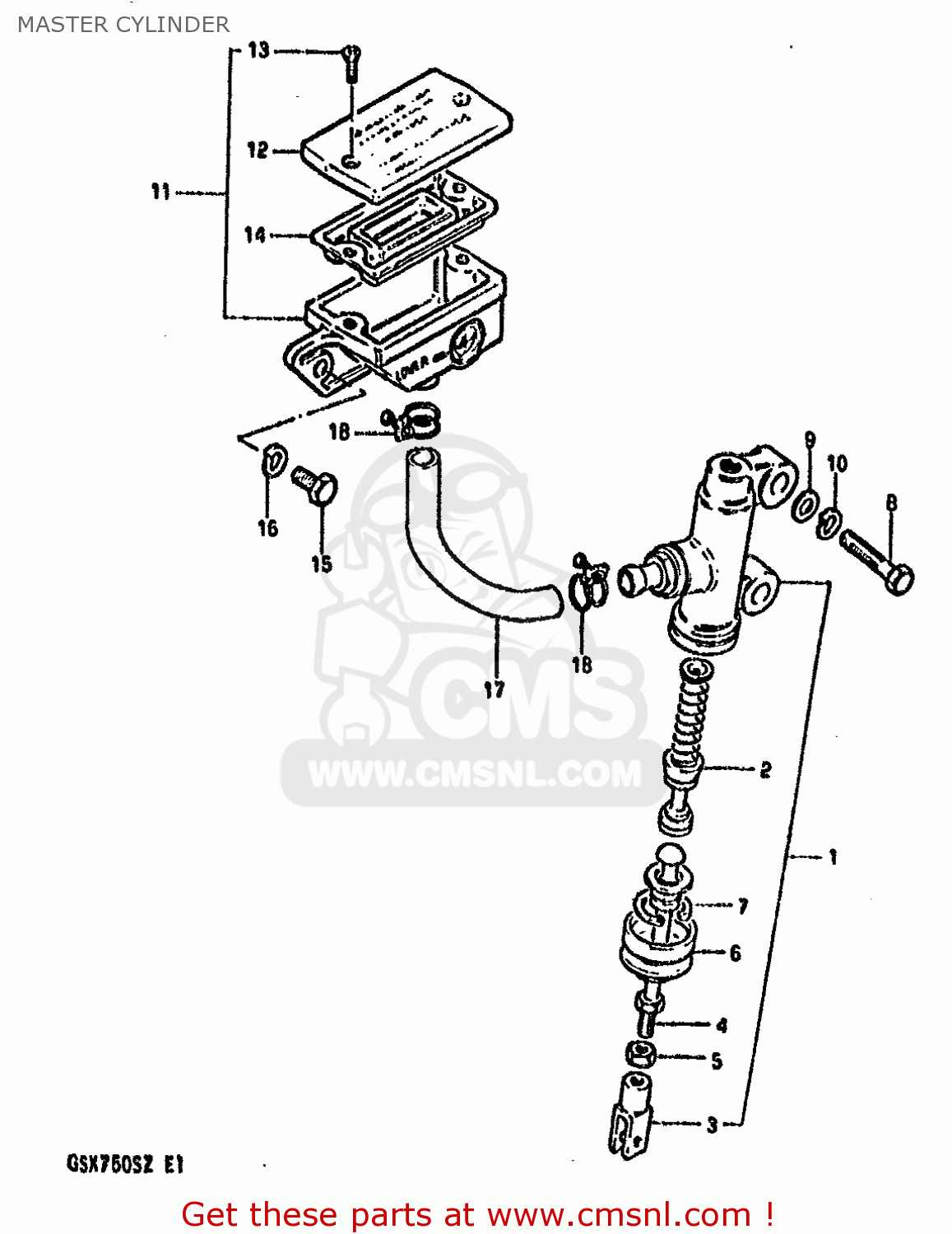

Master cylinder diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

prices are in EUR

ref

part #

description

quantity

6960047010
ref: 1

CYLINDER ASSEMBLY,REAR MASTER

€ 182.00

6960045820
ref: 2

PISTON/CUP SET

€ 53.00

6969247010
ref: 3

YOKE

€ 9.00

6967045010
ref: 4

LOD,PUSH

€ 11.50

6969347010
ref: 5

NUT,MASTER CYLINDER

€ 1.50

6969145001
ref: 6

BOOT

€ 6.50

5116270040
ref: 7

CIRCLIP

€ 3.00

0110708308
ref: 8

BOLT (8X30)

€ 2.50

0832211088
ref: 9

WASHER

€ 2.00

0832121088
ref: 10

LOCK WASHER

€ 2.00

6974049300
ref: 11

RESERVOIR TANK ASSY

€ 84.00

6966949300
ref: 12

CAP

€ 30.00

6968949300
ref: 13

SCREW

€ 1.50

6966749300
ref: 14

6966749300

0110706168
ref: 15

BOLT, UPPER

€ 3.00

0832121068
ref: 16

LOCK WASHER

€ 2.50

6973149300
ref: 17

HOSE,RESERVOIR TANK

€ 5.50

0940016302
ref: 18

CLAMP

€ 4.50

MASTER CYLINDER

all assemblies
