ELECTRICAL

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

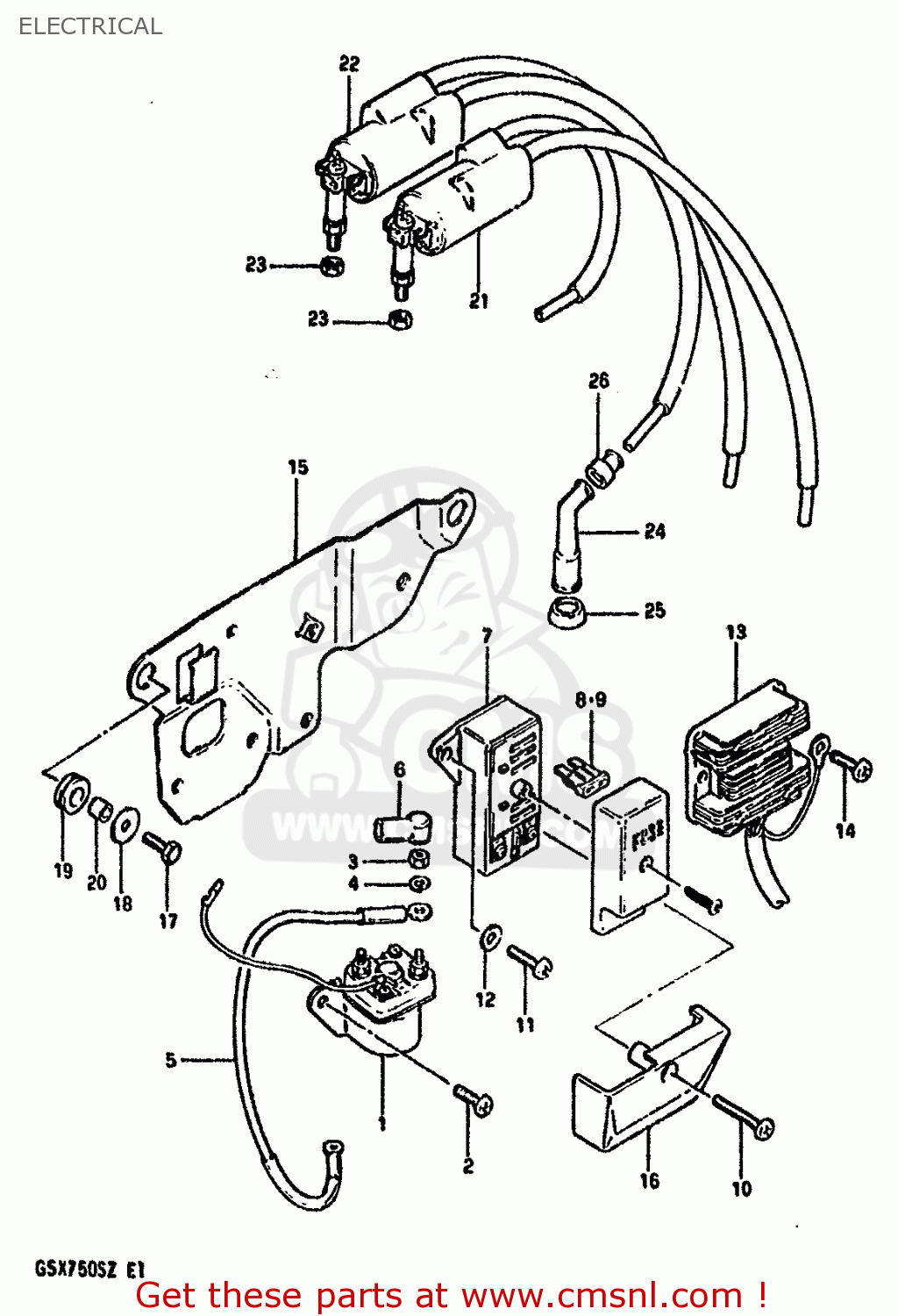

Electrical diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

ELECTRICAL GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
ELECTRICAL GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
ELECTRICAL GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
prices are in EUR
ref
part #
description
quantity
1
3180049320
ref: 1
RELAY, STARTING MOTOR
€ 105.00
2
0211206108
ref: 2
SCREW
0211206108
€ 1.50
3
0831022068
ref: 3
NUT 6MM
€ 2.50
4
0832121068
ref: 4
LOCK WASHER
0832121068
€ 2.50
5
3385044110
ref: 5
CORD,BATTERY MINUS
€ 8.50
6
3186135100
ref: 6
CAP,STARTER RELAY
3186135100
€ 4.50
7
3674049300
ref: 7
BOX ASSEMBLY,FUSE
€ 69.50
8
0948110101
ref: 8
FUSE(10A)
0948110101
€ 2.50
9
0948115101
ref: 9
FUSE(15A)
0948115101
€ 1.50
10
0211206358
ref: 10
SCREW (6X35)
€ 2.50
11
0211206168
ref: 11
SCREW
0211206168
€ 2.50
12
0832221068
ref: 12
WASHER
0832221068
€ 2.00
13
3280045250
ref: 13
RECTIFIER, REGULATOR
€ 397.00
14
0211206128
ref: 14
SCREW 6X12
0211206128
€ 2.00
15-1
4741049310
ref: 15-1
HOLDER COMP,ELECTRONIC PARTS
4741049310
€ 10.00
15-2
4741049301
ref: 15-2
E22
PLATE, PARTS HOLDER
€ 0.00
16
4741949301
ref: 16
COVER,ELECTRIC PARTS HOLDER
4741949301
€ 5.50
17
0110706168
ref: 17
BOLT, UPPER
€ 3.00
18
0916006063
ref: 18
WASHER (6.5X22X1.6)
0916006063
€ 2.00
19
0932008013
ref: 19
CUSHION
0932008013
€ 4.00
20
0918007005
ref: 20
SPACER (7X9X7)
0918007005
€ 2.50
21
3341049210
ref: 21
COIL ASSEMBLY,IGNITION
€ 182.00
22
3342049210
ref: 22
COIL ASSEMBLY,IGNITION
3342049210
€ 182.00
23
0831011068
ref: 23
NUT
0831011068
€ 2.50
24
3351045010
ref: 24
CAP ASSY,SPARK PLUG
3351045010
€ 23.00
25
3354132410
ref: 25
SEAL,SPARK PLUG
€ 7.00
26
3354298000
ref: 26
SEAL,SPARK PLU
3354298000
€ 4.50
