FRAME

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

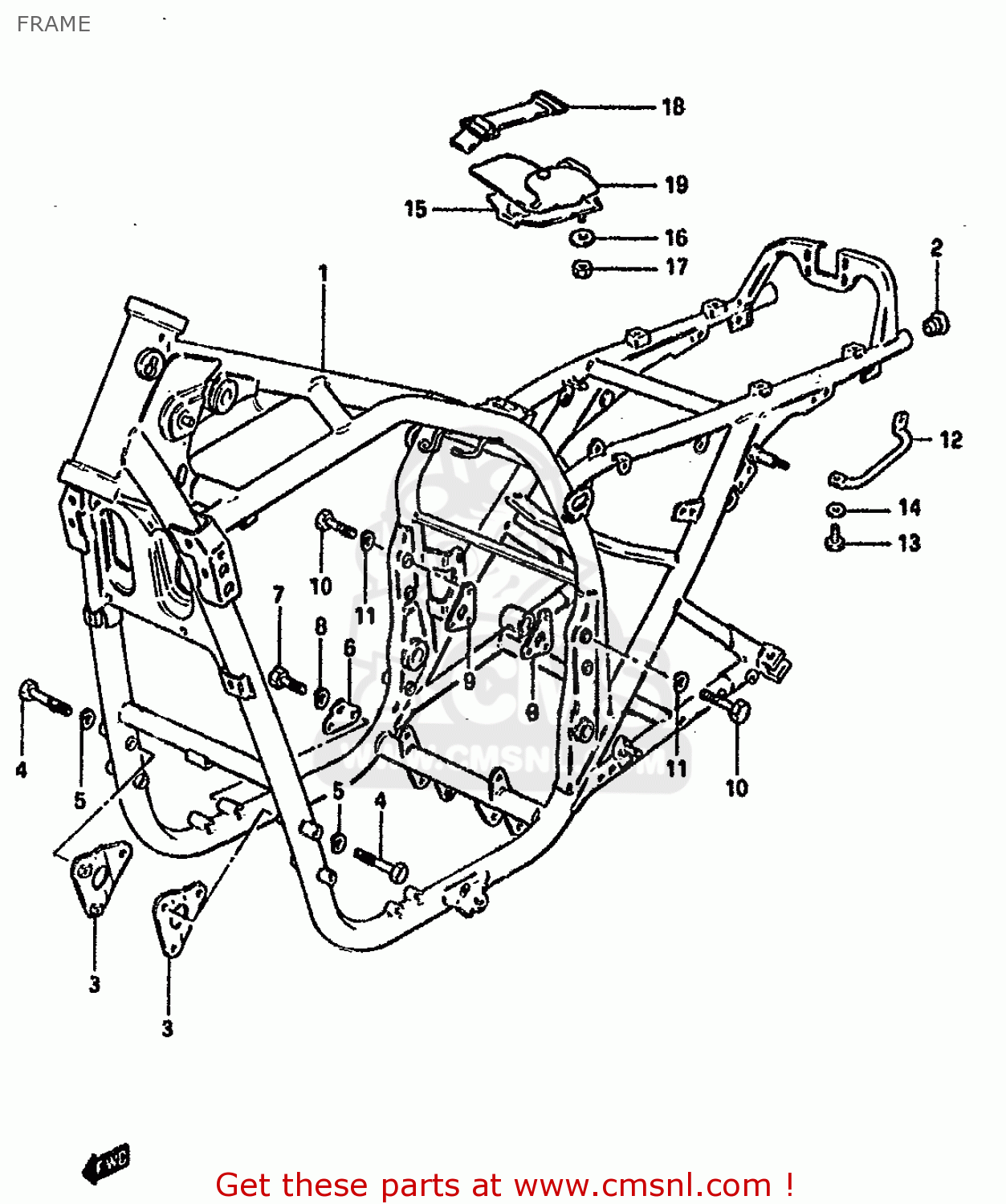

Frame diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

FRAME GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
FRAME GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
FRAME GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
prices are in EUR
ref
part #
description
quantity
1-1
411004550113L
ref: 1-1
FRAME (SILVER)
€ 0.00
1-2
411004554113L
ref: 1-2
E15,E17
FRAME (SILVER)
€ 0.00
1-3
411004553113L
ref: 1-3
E16,E18
FRAME (SILVER)
€ 0.00
1-4
411004552213L
ref: 1-4
E22,E25,E26
FRAME (SILVER)
€ 0.00
2
0925022002
ref: 2
CAP(OD:26)
0925022002
€ 2.00
3
419104920013L
ref: 3
PLATE,ENGINE MOUNTING
419104920013L
€ 18.50
4
0910408021
ref: 4
BOLT(8X65)
0910408021
€ 7.00
5
0832121088
ref: 5
LOCK WASHER
0832121088
€ 2.00
6
419214900013L
ref: 6
PLATE,ENG MTG NO.2
419214900013L
€ 30.00
7
0910408019
ref: 7
BOLT 8X16
0910408019
€ 2.00
8
0832121088
ref: 8
LOCK WASHER
0832121088
€ 2.00
9
419404900013L
ref: 9
PLATE,ENG MTG NO.4
419404900013L
€ 60.00
10
0910408020
ref: 10
BOLT
€ 4.50
11
0832121088
ref: 11
LOCK WASHER
0832121088
€ 2.00
12
4161049301
ref: 12
GRIP,STAND
4161049301
€ 26.50
13
0110708168
ref: 13
BOLT
€ 2.00
14
0832211088
ref: 14
WASHER
0832211088
€ 2.00
15
4155049200
ref: 15
HOLDER,TOOL
€ 10.00
16
0916006021
ref: 16
WASHER(6.5X30X1.6)
0916006021
€ 3.00
17
0831011068
ref: 17
NUT
0831011068
€ 2.50
18
0946200072
ref: 18
BAND
0946200072
€ 3.50
19
0980000239
ref: 19
TOOL SET
€ 50.00
