REAR FENDER

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

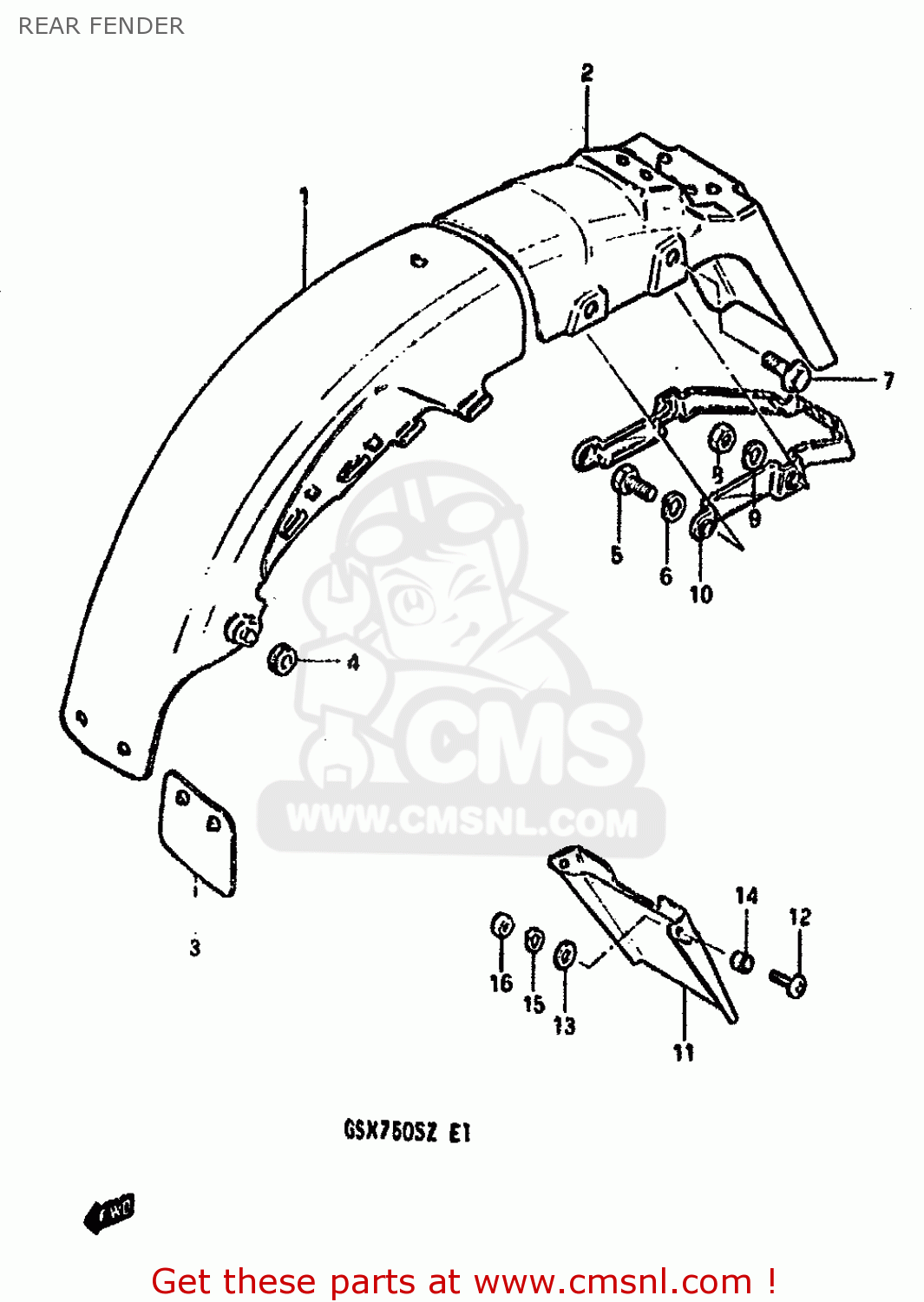

Rear fender diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

prices are in EUR

ref

part #

description

quantity

6311249003
ref: 1

FENDER,REAR

€ 82.50

2-1

6311349300
ref: 2-1

BODY,RR FENDER RR

€ 77.00

2-2

6311349310
ref: 2-2
E15,E16,E18

FENDER, REAR

€ 77.00

2-3

6311349330
ref: 2-3
E17,E22,E25

FENDER, REAR

€ 82.50

6341131900
ref: 3

GUIDE,RR FENDER MUD

€ 8.00

0932008013
ref: 4

CUSHION

€ 4.00

0110706168
ref: 5

BOLT, UPPER

€ 3.00

0832121068
ref: 6

LOCK WASHER

€ 2.50

0151708258
ref: 7

BOLT

€ 2.50

0831012088
ref: 8

NUT

€ 2.00

0832121088
ref: 9

LOCK WASHER

€ 2.00

6312049300
ref: 10

REINFORCEMENT,RR FENDER

€ 70.00

6331149300
ref: 11
E15,E16,E18

EXTENSION

€ 26.50

0912506009
ref: 12
E15,E16,E18

SCREW (6X15)

€ 3.00

0916006039
ref: 13
E15,E16,E18

WASHER (6.5X18X1.6)

€ 2.00

0918006001
ref: 14
E15,E16,E18

SPACER(6.2X8.3X5.7)

€ 2.00

0832121068
ref: 15
E15,E16,E18

LOCK WASHER

€ 2.50

0831011068
ref: 16
E15,E16,E18

NUT

€ 2.50
