RIGHT HANDLE SWITCH

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

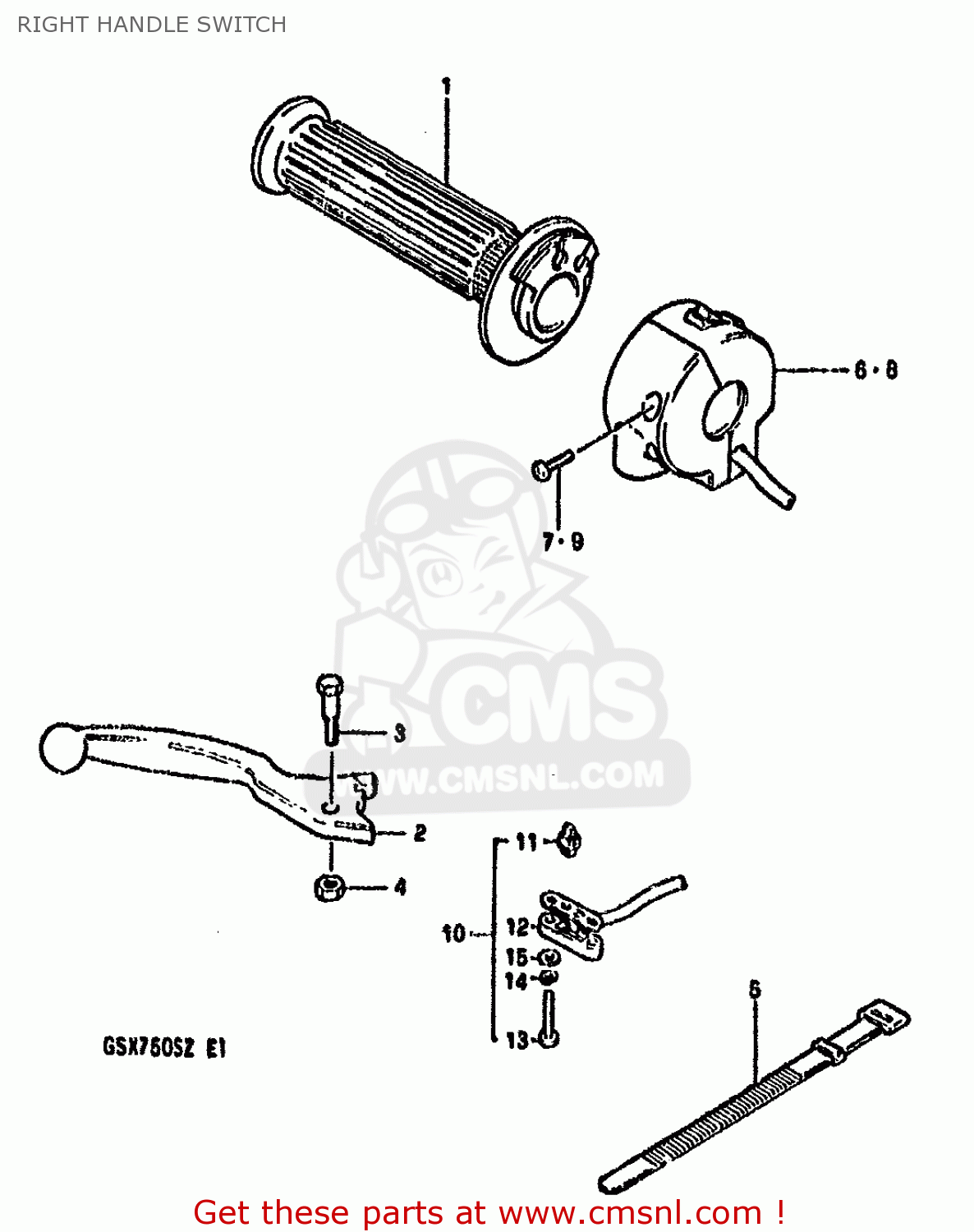

Right handle switch diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

prices are in EUR

ref

part #

description

quantity

5711044100
ref: 1

GRIP,THROTTLE

€ 26.00

5742049101
ref: 2

LEVER,BRAKE

€ 36.50

5743118621
ref: 3

BOLT

€ 8.00

0831921068
ref: 4

NUT 6MM

€ 2.00

0940712402
ref: 5

CLAMP(L:120)

€ 3.00

3720047510
ref: 6

SWITCH ASSY, HANDLE RH

€ 164.50

3759149210
ref: 7

SCREW

€ 2.50

3720047520
ref: 8
E4,E15,E16,E17,E18,E

SWITCH ASSY, HARDLE RH

€ 145.50

3759149210
ref: 9
E4,E15,E16,E17,E18,E

SCREW

€ 2.50

5746049300
ref: 10
E4,E6,E15,E16,E17,E1

SWITCH ASSEMBLY

€ 40.00

5746518601
ref: 11
E4,E6,E15,E16,E17,E1

CONTACT,SWITCH

€ 4.50

5748133010
ref: 12
E4,E6,E15,E16,E17,E1

COVER,FR BK TERMINAL BASE

€ 19.50

0912503105
ref: 13
E4,E6,E15,E16,E17,E1

SCREW

€ 2.50

0832121038
ref: 14
E4,E6,E15,E16,E17,E1

LOCK WASHER

€ 1.50

0832221038
ref: 15
E4,E6,E15,E16,E17,E1

WASHER

€ 2.00
