LEFT HANDLE SWITCH

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

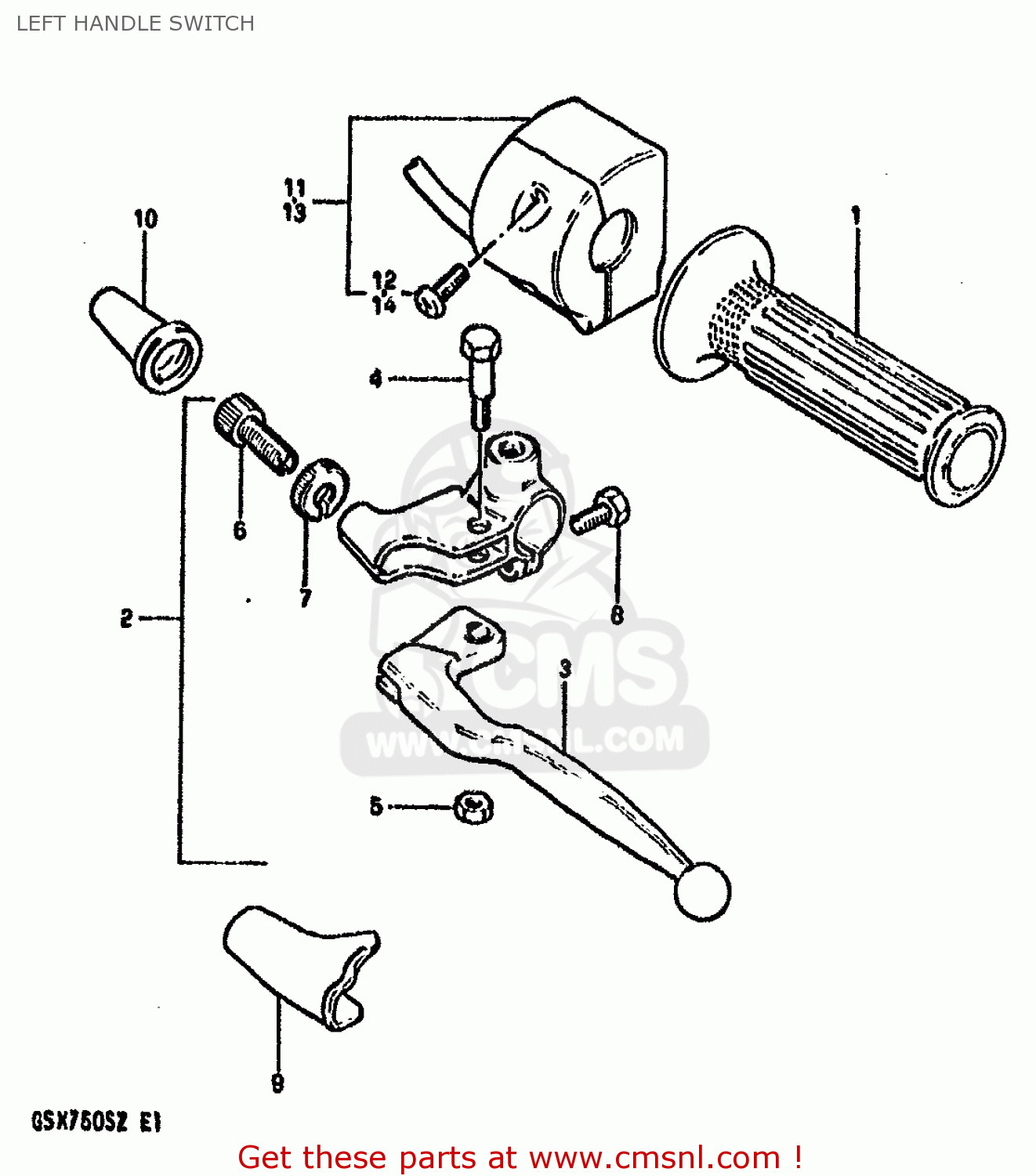

Left handle switch diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

prices are in EUR

ref

part #

description

quantity

5721144100
ref: 1

GRIP,LEFT

€ 9.00

5750049102
ref: 2

LEVER ASSEMBLY

€ 49.50

5762049101
ref: 3

LEVER,CLUTCH

€ 28.50

5743111011
ref: 4

BOLT,LEVER

€ 6.00

0831921068
ref: 5

NUT 6MM

€ 2.00

5744111010
ref: 6

ADJUSTER,CABLE

€ 8.00

5744211010
ref: 7

NUT,CABLE ADJUSTER

€ 4.00

5745149100
ref: 8

BOLT,CLUTCH LEVER HOLDER

€ 3.00

5766131000
ref: 9

COVER,CLUTCH LEVER

€ 5.50

5827331000
ref: 10

BOOT,CLUTCH CABLE

€ 2.50

3740049311
ref: 11

SWITCH ASSY, HANDLE LH

€ 165.00

0211205168
ref: 12

SCREW

€ 2.50

13-1

3740049341
ref: 13-1
E22

SWITCH ASSY, HANDLE LH

€ 149.00

13-2

3740049351
ref: 13-2
E34

SWITCH ASSY, HANDLE LH

€ 165.00

0211205168
ref: 14
E22,E34

SCREW

€ 2.50

LEFT HANDLE SWITCH

all assemblies
