HEADLAMP

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

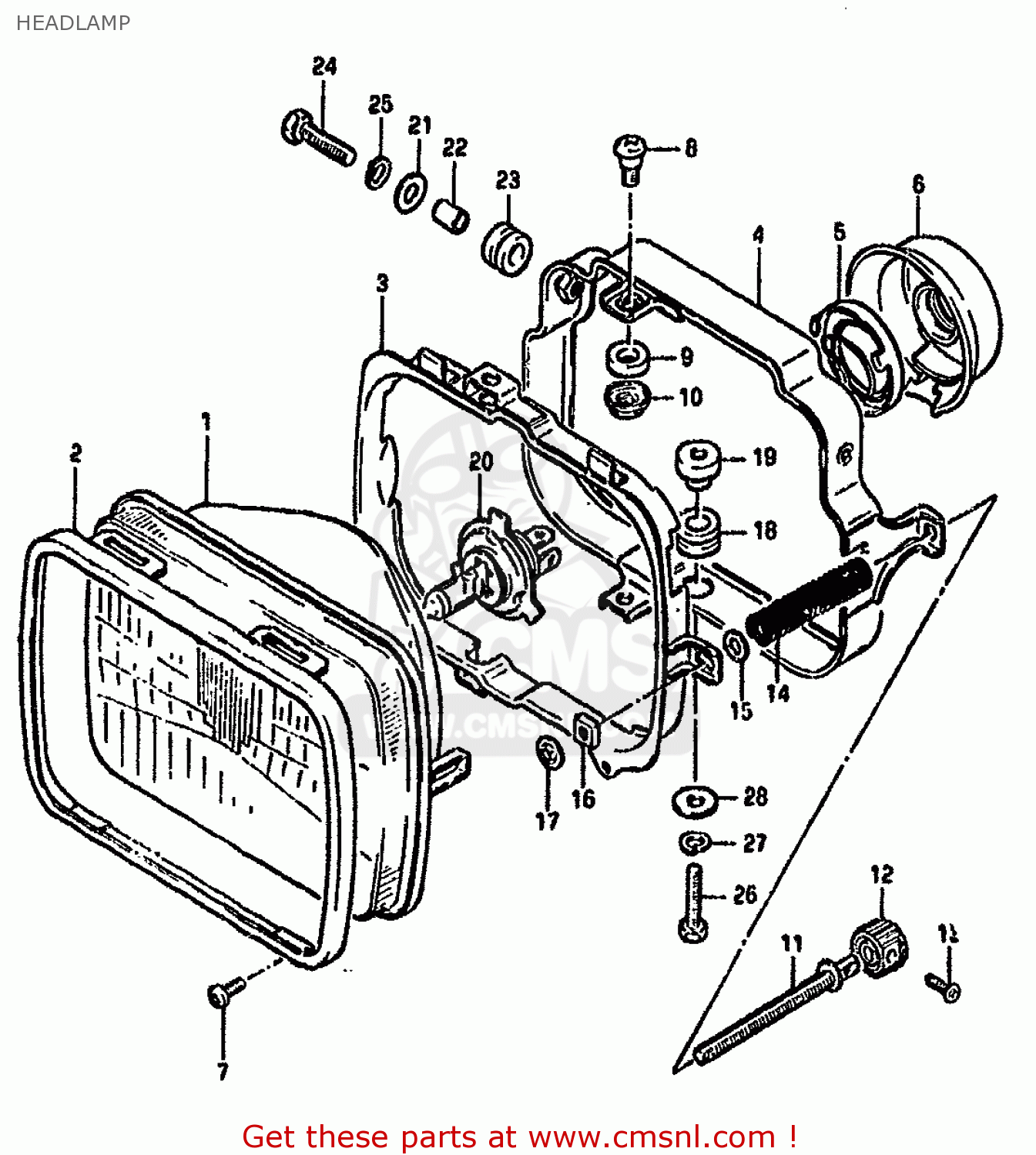

Headlamp diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

HEADLAMP GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
HEADLAMP GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
HEADLAMP GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39
prices are in EUR
ref
part #
description
quantity
0
3510049330999
ref: 0
HEADLAMP ASSEMBLY
€ 224.50
1
3512149230
ref: 1
LAMP UNIT
3512149230
€ 114.50
2
3512749320
ref: 2
RETAINER
3512749320
€ 37.50
3
3513049320
ref: 3
RING,MOUNTING
3513049320
€ 30.00
4
3538149320
ref: 4
HOUSING
3538149320
€ 42.50
5
3513649320
ref: 5
TO 35136-49200
HOLDER, BULB
€ 8.50
6
3517349200
ref: 6
COVER,HEADLAMP SOCKET
3517349200
€ 12.50
7
0211203088
ref: 7
SCREW
€ 1.50
8
3513625611
ref: 8
SCREW
3513625611
€ 4.00
9
3513345600
ref: 9
SPACER
3513345600
€ 3.50
10
3513525611
ref: 10
NUT,ADJUSTING
3513525611
€ 2.50
11
3515149320
ref: 11
SCREW,ADJUSTING
3515149320
€ 16.50
12
3516149320
ref: 12
KNOB,ADJUSTER
3516149320
€ 6.00
13
0211203108
ref: 13
SCREW
0211203108
€ 1.50
14
3515449320
ref: 14
SPRING
3515449320
€ 3.00
15
3515749320
ref: 15
WASHER
€ 2.00
16
3515249320
ref: 16
NUT
€ 0.00
17
3515249330
ref: 17
NUT,HEADLAMP ADJUSTER
€ 2.00
18
3538249321
ref: 18
CUSHION
€ 0.00
19
3538349321
ref: 19
NUT
€ 0.00
20
0947112060
ref: 20
EXECUTED LOCALLY
BULB(12V60/55W,H4)
0947112060
€ 8.00
21
0916006007
ref: 21
WASHER
0916006007
€ 2.00
22
0918006044
ref: 22
SPACER (6.1X8X9.5)
0918006044
€ 2.50
23
0932008001
ref: 23
CUSHION
0932008001
€ 3.50
24
0110706258
ref: 24
BOLT
€ 2.00
25
0832121068
ref: 25
LOCK WASHER
0832121068
€ 2.50
26
0912806030
ref: 26
SCREW(6X20)
€ 0.00
27
0832121068
ref: 27
LOCK WASHER
0832121068
€ 2.50
28
0832221068
ref: 28
WASHER
0832221068
€ 2.00
