STARTER CLUTCH

GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

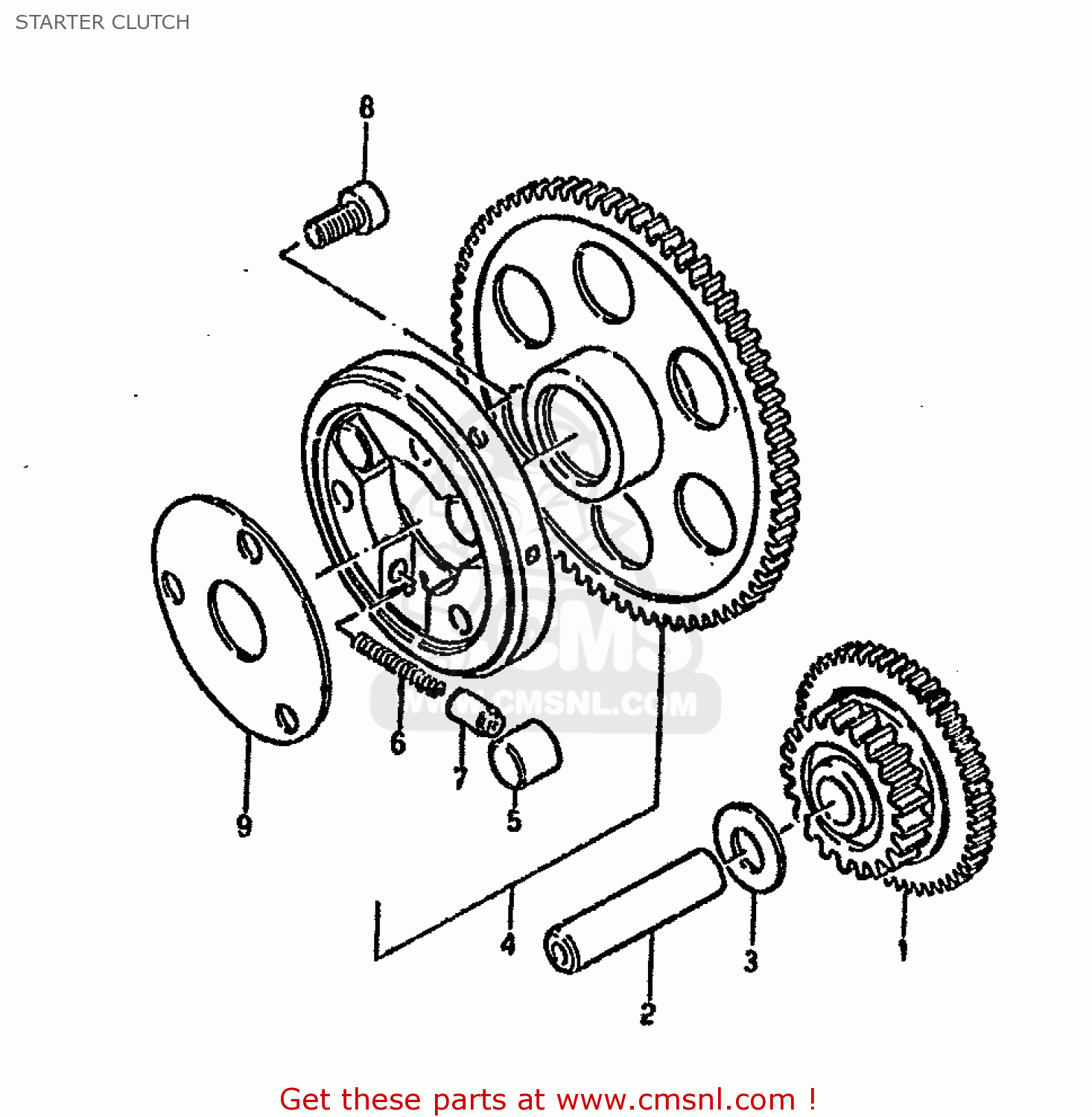

Starter clutch diagram GSX750S KATANA 1982 (Z) 1 2 4 6 15 16 17 18 21 22 24 25 26 30 39

prices are in EUR

ref

part #

description

quantity

1261145000
ref: 1

GEAR,STARTER IDLE

€ 65.00

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

0821114225
ref: 3

WASHER

€ 3.00

1260045830
ref: 4

CLUTCH SET,STARTER

€ 132.50

0926115001
ref: 5

ROLLER(15X13)

€ 3.50

0944004015
ref: 6

SPRING

€ 2.50

1263331000
ref: 7

PIECE,PUSH

€ 9.00

0910608006
ref: 8

BOLT

€ 3.00

1264945000
ref: 9

SHIM,STARTER CLUTCH HUB

€ 7.00
