AIR CLEANER (MODEL N/P E22)
RGV250 1996 (T) (E24)

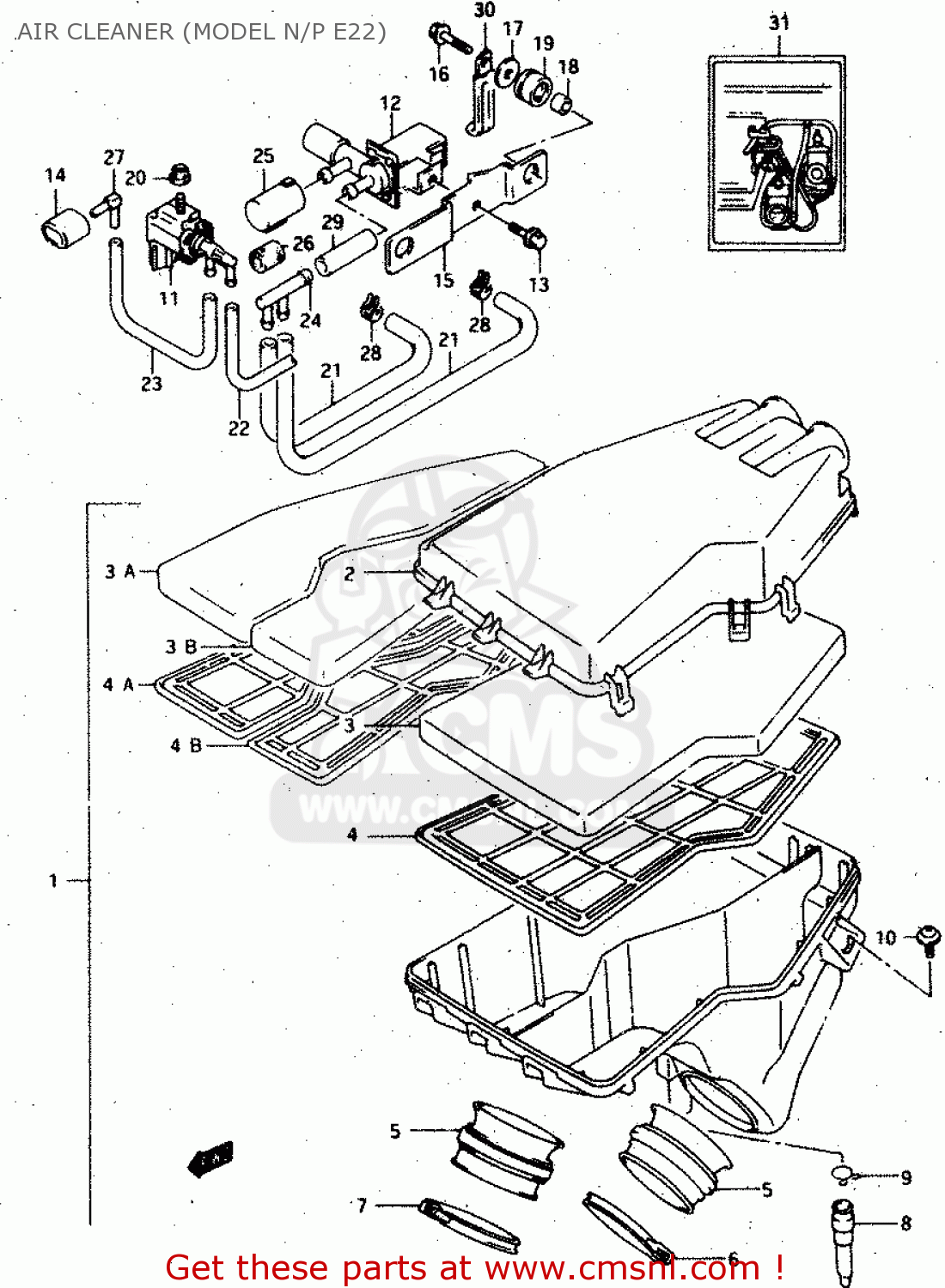

Air cleaner (model n/p e22) diagram RGV250 1996 (T) (E24)
AIR CLEANER (MODEL N/P E22) RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
1370022D00
ref: 1
MODEL N
CLEANER ASSY, AIR
€ 179.50
1
1370023D10
ref: 1
MODEL P
CLEANER ASSY, AIR
€ 179.50
2
1374022D00
ref: 2
MODEL N
CAP,AIR CLERNER
€ 35.50
2
1374023D10
ref: 2
MODEL P
CAP,AIR CLEANE
€ 31.00
3
1378112C01
ref: 3
MODEL N
FILTER
€ 20.00
3A
1378123D10
ref: 3A
MODEL P
FILTER,AIR,R
€ 20.00
3B
1378223D10
ref: 3B
MODEL P
FILTER,AIR,L
€ 18.50
4
1381112C03
ref: 4
MODEL N
HOLDER,FILTER
€ 25.00
4A
1381123D10
ref: 4A
MODEL P
HOLDER,FILTER,R
€ 18.00
4B
1381223D10
ref: 4B
MODEL P
HOLDER,FILTER,L
€ 16.50
5
1388112C00
ref: 5
TUBE,OUTLET
€ 18.00
6
1382612C01
ref: 6
CLAMP
€ 6.00
7
1382712C00
ref: 7
CLAMP
€ 6.50
8
1387011417
ref: 8
MODEL M/N
DRAIN TUBE
€ 13.50
8
1387011398
ref: 8
MODEL P
TUBE,DRAIN
€ 13.50
9
1382400A00
ref: 9
CLIP
€ 2.50
10
0913606017
ref: 10
SCREW(6X16)
€ 2.50
11
1316022D00
ref: 11
VALVE ASSY,MAIN AIR SOLENOID
€ 121.50
12
9516160D00
ref: 12
VSV,IDLE UP
€ 153.50
13
0151706106
ref: 13
BOLT
€ 2.50
14
1318022D10
ref: 14
FILTER,SOLENOID VALVE
€ 4.50
15
1316522D70
ref: 15
BRACKET, SOLENOID VALVE
€ 0.00
16
0151706206
ref: 16
BOLT 6X20
€ 2.50
17
0916006057
ref: 17
WASHER
€ 2.00
18
0918006137
ref: 18
SPACER(9.2X9X6.5)
€ 2.50
19
0932009036
ref: 19
CUSHION
€ 4.00
20
0831616066
ref: 20
NUT
€ 2.50
21
0935450103600
ref: 21
L:600->310
HOSE,VACUUM
€ 7.50
22
0935240703600
ref: 22
L:600->280
HOSE(4X7X600)
€ 3.00
23
0935240703600
ref: 23
L:600->110
HOSE(4X7X600)
€ 3.00
24
0936706004
ref: 24
SEPARATOR
€ 0.00
25
1318022D70
ref: 25
CASE, FILTER
€ 0.00
26
1378900010
ref: 26
FILTER
€ 0.00
27
0936704005
ref: 27
UNION
€ 4.00
28
0940109401
ref: 28
CLAMP
€ 2.50
29
0935470123300
ref: 29
L:300->40
HOSE (7X12X300)
€ 26.00
30
0940406405
ref: 30
CLAMP
€ 3.00
31
1318922D70
ref: 31
LABEL, CARBURETOR WARNING
€ 0.00
