CLUTCH
RGV250 1996 (T) (E24)

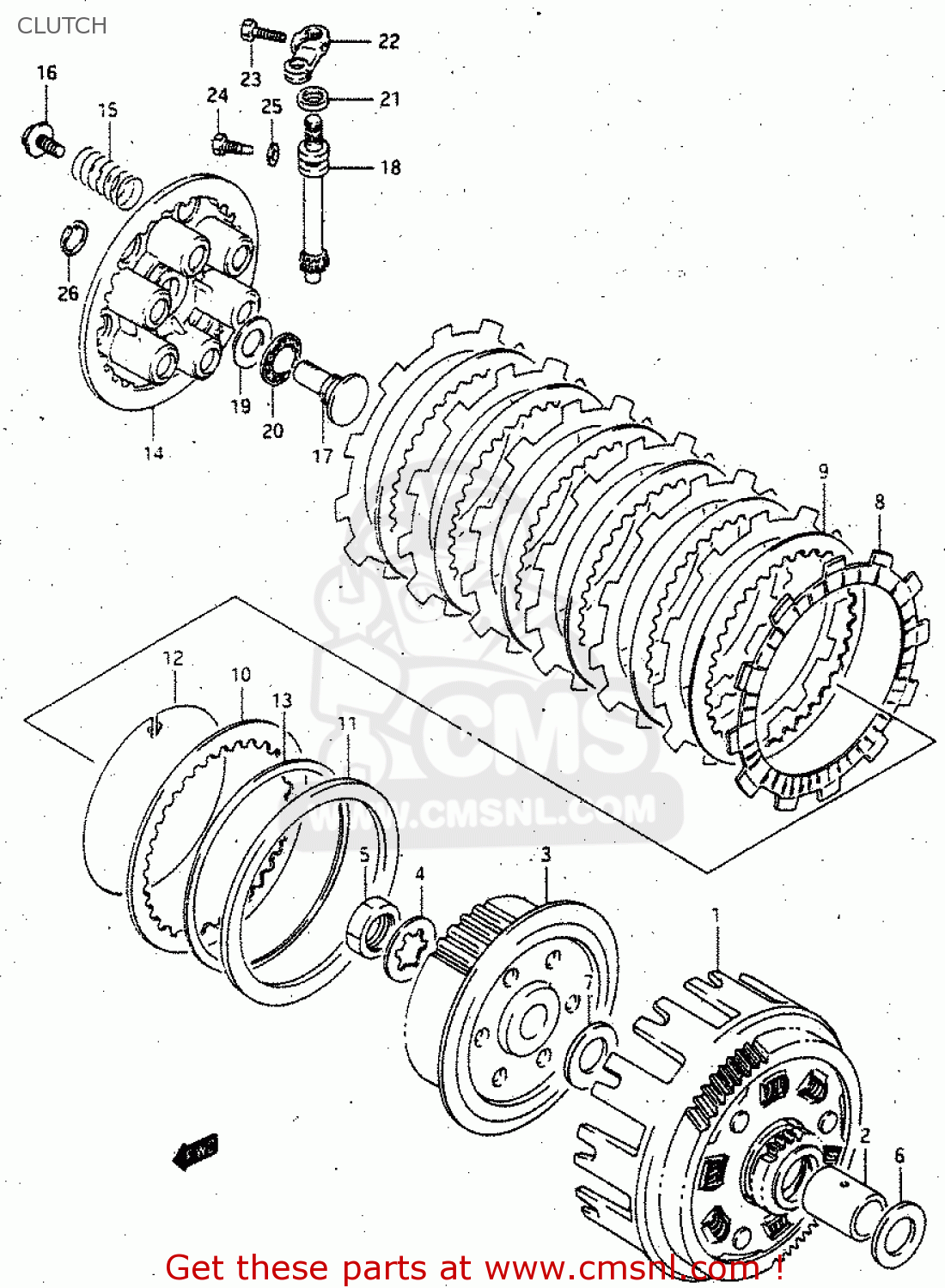

Clutch diagram RGV250 1996 (T) (E24)
CLUTCH RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
2120012C15
ref: 1
MODEL M, NT:59/20
GEAR ASSY, PRIMARY DRIVEN
€ 256.50
1
2120012C16
ref: 1
MODEL N/P, NT:59/20
GEAR ASSY,PRIM
€ 256.50
1
2120012C17
ref: 1
MODEL R/T, NT:59/20
GEAR ASSY,PRI DRIVEN
€ 256.50
2
2125112C01
ref: 2
SPACER,PRIMARY DRIVEN
€ 29.50
3
2141016712
ref: 3
MODEL M/N/P
HUB,CLUTCH SLE
€ 86.00
3
2141040A00
ref: 3
MODEL R/T
HUB,CLUTCH SLEEVE
€ 86.00
4
0916720009
ref: 4
<-09167-20006
WASHER,LOCK
€ 3.00
5
0914020001
ref: 5
NUT
€ 3.50
6
0916020067
ref: 6
WASHER(20X36X3)
€ 6.50
7
0916020063
ref: 7
WASHER(20X36X2)
€ 7.00
8
2144137400
ref: 8
PLATE,CLUTCH DRIVE (NAS)
€ 20.50
9
2145145000
ref: 9
MODEL M/N/P
PLATE,CLUTCH DRIVEN (NAS)
€ 10.50
9
2145128C30
ref: 9
MODEL R/T
PLATE,CLUTCH DRIVEN T: (NAS)
€ 10.50
10
2145131000
ref: 10
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
€ 9.00
11
2147145101
ref: 11
SEAT,WAVE WASHER
€ 16.00
12
2148145100
ref: 12
RING,STOPPER
€ 5.00
13
0916400003
ref: 13
WASHER
€ 9.00
14
2146212C00
ref: 14
DISC,CLUTCH PRESSURE
€ 146.50
15
0944019023
ref: 15
SPRING
€ 4.50
16
0911606016
ref: 16
MODEL M/N/P/R
BOLT
€ 2.50
16
0911606168
ref: 16
MODEL T
BOLT(6X16)
€ 2.50
17
2316521A11
ref: 17
RACK,CLUTCH RELEASE
€ 26.00
18
2326120A00
ref: 18
MODEL M
PINION,CLUTCH RELEASE
€ 35.00
18
2326120A01
ref: 18
MODEL N/P/R/T
PINION,CLUTCH RELEASE
€ 35.00
19
0916015015
ref: 19
MODEL M/N/P
WASHER
€ 4.00
19
0916015045
ref: 19
MODEL R/T
WASHER(15.5X28X1)
€ 4.00
20
0926315003
ref: 20
BEARING(15X28X2)
€ 7.00
21
0928510004
ref: 21
SEAL,OIL(10X17X5)
€ 3.50
22
2327112C00
ref: 22
ARM,CLUTCH RELEASE
€ 27.50
23
0110706167
ref: 23
MODEL M/N/P
BOLT
€ 3.00
23
0150006163
ref: 23
MODEL R/T
BOLT
€ 2.00
24
0913506009
ref: 24
BOLT(6X12)
€ 2.00
25
0832221067
ref: 25
MODEL M/N/P
WASHER
€ 2.00
25
0832201063
ref: 25
MODEL R/T
WASHER
€ 2.00
26
0938015001
ref: 26
RING,SNAP
€ 2.00
