CUSHION LEVER (MODEL P/R/T)
RGV250 1996 (T) (E24)

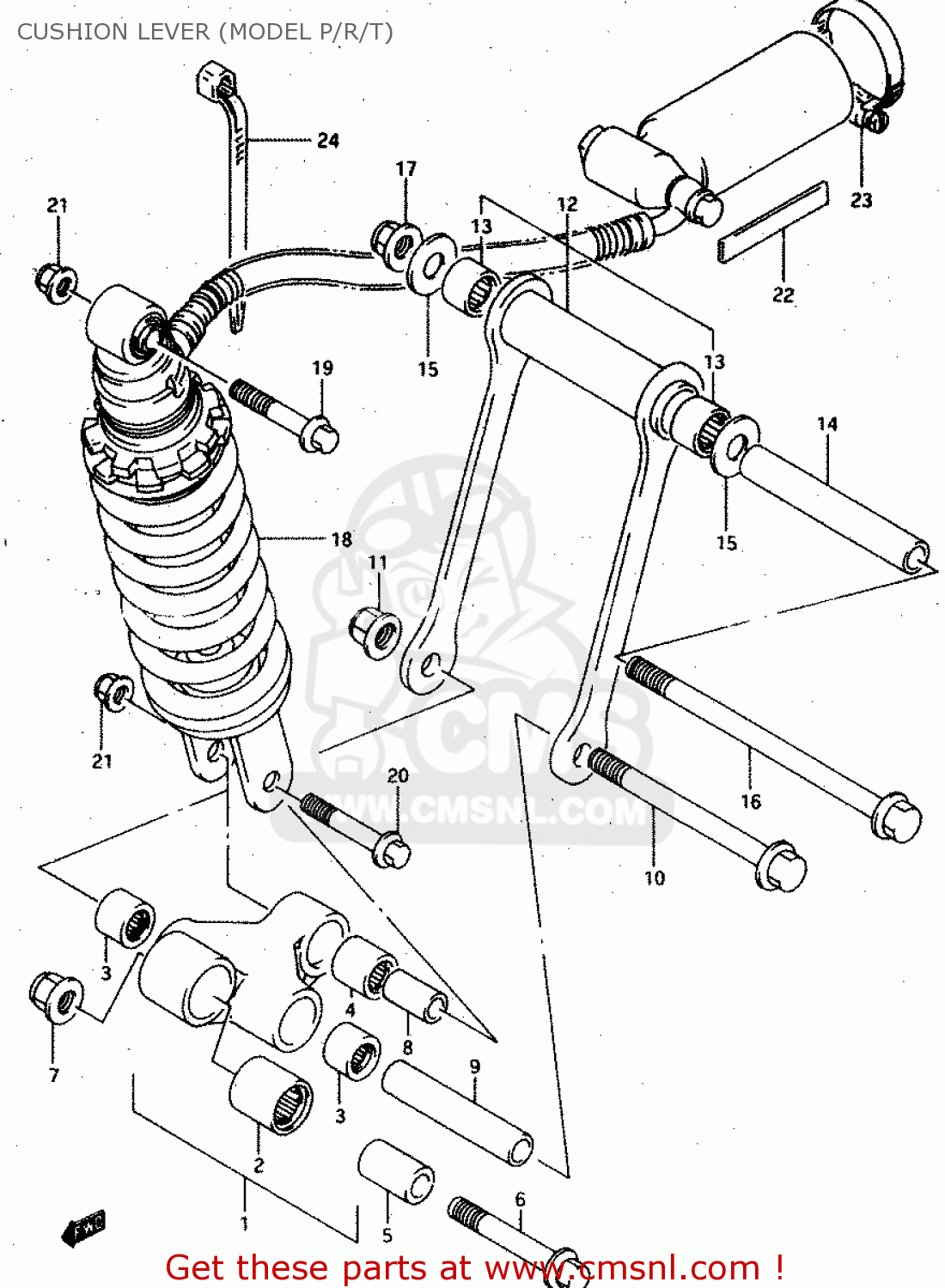

Cushion lever (model p/r/t) diagram RGV250 1996 (T) (E24)
CUSHION LEVER (MODEL P/R/T) RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
6260022810
ref: 1
LEVER SET,RR CUSHION
€ 614.00
2
0926320070
ref: 2
BEARING(20X27X30)
€ 21.00
3
0926317039
ref: 3
BEARING(17X24X20)
€ 18.00
4
0926317034
ref: 4
BEARING(17X24X26)
€ 21.50
5
6268412C00
ref: 5
SPACER,RR CUSHION LEVER FR
€ 12.50
6
6266827A00
ref: 6
BOLT,RR CUSHION LEVER FR
€ 13.50
7
0831931128
ref: 7
NUT 12MM
€ 4.00
8
6268440A10
ref: 8
SPACER,RR CUSHION LEVER
€ 11.50
9
0918012122
ref: 9
SPACER(12X17X85)
€ 15.00
10
0910312037
ref: 10
BOLT(12X115)
€ 11.00
11
0831931128
ref: 11
NUT 12MM
€ 4.00
12
6260022820
ref: 12
ROD SET, REAR CUSHION LEVER
€ 156.50
13
0926317039
ref: 13
BEARING(17X24X20)
€ 18.00
14
0918012134
ref: 14
SPACER
€ 28.00
15
0821112301
ref: 15
WASHER
€ 2.00
16
0910312031
ref: 16
BOLT(12X155)
€ 13.00
17
0831931128
ref: 17
NUT 12MM
€ 4.00
18
6210022D90
ref: 18
ABSORBER ASSY, REAR SHOCK
€ 828.00
19
0910310032
ref: 19
BOLT(10X75)
€ 6.50
20
0910310101
ref: 20
BOLT(10X54)
€ 3.00
21
0831931107
ref: 21
NUT
€ 3.00
22
6233107D00
ref: 22
<-62331-48B00 (13X88
CUSHION,RESERVOIR TANK
€ 5.50
23
0940243501
ref: 23
MODEL P/R
CLAMP
€ 8.50
23
0940250511
ref: 23
MODEL T
CLAMP
€ 8.50
24
0940714403
ref: 24
CLAMP(L:125)
€ 2.50
24
0940718402
ref: 24
CLAMP(L:165)
€ 2.50
