FUEL COCK
RGV250 1996 (T) (E24)

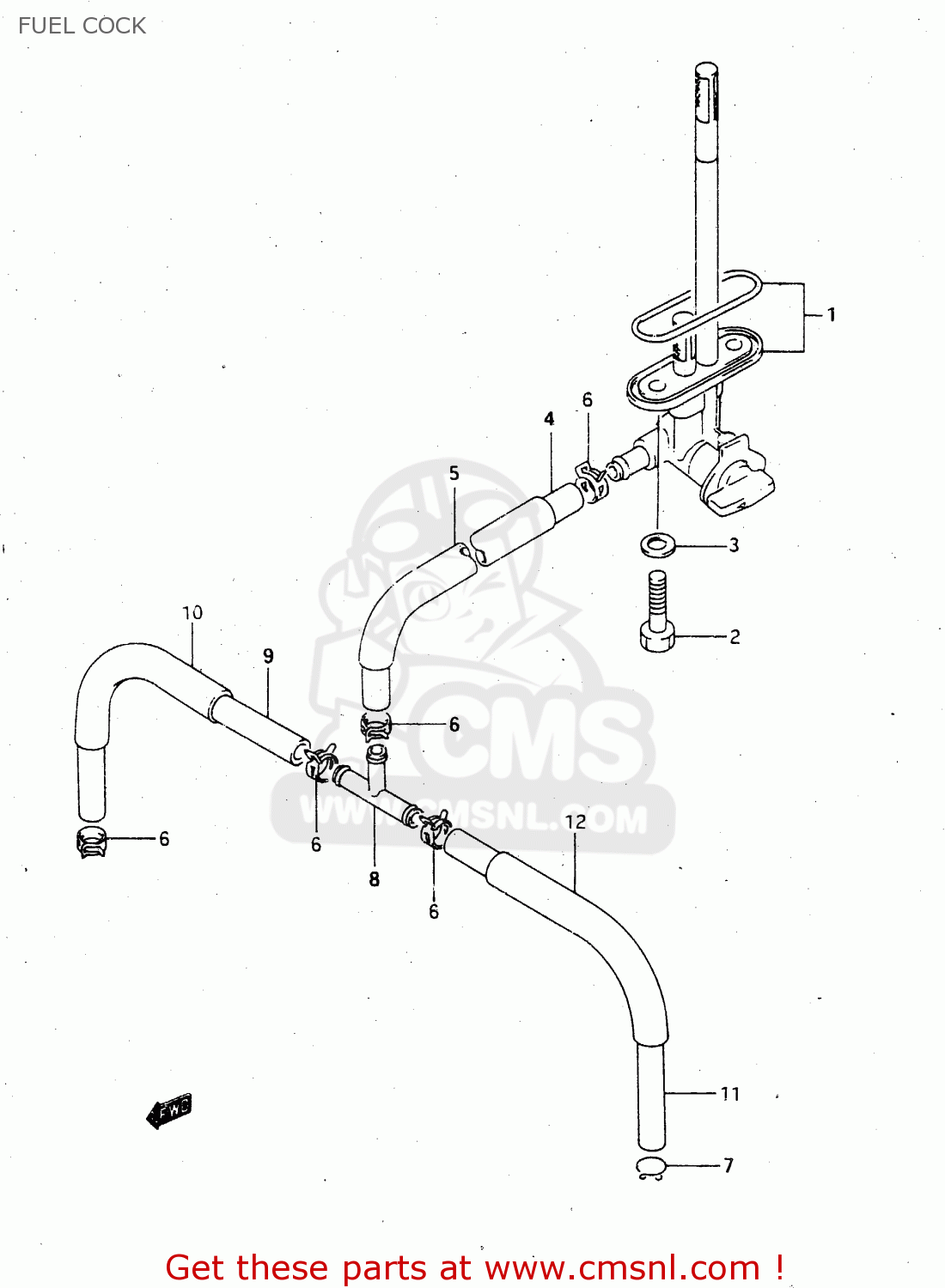

Fuel cock diagram RGV250 1996 (T) (E24)
FUEL COCK RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
4430022D00
ref: 1
MODEL M/N/P/R
COCK ASSEMBLY,FUEL
€ 88.50
1
4430022D02
ref: 1
MODEL T
COCK ASSY,FUEL
€ 88.50
2
0912806006
ref: 2
MODEL M/N/P/R
BOLT(6X20)
€ 2.00
2
0912806057
ref: 2
MODEL T
BOLT(6X20)
€ 2.00
3
0916806026
ref: 3
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
4
0935470113600
ref: 4
L:600->240
HOSE(7X11X600)
€ 17.50
5
0935213162600
ref: 5
L:600->215
HOSE(13.5X16.5X600)
€ 14.50
6
0940110409
ref: 6
CLIP
€ 2.50
7
0940112403
ref: 7
CLIP
€ 2.00
8
0936708004
ref: 8
3-WAY [FILTER TO PUMP)
€ 4.50
9
0935470113600
ref: 9
RH L:600->150
HOSE(7X11X600)
€ 17.50
10
0935213162600
ref: 10
RH L:600->90
HOSE(13.5X16.5X600)
€ 14.50
11
0935470113600
ref: 11
LH L:600->220
HOSE(7X11X600)
€ 17.50
12
0935213162600
ref: 12
LH L:600->160
HOSE(13.5X16.5X600)
€ 14.50
