OIL PUMP
RGV250 1996 (T) (E24)

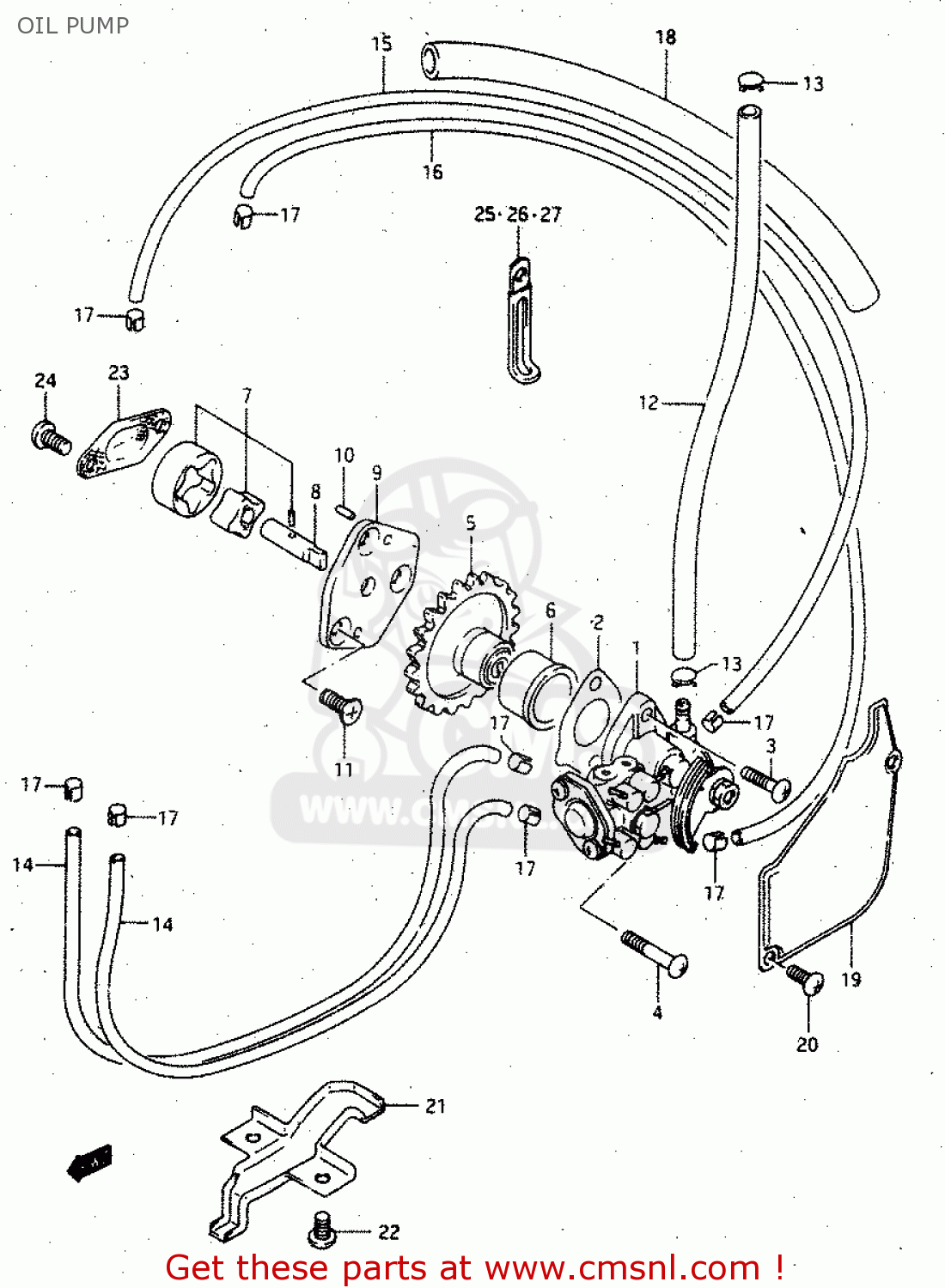

Oil pump diagram RGV250 1996 (T) (E24)
OIL PUMP RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
1610022D00
ref: 1
MODEL M/N/P
PUMP ASSY,OIL
€ 371.50
1
1610022D02
ref: 1
MODEL R/T
PUMP ASSY,OIL
€ 371.50
2
1673103101
ref: 2
GASKET,OIL PUMP (NAS)
€ 2.50
3
0211235168
ref: 3
MODEL M/N/P
SCREW
€ 2.50
3
0211235163
ref: 3
MODEL R/T
SCREW
€ 2.50
4
0211235308
ref: 4
MODEL M/N/P
SCREW
€ 1.50
4
0211235303
ref: 4
MODEL R/T
SCREW
€ 2.50
5
1632012C00
ref: 5
GEAR,OIL PUMP DRIVE(NT:21)
€ 21.00
6
0930120005
ref: 6
BUSH
€ 13.00
7
1641012C00
ref: 7
ROTOR SET,OIL PUMP
€ 36.50
8
1641512C00
ref: 8
SHAFT,OIL PUMP ROTOR DRIVE
€ 10.00
9
1643112C00
ref: 9
COVER,OIL PUMP
€ 22.50
10
0422104069
ref: 10
PIN
€ 2.00
11
0212206167
ref: 11
MODEL M/N/P
SCREW
€ 2.00
11
0212206163
ref: 11
MODEL R/T
SCREW ,6X16
€ 2.00
12
0935445853600
ref: 12
HOSE (4.5X8.5X600)
€ 14.00
13
0940108401
ref: 13
CLIP
€ 1.50
14
0935220503600
ref: 14
L:600->370, FOR CRAN
HOSE(2X5X600)
€ 12.00
15
093522050300B
ref: 15
L:2000->740, FOR RH
HOSE(2X5X2000)
€ 26.50
16
0935220503600
ref: 16
L:600->570, FOR LH C
HOSE(2X5X600)
€ 12.00
17
0940104401
ref: 17
CLIP
€ 2.50
18
0935211153600
ref: 18
L:600->240
HOSE(11X15X600)
€ 13.50
19
1138512C01
ref: 19
CAP,OIL PUMP INSPECTION
€ 6.50
20
0211205107
ref: 20
MODEL M/N/P
SCREW
€ 2.00
20
0211205103
ref: 20
MODEL R/T
SCREW
€ 2.00
21
1138612C01
ref: 21
COVER,OIL HOSE
€ 10.00
22
0211206127
ref: 22
MODEL M/N/P
SCREW
€ 2.00
22
0211206123
ref: 22
MODEL R/T
SCREW
€ 1.50
23
1652012C01
ref: 23
STRAINER,ENGINE OIL
€ 6.00
24
0211236127
ref: 24
MODEL M/N/P
SCREW
€ 2.00
24
0211236123
ref: 24
MODEL R/T
BOLT
€ 2.00
25
0940406402
ref: 25
MODEL M/N/P
CLAMP
€ 2.50
25
0940406429
ref: 25
MODEL R/T
CLAMP(L:45)
€ 2.50
26
0940408205
ref: 26
CLAMP(L:45 T:0.6)
€ 3.00
27
0940408206
ref: 27
CLAMP(L:65 T:0.8)
€ 3.50
