HEADLAMP (MODEL M/N/P/R)

RGV250 1996 (T) (E24)

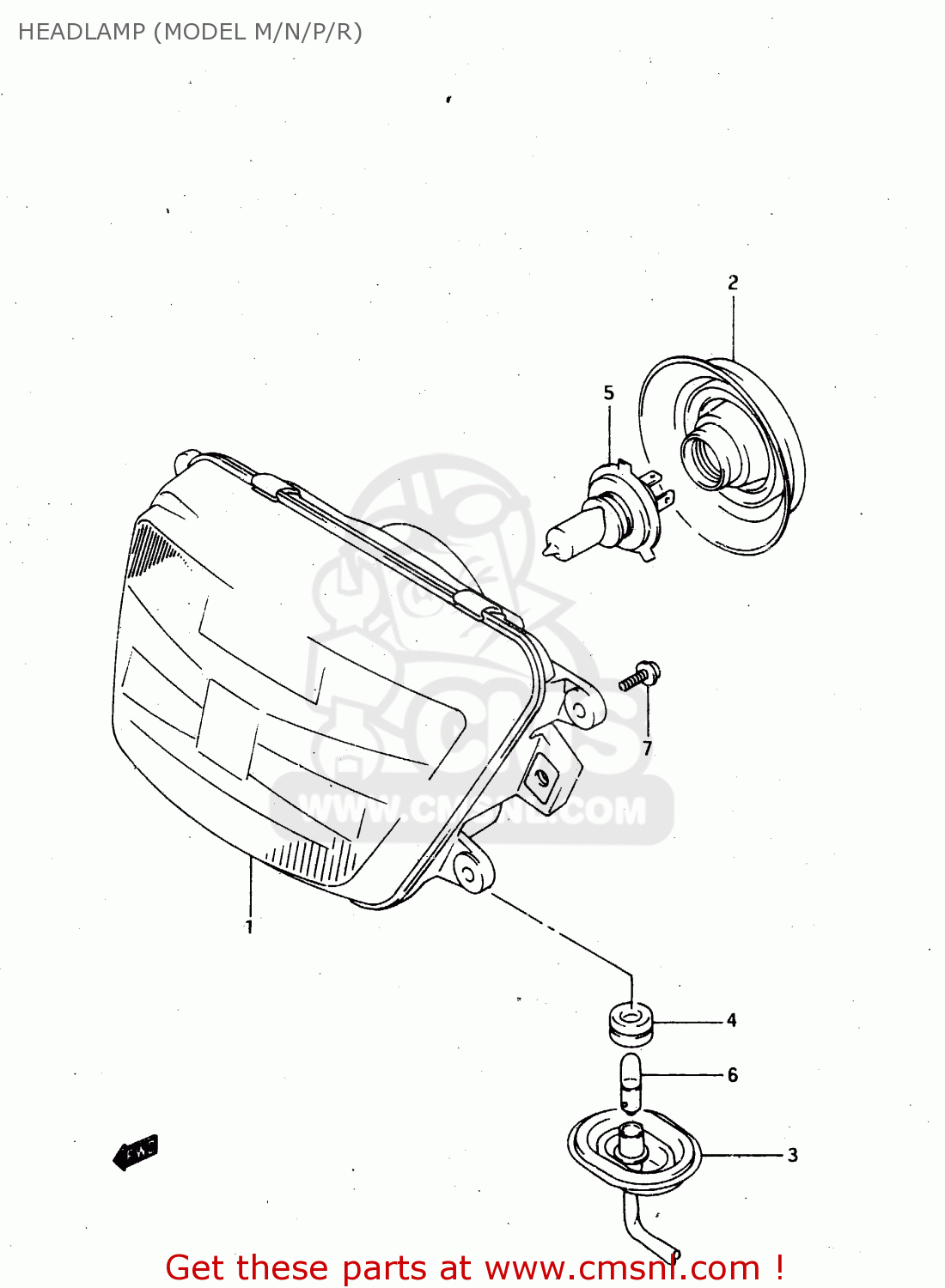

Headlamp (model m/n/p/r) diagram RGV250 1996 (T) (E24)

prices are in EUR

ref

part #

description

quantity

3512122D00
ref: 1

LAMP UNIT,HEADLAMP

€ 232.00

3512122D10
ref: 1
E4

UNIT, HEADLAMP

€ 241.00

3512122D20
ref: 1
E21, E22, E34

LAMP UNIT, HEADLAMP

€ 241.00

3517326B20
ref: 2

COVER,SOCKET

€ 14.50

3611812C00
ref: 3

SOCKET

€ 17.50

3611622630
ref: 4

JOINT,RUBBER

€ 5.00

0947112060
ref: 5

BULB(12V60/55W,H4)

€ 8.00

0947112061
ref: 5
E4, PURCHASE LOCALLY

BULB (12V, 60/55W, H4)

€ 0.00

0947112063
ref: 6

BULB(12V4W)

€ 6.00

0211275165
ref: 7
MODEL M/N/P

SCREW

€ 2.50

0214205163
ref: 7
MODEL R/T

SCREW

€ 2.50
