FRONT DAMPER (MODEL N/P/R/T)
RGV250 1996 (T) (E24)

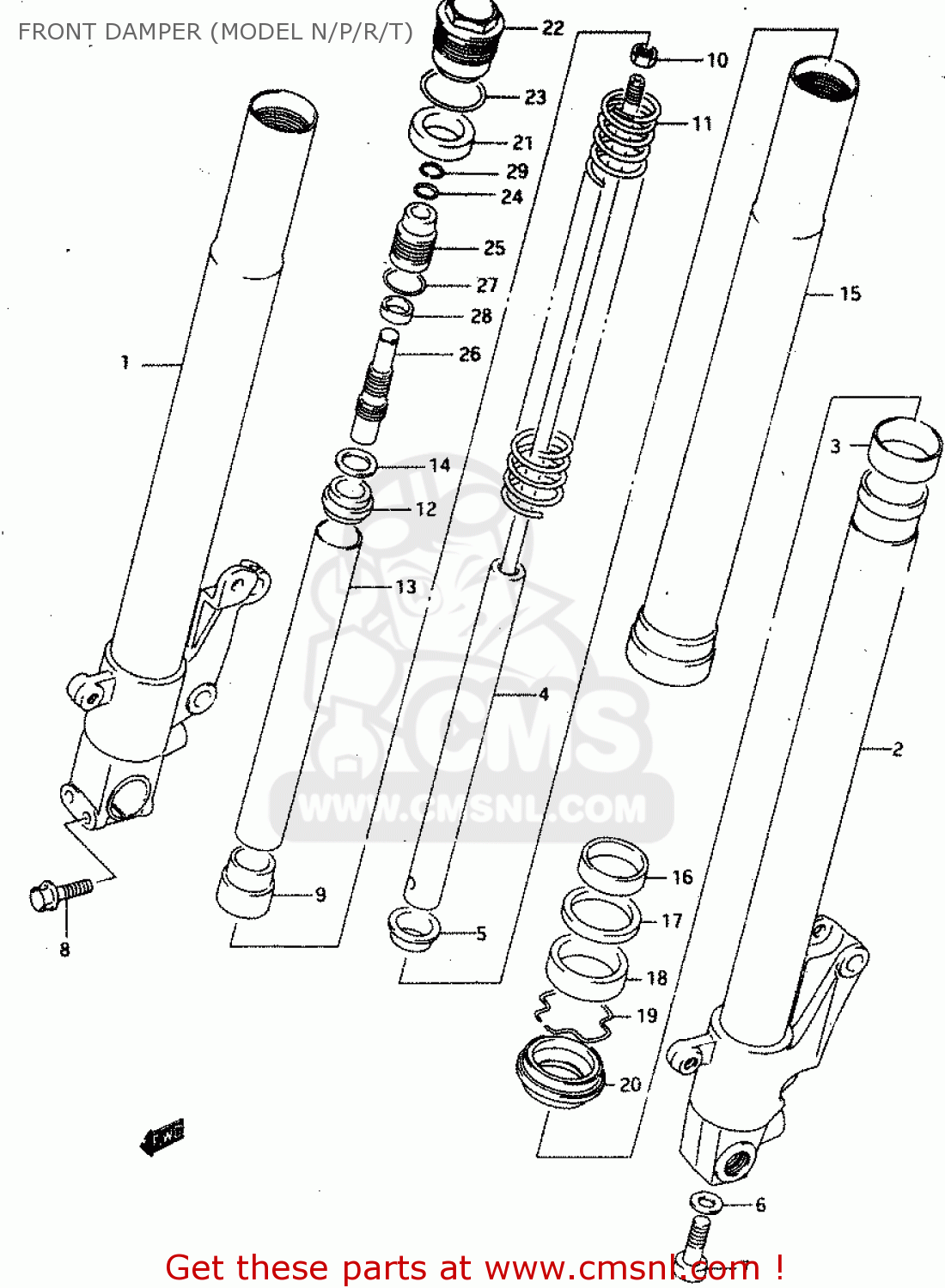

Front damper (model n/p/r/t) diagram RGV250 1996 (T) (E24)
FRONT DAMPER (MODEL N/P/R/T) RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
0
5110322D50
ref: 0
DAMPER ASSY, RH
€ 901.50
0
5110422D50
ref: 0
DAMPER ASSY,FR FORK,L
€ 776.00
1
5111022D30
ref: 1
TUBE,INNER,R
€ 483.50
2
5112022D30
ref: 2
TUBE,INNER,L
€ 508.00
3
5112148B31
ref: 3
BUSH,SLIDE
€ 15.50
4
5211022D00
ref: 4
DAMPER,FR
€ 238.00
5
5181517D00
ref: 5
PLATE,CENTERING
€ 9.50
6
5114836011
ref: 6
GASKET (NAS)
€ 4.00
7
5113808D00
ref: 7
BOLT,CTR
€ 5.00
8
0155008507
ref: 8
BOLT
€ 3.50
9
5117222D20
ref: 9
JOINT,SPRING UPR
€ 16.00
10
0914010027
ref: 10
NUT
€ 1.50
11
5117122D50
ref: 11
SPRING,FR FORK(SP,SF)
€ 106.00
12
5117522D00
ref: 12
GUIDE,SPRING UPR
€ 15.00
13
5117622D00
ref: 13
SPACER,SPRING
€ 19.00
14
5117234370
ref: 14
GUIDE,SPRING
€ 3.50
15
5113122D80
ref: 15
TUBE,OUTER
€ 541.50
16
5115208D00
ref: 16
BUSH,GUIDE
€ 19.00
17
5116838B00
ref: 17
SPACER,SEAL
€ 5.00
18
5115308D00
ref: 18
SEAL,OIL
€ 15.50
19
5155638B00
ref: 19
CIRCLIP,FORK OIL SEAL
€ 4.50
20
5117308D00
ref: 20
MODEL N/P
DUST SEAL,FRONT FORK
€ 19.50
20
5117315D00
ref: 20
MODEL R/T
DUST SEAL
€ 19.50
21
5119317D00
ref: 21
RUBBER,SEAT
€ 13.00
22
5118918D00
ref: 22
BOLT,FORK
€ 79.00
23
5118708D00
ref: 23
O RING,FORK BOLT
€ 6.00
24
0928014003
ref: 24
O-RING (D:2.4 ID:13.8)
€ 3.50
25
5182922D00
ref: 25
CASE,ADJUSTER
€ 46.50
26
5182817D00
ref: 26
ADJUSTER,SPRING
€ 42.50
27
5119917D00
ref: 27
O RING
€ 6.00
28
5182322D30
ref: 28
PLATE,SPRING ADJUSTER
€ 33.50
29
5183717D00
ref: 29
RING,STOPPER
€ 6.00
