STAND
RGV250 1996 (T) (E24)

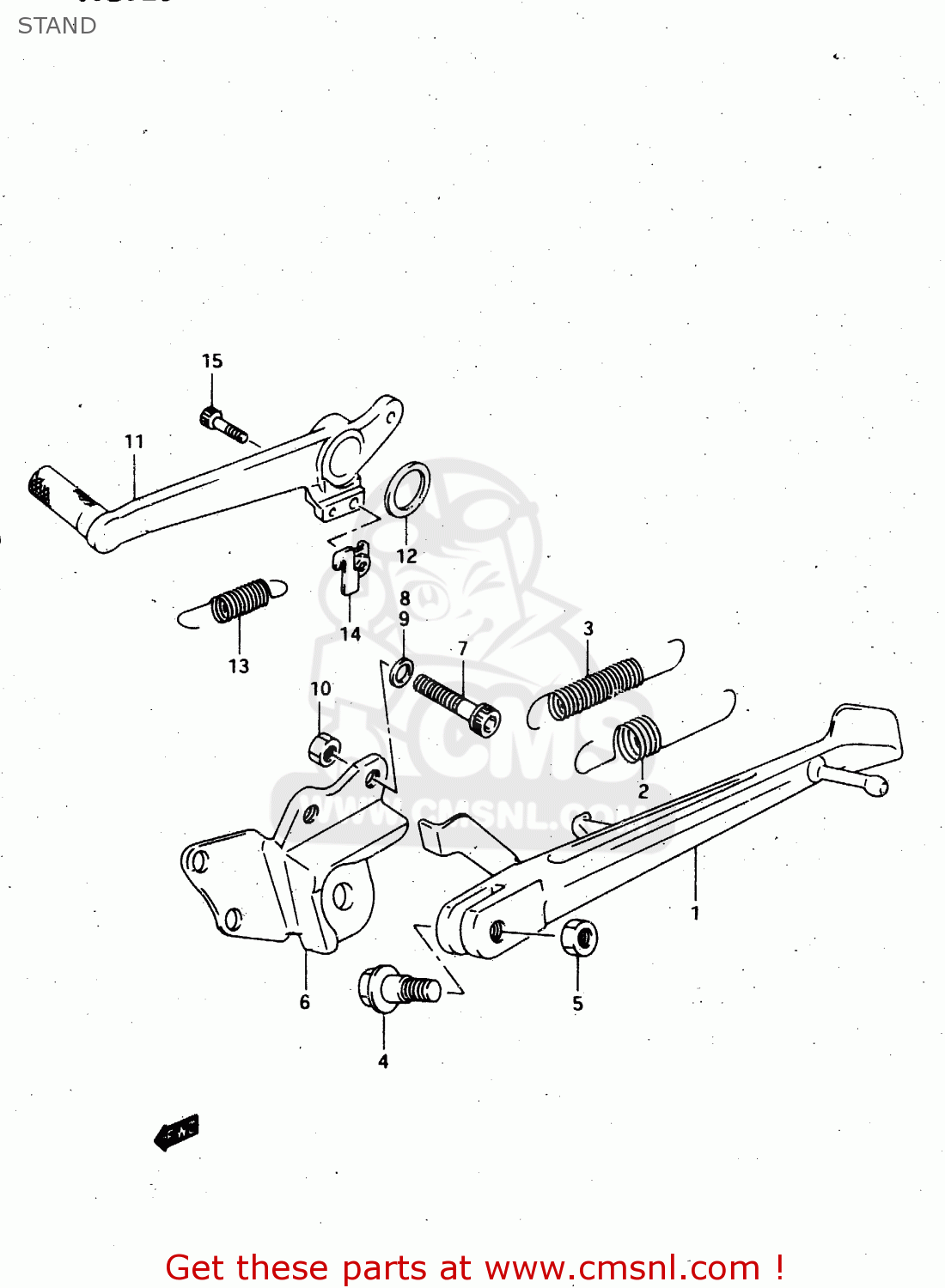

Stand diagram RGV250 1996 (T) (E24)
STAND RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
4231022D00
ref: 1
STAND, PROP
€ 50.50
2
0944314042
ref: 2
SPRING
€ 7.50
3
0944319011
ref: 3
SPRING
€ 5.50
4
0911110046
ref: 4
BOLT(10X30)
€ 2.50
5
0831022105
ref: 5
MODEL M/N/P
NUT
€ 2.00
5
0914010043
ref: 5
MODEL R/T
NUT
€ 2.00
6
4233022D01
ref: 6
BRACKET, PROP STAND
€ 49.50
7
0713008357
ref: 7
MODEL M/N/P
BOLT
€ 4.50
7
0713008353
ref: 7
MODEL R/T
BOLT
€ 4.00
8
0916408015
ref: 8
WASHER
€ 3.00
9
0832201087
ref: 9
MODEL M/N/P
WASHER
€ 2.00
9
0832201083
ref: 9
MODEL R/T
WASHER
€ 1.50
10
0831921088
ref: 10
NUT
€ 1.50
11
4311122D00
ref: 11
MODEL M/N/P
PEDAL,BRAKE
€ 79.00
11
4311122D01
ref: 11
MODEL R/T
PEDAL, BRAKE
€ 79.00
12
0916118003
ref: 12
MODEL M/N/P
WASHER(18.2X27X1)
€ 3.00
12
0916018022
ref: 12
MODEL R/T
WASHER(18X24X1)
€ 3.00
13
0944313017
ref: 13
SPRING
€ 3.50
14
4356012C00
ref: 14
BRACKET,STOP LAMP SWITCH SPR
€ 6.00
15
0211205167
ref: 15
MODEL M/N/P/R
SCREW
€ 2.50
15
0211205163
ref: 15
MODEL T
SCREW
€ 2.00
