CRANKCASE
RGV250 1996 (T) (E24)

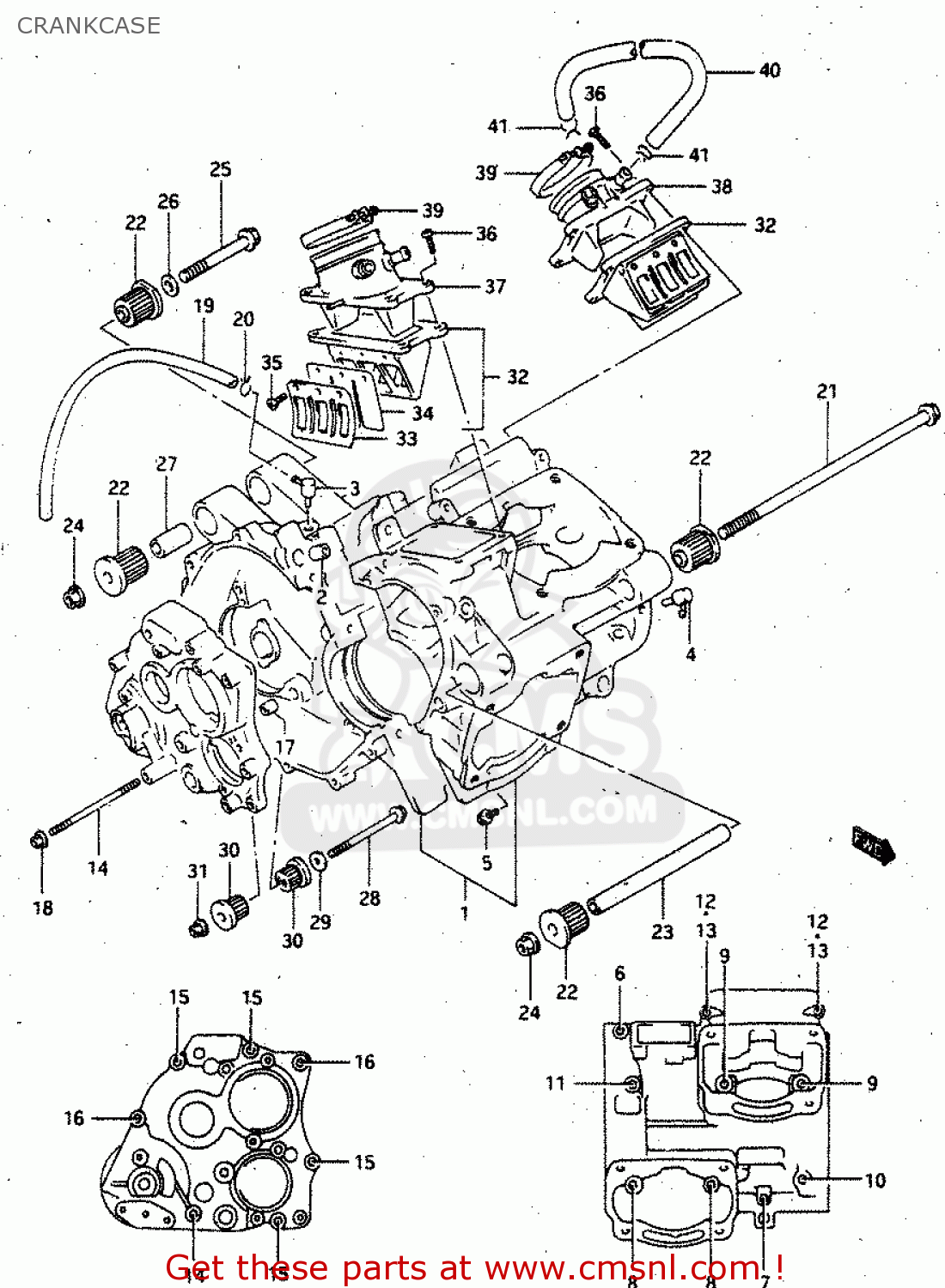

Crankcase diagram RGV250 1996 (T) (E24)
CRANKCASE RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
1130122830
ref: 1
CRANKCASE SET
€ 1,163.00
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3
1691009401
ref: 3
UNION,BREATHER HOSE
€ 18.00
4
1691035400
ref: 4
VALVE,OIL HOSE CHECK
€ 18.50
5
0151706257
ref: 5
MODEL M/N/P
BOLT 6X25
€ 2.50
5
0155006253
ref: 5
MODEL R/T
BOLT
€ 2.50
6
0151706408
ref: 6
MODEL M/N/P
BOLT
€ 2.50
6
0155006403
ref: 6
MODEL R/T
BOLT
€ 2.00
7
0151706508
ref: 7
MODEL M/N/P
BOLT ,6X50
€ 2.00
7
0155006503
ref: 7
MODEL R/T
BOLT
€ 2.00
8
0711008358
ref: 8
MODEL M/N/P
BOLT, FRONT RH
€ 4.50
8
0713008353
ref: 8
MODEL R/T
BOLT
€ 4.00
9
0711008407
ref: 9
MODEL M/N/P
BOLT
€ 3.50
9
0713008403
ref: 9
MODEL R/T
BOLT
€ 3.00
10
0711008608
ref: 10
MODEL M/N/P
BOLT, REAR RH
€ 4.50
10
0713008603
ref: 10
MODEL R/T
BOLT
€ 4.50
11
0910608084
ref: 11
BOLT 8X110
€ 5.50
12
0910806013
ref: 12
STUD
€ 4.00
13
0915906017
ref: 13
MODEL M/N/P
NUT
€ 2.50
13
0831610063
ref: 13
MODEL R/T
NUT
€ 2.50
14
0910806108
ref: 14
BOLT,STUD
€ 4.50
15
0142106307
ref: 15
BOLT,STUD
€ 2.50
16
0142106408
ref: 16
STUD BOLT
€ 2.50
17
0920611012
ref: 17
PIN(8.4X11X18)
€ 3.00
18
0831931067
ref: 18
NUT
€ 2.50
19
0935445853600
ref: 19
L:600->500
HOSE (4.5X8.5X600)
€ 14.00
20
0940108301
ref: 20
CLIP
€ 1.50
21
0910310205
ref: 21
BOLT(10X225)
€ 9.50
22
0931910063
ref: 22
BUSH
€ 25.50
23
0918010123
ref: 23
SPACER
€ 10.50
24
0915910058
ref: 24
NUT
€ 4.00
25
0910010280
ref: 25
BOLT(10X130)
€ 5.50
26
0832211107
ref: 26
MODEL M/N/P
WASHER
€ 2.50
26
0832201103
ref: 26
MODEL R/T
WASHER
€ 2.50
27
0918010126
ref: 27
SPACER,10.2X16
€ 10.50
28
0910008276
ref: 28
BOLT(8X70)
€ 4.00
29
0832211088
ref: 29
MODEL M/N/P
WASHER
€ 2.00
29
0832201083
ref: 29
MODEL R/T
WASHER
€ 1.50
30
0931908037
ref: 30
BUSH
€ 15.00
31
0831931087
ref: 31
NUT
€ 2.50
32
1315022D01
ref: 32
E1
VALVE ASSY, REED
€ 131.00
32
1315012C11
ref: 32
E2, E4, E21, E22, E2
VALVE ASSY,REED
€ 131.00
33
1315222D01
ref: 33
E1
STOPPER, REED VALVE
€ 0.00
33
1315212C11
ref: 33
E2, E4, E21, E22, E2
STOPPER,REED VALVE
€ 6.50
34
1315312C10
ref: 34
VALVE,REED
€ 10.50
35
0212203066
ref: 35
MODEL M/N/P
SCREW
€ 2.00
35
0212203063
ref: 35
MODEL R/T
SCREW
€ 2.00
36
0211206207
ref: 36
MODEL M/N/P
SCREW
€ 2.00
36
0154706203
ref: 36
MODEL R/T
SCREW
€ 2.50
37
1311012C00
ref: 37
PIPE,INTAKE,R
€ 84.00
38
1312012C00
ref: 38
PIPE,INTAKE,L
€ 84.00
39
0940254306
ref: 39
MODEL M/N/P/R
CLAMP
€ 4.00
39
0940254303
ref: 39
MODEL T
CLAMP
€ 4.00
40
093549014320B
ref: 40
L:2200->1000
HOSE (9X14X2200)
€ 28.00
41
0940113301
ref: 41
CLIP
€ 2.00
