KICK STARTER

RGV250 1996 (T) (E24)

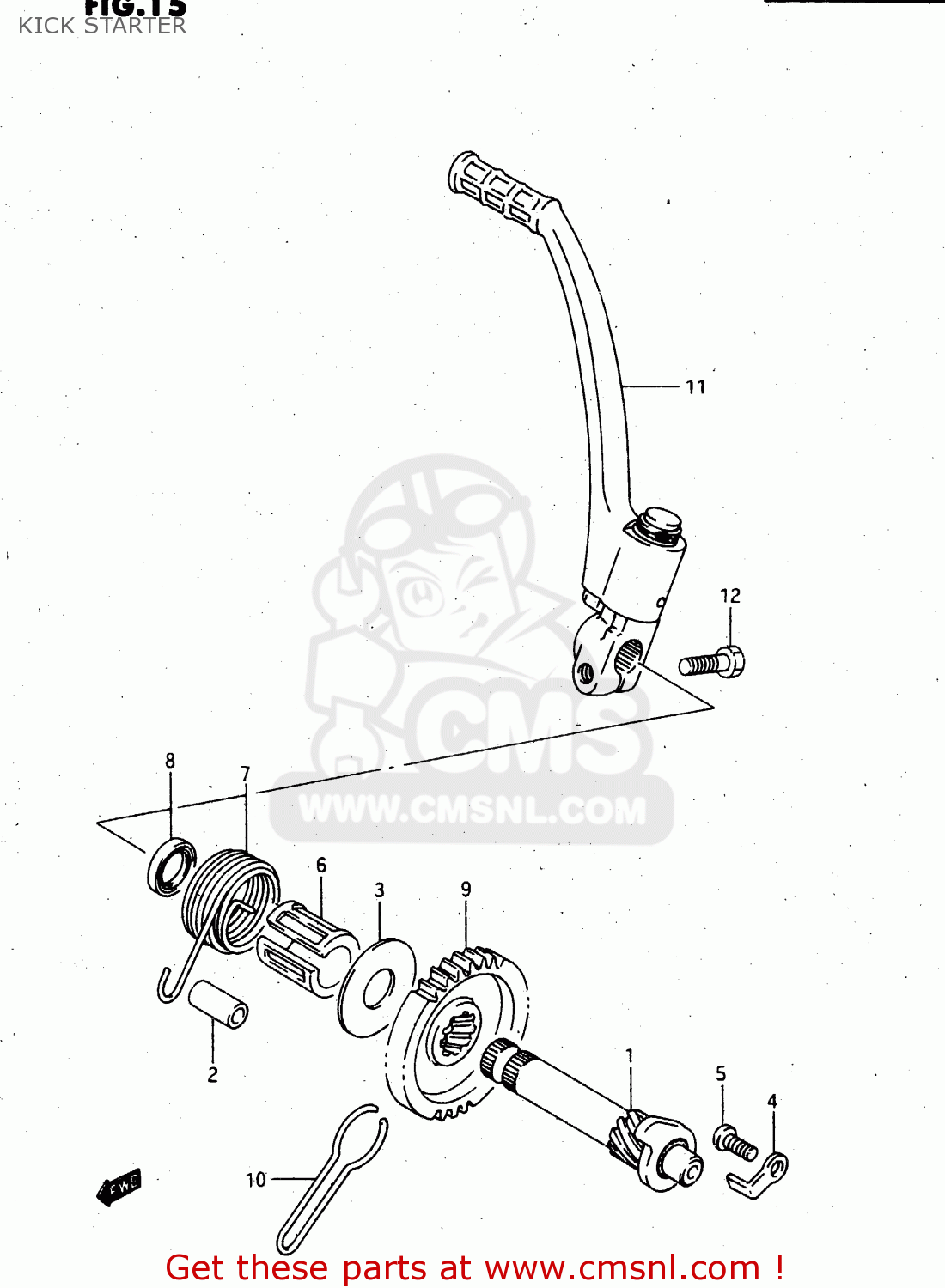

Kick starter diagram RGV250 1996 (T) (E24)

KICK STARTER RGV250 1996 (T) (E24)

KICK STARTER RGV250 1996 (T) (E24)

prices are in EUR

ref

part #

description

quantity

1

2621012C02
ref: 1

SHAFT,KICK STARTER

€ 112.00

2

0918006067
ref: 2

SPACER(6.5X10.5X22.5)

€ 2.50

3

0821117422
ref: 3

WASHER

€ 4.50

4

2623312C10
ref: 4
MODEL M/N/P

STOPPER, KICK STARTER

€ 5.00

4

2623312C11
ref: 4
MODEL R/T

STOPPER,KICK STARTER

€ 5.00

5

0211206103
ref: 5

SCREW

€ 1.50

6

2622123030
ref: 6

GUIDE,KICK STARTER SFT SPRING

€ 7.50

7

0944843002
ref: 7

SPRING

€ 13.00

8

0928516003
ref: 8

SEAL,OIL(16X24X5)

€ 3.00

9

2624112C00
ref: 9

GEAR,KICK DRIV

€ 96.50

10

2623412C01
ref: 10

SPRING,KICK STARTER RETAINER

€ 6.00

11

2630022D10
ref: 11

LEVER ASSY,KICK STARTER

€ 100.00

12

0110708258
ref: 12
MODEL M/N/P

BOLT

€ 2.50

12

0150008253
ref: 12
MODEL R/T

BOLT

€ 2.50
