WIRING HARNESS
RGV250 1996 (T) (E24)

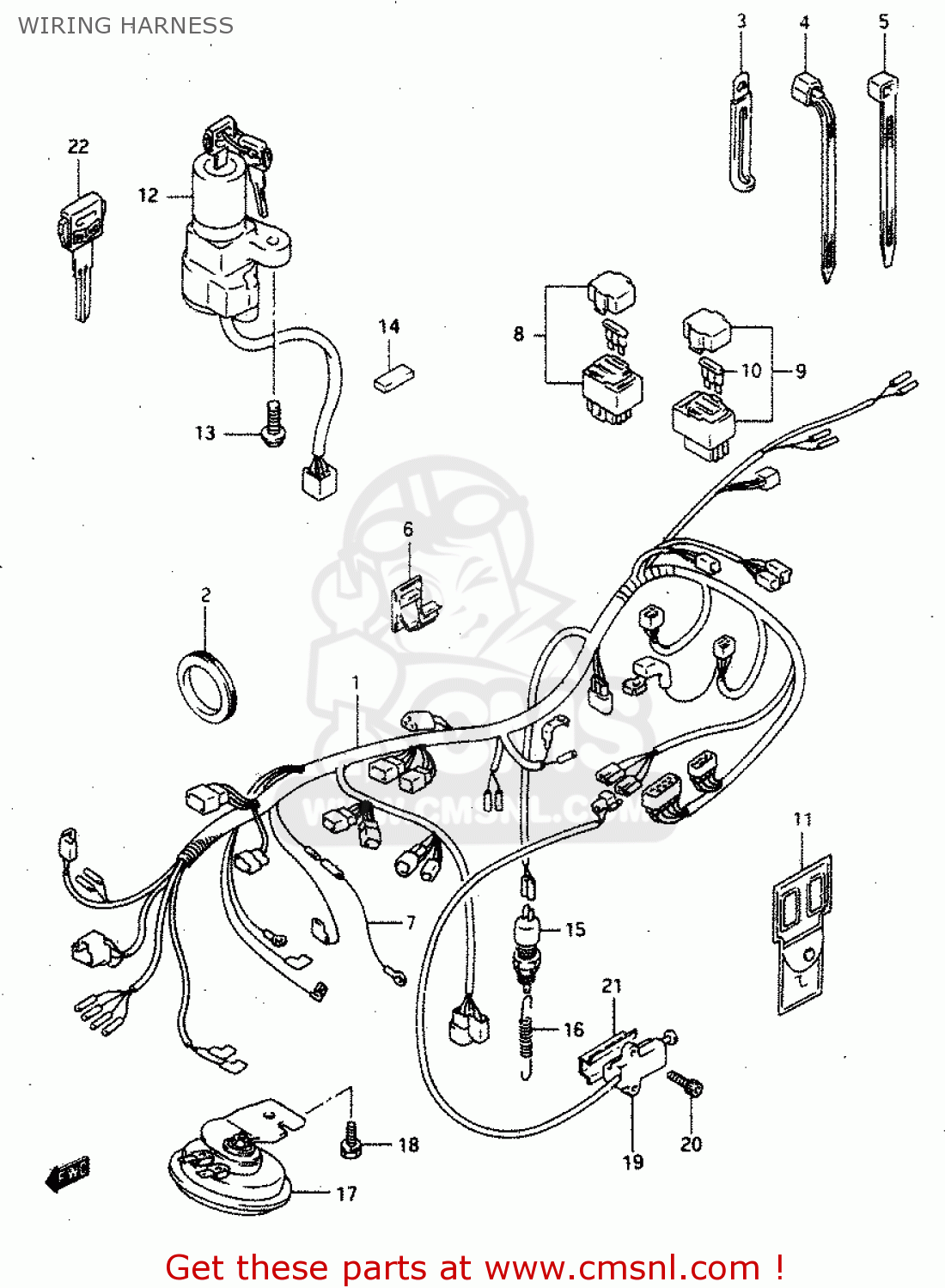

Wiring harness diagram RGV250 1996 (T) (E24)
WIRING HARNESS RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
3661022D00
ref: 1
MODEL M
HARNESS, WIRING
€ 468.50
1
3661022D20
ref: 1
MODEL M/N, E2, E4, E
HARNESS,WIRING
€ 468.50
1
3661022D30
ref: 1
MODEL M E22
HARNESS,WIRING
€ 468.50
1
3661022D60
ref: 1
MODEL N E22
HARNESS, WIRING
€ 0.00
1
3661023D20
ref: 1
MODEL P
HARNESS,WIRING
€ 443.00
1
3661023D21
ref: 1
MODEL R/T
HARNESS, WIRING
€ 443.00
1
3661023D40
ref: 1
MODEL P E22
HARNESS, WIRING
€ 443.00
2
0932037001
ref: 2
GROMMET
€ 6.50
3
0940406402
ref: 3
CLAMP
€ 2.50
3
0940406429
ref: 3
CLAMP(L:45)
€ 2.50
3
0940406415
ref: 3
CLAMP
€ 3.00
3
0940406433
ref: 3
CLAMP(L:80)
€ 3.00
3
0940406420
ref: 3
CLAMP
€ 2.50
3
0940406435
ref: 3
CLAMP(L:135)
€ 2.50
3
0940408405
ref: 3
CLAMP
€ 3.50
3
0940408418
ref: 3
CLAMP(L:65)
€ 3.50
4
0940714403
ref: 4
CLAMP(L:125)
€ 2.50
4
0940711401
ref: 4
CLAMP(L:95)
€ 2.50
4
0940718403
ref: 4
CLAMP L:165
€ 2.50
5
0940710403
ref: 5
CLAMP(L:95)
€ 2.50
6
0940800098
ref: 6
CLAMP
€ 5.50
7
3685102900
ref: 7
WIRE,LEAD
€ 4.00
8
3674022D00
ref: 8
CASE ASSY, FUSE NO.2
€ 15.00
9
3674012C01
ref: 9
MODEL M/N
BOX ASSY, FUSE
€ 20.00
9
3674023D00
ref: 9
MODEL P/R/T
BOX ASSY, FUSE
€ 20.00
10
0948120101
ref: 10
FUSE(20A)
€ 2.00
10
0948105101
ref: 10
FUSE(5A)
€ 1.50
11
3673822D00
ref: 11
MODEL M/N
FUSE SET,SPARE
€ 16.50
11
3673822D01
ref: 11
MODEL P/R/T
BACK, SPARE FUSE
€ 16.50
12
3710012C03
ref: 12
MODEL L/M
LOCK ASSY, STEERING
€ 133.00
12
3710012C04
ref: 12
MODEL N
LOCK ASSY, STEERING
€ 133.00
12
3710022D00
ref: 12
MODEL P
LOCK ASSY,STEE
€ 127.00
12
3710022D01
ref: 12
MODEL R
LOCK ASSY, STEERING
€ 127.00
12
3710022D11
ref: 12
MODEL T
LOCK ASSY, STEERING
€ 104.00
13
0913906026
ref: 13
SCREW(6X18)
€ 2.50
14
3365137000
ref: 14
<-33652-22D00
PROTECTOR(170X95X3.0)
€ 5.00
15
3774024A00
ref: 15
SWITCH ASSY,STOP LAMP
€ 20.50
16
0944306012
ref: 16
SPRING
€ 3.00
17
3850022D00
ref: 17
HORN ASSY
€ 43.00
17
3850022D20
ref: 17
E2, E4, E21, E22, E2
HORN ASSY
€ 54.00
18
0113406125
ref: 18
MODEL M/N/P
BOLT ,6X12
€ 1.50
18
0157006123
ref: 18
MODEL R
BOLT
€ 1.50
19
3784032C01
ref: 19
SWITCH ASSY,SIDE STAND WARNING
€ 67.50
20
0910606055
ref: 20
MODEL M/N/P
BOLT
€ 2.50
20
0713006123
ref: 20
MODEL R/T
BOLT,STRANGER
€ 2.50
21
3784122D00
ref: 21
E22
SHEET,HEAT PROTECTION
€ 0.00
22
3714626D10
ref: 22
OPT, <-37146-03A80
KEY,BLANK
€ 41.50
