CYLINDER
RGV250 1996 (T) (E24)

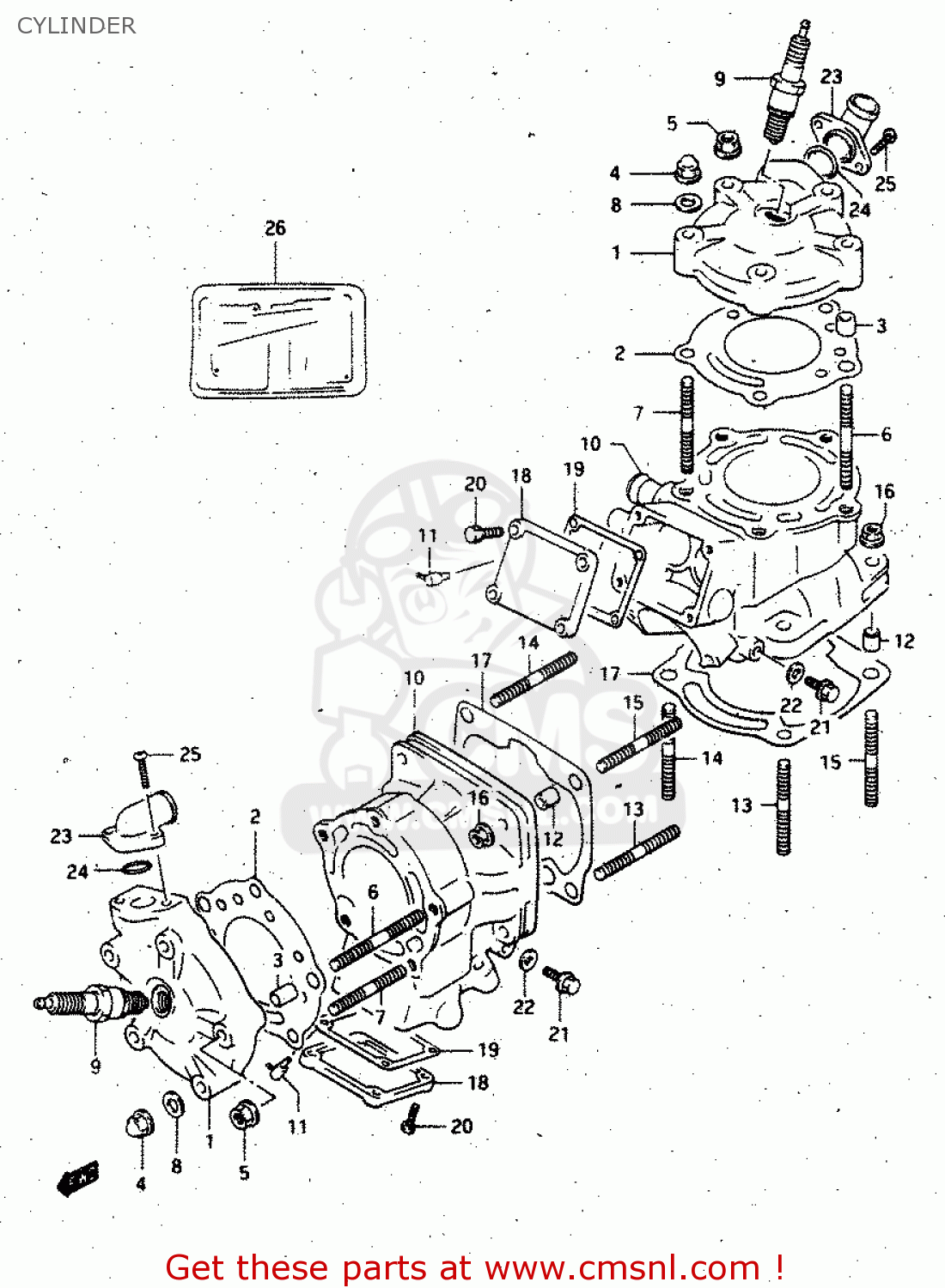

Cylinder diagram RGV250 1996 (T) (E24)
CYLINDER RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
1111122D01
ref: 1
HEAD,CYLINDER
€ 195.50
2
1114122D00
ref: 2
GASKET,CYLINDER HEAD (NAS)
€ 40.00
3
0421111129
ref: 3
PIN
€ 2.00
4
0831321087
ref: 4
MODEL M
NUT 8MM
€ 2.50
4
0915908074
ref: 4
MODEL N/P/R/T
NUT
€ 7.00
5
0831610087
ref: 5
MODEL M/N/P
NUT
€ 2.50
5
0831610083
ref: 5
MODEL R/T
NUT
€ 3.00
6
1121322D00
ref: 6
BOLT,HEAD STUD
€ 8.00
7
0910808235
ref: 7
BOLT,STUD
€ 9.00
8
0916808021
ref: 8
GASKET(8.5X17X2.3) (NAS)
€ 3.00
9
0948200472
ref: 9
PLUG,SPARK(BR9ECM)
€ 19.50
9
0948200473
ref: 9
PLUG,SPARK(W27EMR-C)
€ 19.50
9
0948200470
ref: 9
OPT
PLUG,SPARK(BR8ECM)
€ 21.00
9
0948200474
ref: 9
OPT
PLUG,SPARK(BR10ECM)
€ 0.00
9
0948200471
ref: 9
OPT
SPARK PLUG (ND, W24EMR-C)
€ 10.50
9
0948200475
ref: 9
OPT
SPARK PLUG (ND, W31EMR-C)
€ 11.50
10
1120022812
ref: 10
CYLINDER
€ 590.50
11
1691035400
ref: 11
VALVE,OIL HOSE CHECK
€ 18.50
12
0421111169
ref: 12
PIN
€ 2.00
13
0910808142
ref: 13
BOLT,STUD
€ 3.00
14
0910808143
ref: 14
BOLT,STUD
€ 3.00
15
0910808144
ref: 15
BOLT,STUD
€ 4.50
16
0831610087
ref: 16
MODEL M/N/P
NUT
€ 2.50
16
0831610083
ref: 16
MODEL R/T
NUT
€ 3.00
17
1124122D20
ref: 17
<-11241-22D10
GASKET,CYLINDER (NAS)
€ 50.00
18
1124812C01
ref: 18
COVER,CYLINDER NO.2
€ 22.50
19
1123801B30H17
ref: 19
GASKET,CYL COVER NO.2 (NAS)
€ 6.00
20
0110705167
ref: 20
MODEL M/N/P
BOLT
€ 1.50
20
0150005163
ref: 20
MODEL R
BOLT
€ 1.50
20
0211205163
ref: 20
MODEL T
SCREW
€ 2.00
21
0151706128
ref: 21
MODEL M/N/P
BOLT
€ 2.50
21
0155006123
ref: 21
MODEL R/T
BOLT
€ 2.50
22
0916806018
ref: 22
GASKET(6.2X13X1.2) (NAS)
€ 2.00
23
1787236A01
ref: 23
CONNECTOR,WATER HOSE
€ 45.50
24
0928020006
ref: 24
O RING(D:1.9,ID:19.8)
€ 2.50
25
0211206167
ref: 25
MODEL M/N/P
SCREW
€ 2.50
25
0211206163
ref: 25
MODEL R/T
SCREW 6X16
€ 2.00
26
1140122833
ref: 26
GASKET SET (NAS)
€ 201.50
