MUFFLER
RGV250 1996 (T) (E24)

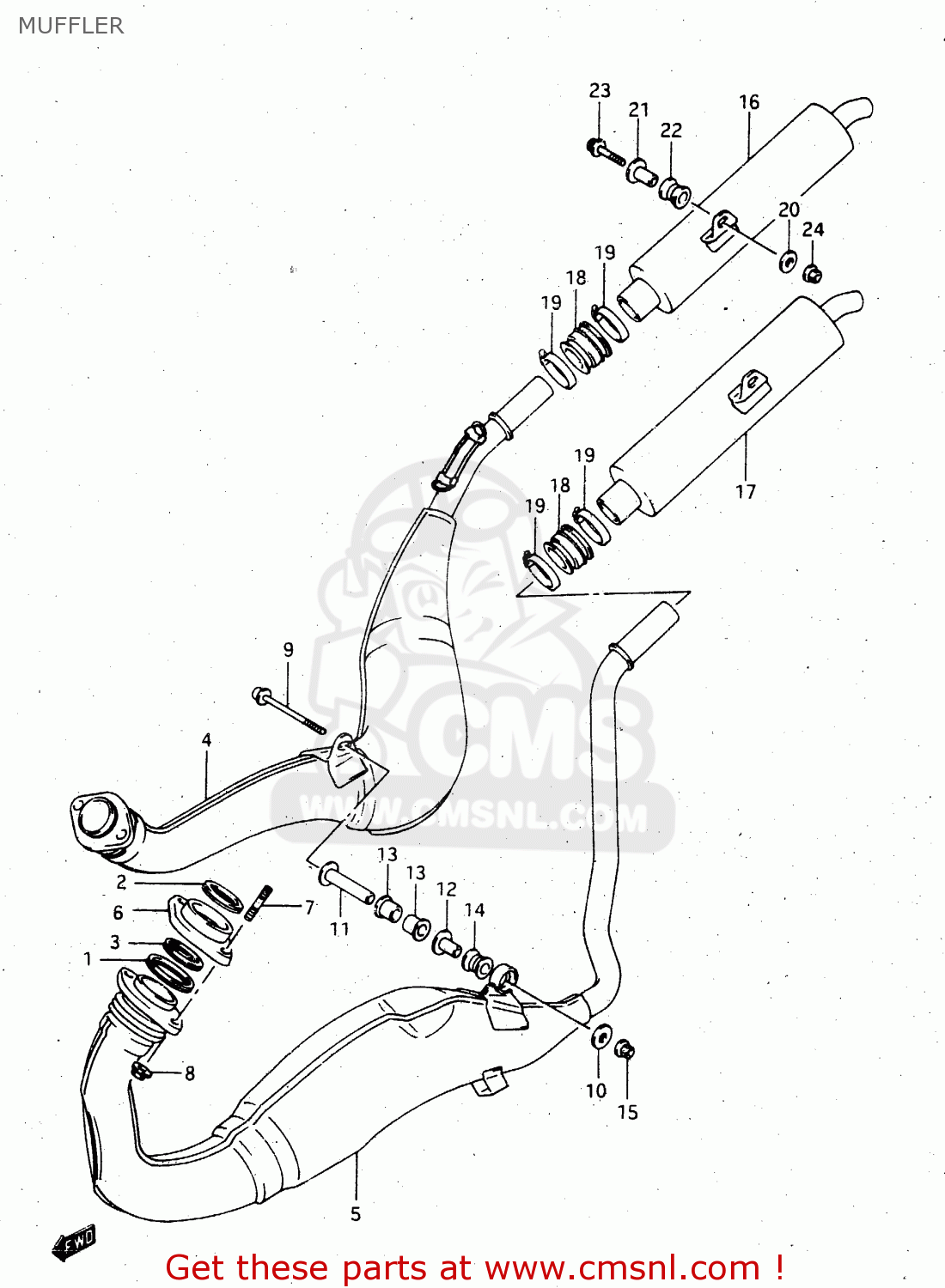

Muffler diagram RGV250 1996 (T) (E24)
MUFFLER RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
1418113A01
ref: 1
GASKET,EXHAUST PIPE (NAS)
€ 10.00
2
1418101D00
ref: 2
GASKET,EXHAUST PIPE (NAS)
€ 8.00
3
1418122D01
ref: 3
GASKET,EXHAUST PIPE (NAS)
€ 9.00
4
1431022D10
ref: 4
MODEL M
BODY, MUFFLER 1ST RH
€ 611.50
4
1431022D11
ref: 4
MODEL N/P/R/T
BODY, MUFFLER 1ST RH
€ 611.50
4
1431022D20
ref: 4
MODEL M E22
BODY, MUFFLER 1ST RH
€ 0.00
4
1431022D30
ref: 4
MODEL N/P E22
BODY, MUFFLER 1ST RH
€ 0.00
5
1434022D10
ref: 5
MODEL M
BODY, MUFFLER 1ST LH
€ 486.50
5
1434022D11
ref: 5
MODEL N
BODY ,MUFFLER,
€ 486.50
5
1434022D12
ref: 5
MODEL P/R/T
BODY, MUFFLER 1ST LH
€ 486.50
5
1434022D20
ref: 5
MODEL M E22
BODY, MUFFLER 1ST LH
€ 0.00
5
1434022D30
ref: 5
MODEL N E22
BODY, MUFFLER 1ST LH
€ 0.00
5
1434022D31
ref: 5
MODEL P E22
BODY, MUFFLER 1ST LH
€ 0.00
6
1419522D00
ref: 6
FLANGE,EXHAUST FITING
€ 54.50
7
0910808142
ref: 7
BOLT,STUD
€ 3.00
8
0831931085
ref: 8
NUT
€ 2.50
9
0910308133
ref: 9
BOLT(8X105)
€ 4.50
10
0916008067
ref: 10
MODEL M/N/P
WASHER
€ 2.00
10
0916008085
ref: 10
MODEL R/T
WASHER (8.2X26X1.6)
€ 2.00
11
1447022D00
ref: 11
SPACER,SUPPORT
€ 7.50
12
0918008151
ref: 12
SPACER(8.6X12X17.5)
€ 6.00
13
0932012021
ref: 13
CUSHION
€ 3.50
14
0932012043
ref: 14
MODEL N/M/P/R
CUSHION
€ 8.00
14
0932012033
ref: 14
MODEL T
CUSHION
€ 52.00
15
0831931085
ref: 15
NUT
€ 2.50
16
1433022D00
ref: 16
MODEL M
BODY, MUFFLER 2ND UPPER
€ 262.00
16
1433022D10
ref: 16
MODEL M E2, E4, E21,
BODY, MUFFLER 2ND UPPER
€ 208.50
16
1433022D12
ref: 16
MODEL N/P/R/T
BODY, MUFFLER 2ND UPPER
€ 208.50
16
1433022D21
ref: 16
E22
BODY, MUFFLER 2ND UPPER
€ 0.00
17
1435022D00
ref: 17
MODEL M
BODY, MUFFLER 2ND LOWER
€ 0.00
17
1435022D10
ref: 17
MODEL M E2, E4, E21,
BODY, MUFFLER 2ND LOWER
€ 261.50
17
1435022D12
ref: 17
MODEL N/P/R/T
BODY, MUFFLER 2ND LOWER
€ 261.50
17
1435022D21
ref: 17
E22
BODY, MUFFLER 2ND LOWER
€ 0.00
18
1477103D00
ref: 18
CONNECTOR,2ND MUFFLER
€ 26.00
19
0940246511
ref: 19
CLAMP
€ 6.50
20
0916008067
ref: 20
MODEL M/N/P
WASHER
€ 2.00
20
0916008085
ref: 20
MODEL R/T
WASHER (8.2X26X1.6)
€ 2.00
21
0918008151
ref: 21
SPACER(8.6X12X17.5)
€ 6.00
22
0932012043
ref: 22
MODEL M/N/P/R
CUSHION
€ 8.00
22
0932012033
ref: 22
MODEL T
CUSHION
€ 52.00
23
0712008357
ref: 23
BOLT
€ 3.50
24
0831931085
ref: 24
NUT
€ 2.50
