EXHAUST VALVE
RGV250 1996 (T) (E24)

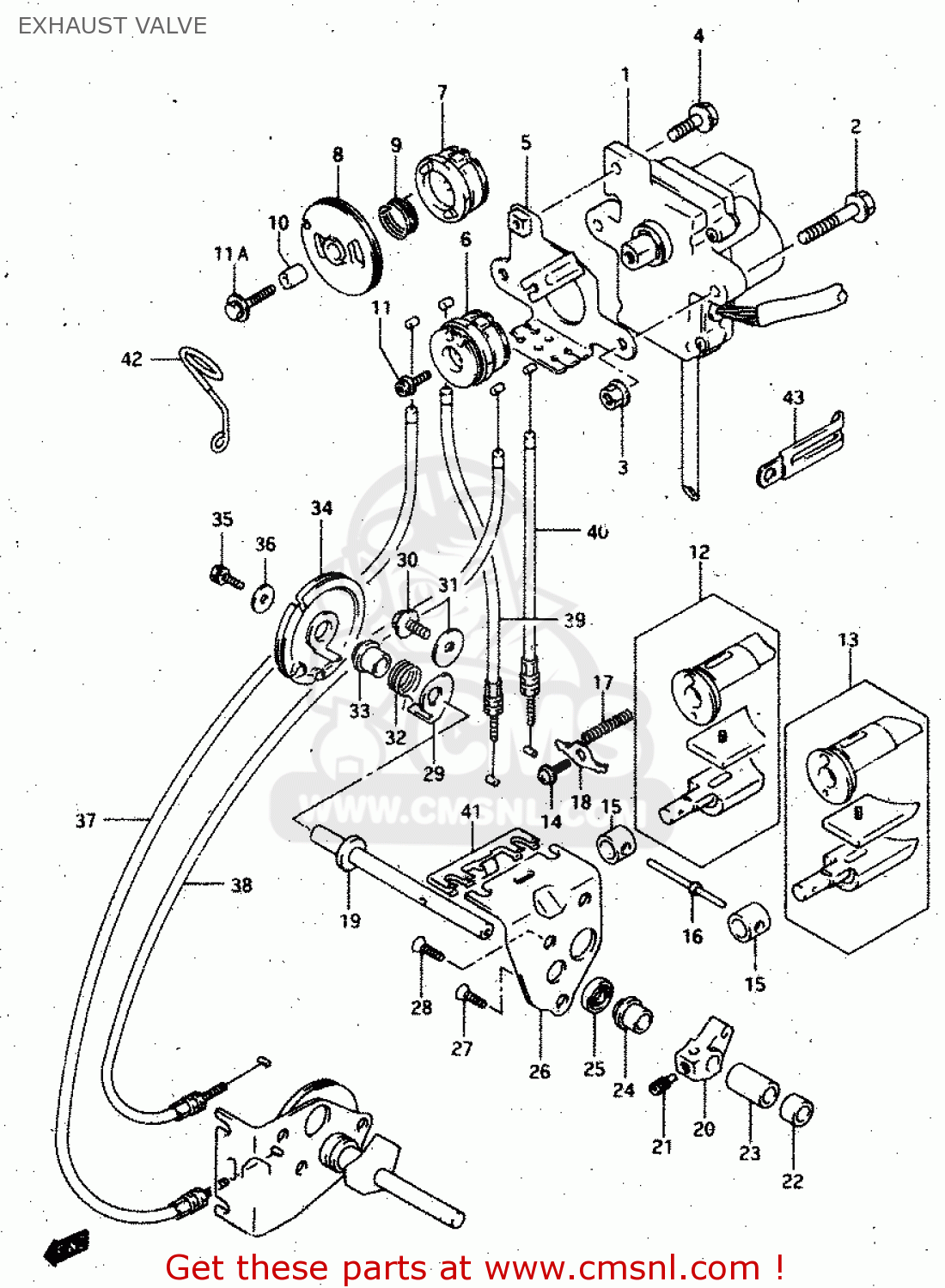

Exhaust valve diagram RGV250 1996 (T) (E24)
EXHAUST VALVE RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
3397022X50
ref: 1
ACTUATOR ASSY
€ 373.00
2
0155006303
ref: 2
BOLT
€ 2.50
3
0831610063
ref: 3
NUT
€ 2.50
4
0154706163
ref: 4
BOLT
€ 2.50
5
1128612C01
ref: 5
MODEL M
BRACKET, CABLE
€ 19.50
5
1128622D10
ref: 5
MODEL N/P/R/T
BRACKET,CABLE
€ 26.00
6
1126912C02
ref: 6
MODEL M
PULLEY, CONTROLLER
€ 20.00
7
1126922D00
ref: 7
MODEL N/P/R/T
PULLEY,CONTROLLER
€ 34.00
8
1661122D10
ref: 8
MODEL N/P/R/T
PULLEY,CONTROLLER NO.2
€ 48.00
9
1661322D00
ref: 9
MODEL N/P/R/T
SPRING
€ 7.50
10
0918005043
ref: 10
MODEL N/P/R/T
SPACER
€ 7.00
11
0712005168
ref: 11
MODEL M
BOLT
€ 1.50
11A
0911805004
ref: 11A
MODEL N/P/R/T
BOLT(5X30)
€ 3.00
12
1125019810
ref: 12
MODEL M/N/P
VALVE SET,EXHAUST,R
€ 234.50
12
1125019830
ref: 12
MODEL M/N/P E22
VALVE SET,EXHAUST,R
€ 182.50
12
1120619D31
ref: 12
MODEL R/T
VALVE ASSY,EXHAUST,R
€ 228.50
13
1125019820
ref: 13
MODEL M/N/P
VALVE SET,EXHAUST,L
€ 233.50
13
1125019840
ref: 13
MODEL M/N/P E22
VALVE SET,EXHAUST,L
€ 173.50
13
1120719D31
ref: 13
MODEL R/T
VALVE ASSY,EXHAUST,L
€ 182.50
14
0214215127
ref: 14
MODEL M/N/P
SCREW
€ 1.50
14
0214205123
ref: 14
MODEL R/T
SCREW 5X12
€ 1.50
15
1126312C01
ref: 15
MODEL M/N/P
SPACER,EXHAUST VALVE
€ 29.50
15
1126308D11
ref: 15
MODEL R/T
SPACER,EXHAUST VALVE
€ 13.00
16
1125301B31
ref: 16
PIN,EXHAUST VALVE 48.5MM
€ 20.50
17
0944003010
ref: 17
SPRING
€ 4.00
18
1127422D01
ref: 18
RETAINER,EXHAUST VALVE SPRING
€ 8.50
19
1125812C02
ref: 19
SHAFT,EXHAUST VALVE
€ 54.50
20
1126400B23
ref: 20
ARM,EXHAUST VALVE SHAFT
€ 17.00
21
0913406013
ref: 21
SCREW(6X10)
€ 4.50
22
0930008016
ref: 22
INCLUDED CYLINDER
BUSH(8X12X7)
€ 3.50
23
1128312C00
ref: 23
SPACER,EXHAUST VALVE SHAFT
€ 5.50
24
1126512C00
ref: 24
BUSH,EXHAUST VALVE NO.2
€ 8.50
25
0928208001
ref: 25
MODEL M/N/P
SEAL,OIL(8X16X5)
€ 3.00
25
0928208004
ref: 25
MODEL R/T
SEAL,OIL(8X16X5)
€ 7.50
26
1125922D01
ref: 26
RETAINER,OIL SEAL
€ 15.50
27
0212206127
ref: 27
MODEL M/N/P
SCREW
€ 3.00
27
0212206123
ref: 27
MODEL R/T
SCREW
€ 3.00
28
0912606011
ref: 28
SCREW(6X12)
€ 2.00
29
1126712C02
ref: 29
LEVER,EXHAUST VALVE
€ 11.50
30
0912506058
ref: 30
SCREW (6X10)
€ 5.50
31
0821106222
ref: 31
WASHER
€ 2.00
32
1128522D00
ref: 32
SPRING,EXHAUST VALVE LEVER
€ 7.00
33
1126822D03
ref: 33
SPACER,EXHAUST VALVE PULLEY
€ 15.50
34
1126622D01
ref: 34
PULLEY,EXHAUST VALVE
€ 50.50
35
0113705128
ref: 35
MODEL M/N/P
BOLT
€ 2.00
35
0911805005
ref: 35
MODEL R/T
BOLT(5X12)
€ 4.00
36
0916005005
ref: 36
WASHER (5.5X24X1.6)
€ 2.00
37
1127612C02
ref: 37
L:573
CABLE,EXHAUST VALVE FR,R
€ 17.50
38
1127812C00
ref: 38
L:523
CABLE,EXHAUST VALVE FR,L
€ 17.50
39
1127722D01
ref: 39
L:211
CABLE,EXHAUST VALVE RR,R
€ 10.50
40
1127922D01
ref: 40
L:223
CABLE,EXHAUST VALVE RR,L
€ 12.00
41
1128412C00
ref: 41
STOPPER,CABLE
€ 8.50
42
1127522D01
ref: 42
GUIDE,EXHAUST VALVE CABLE
€ 7.50
43
0940406403
ref: 43
MODEL M
CLAMP
€ 2.50
