SPEEDOMETER - TACHOMETER
RGV250 1996 (T) (E24)

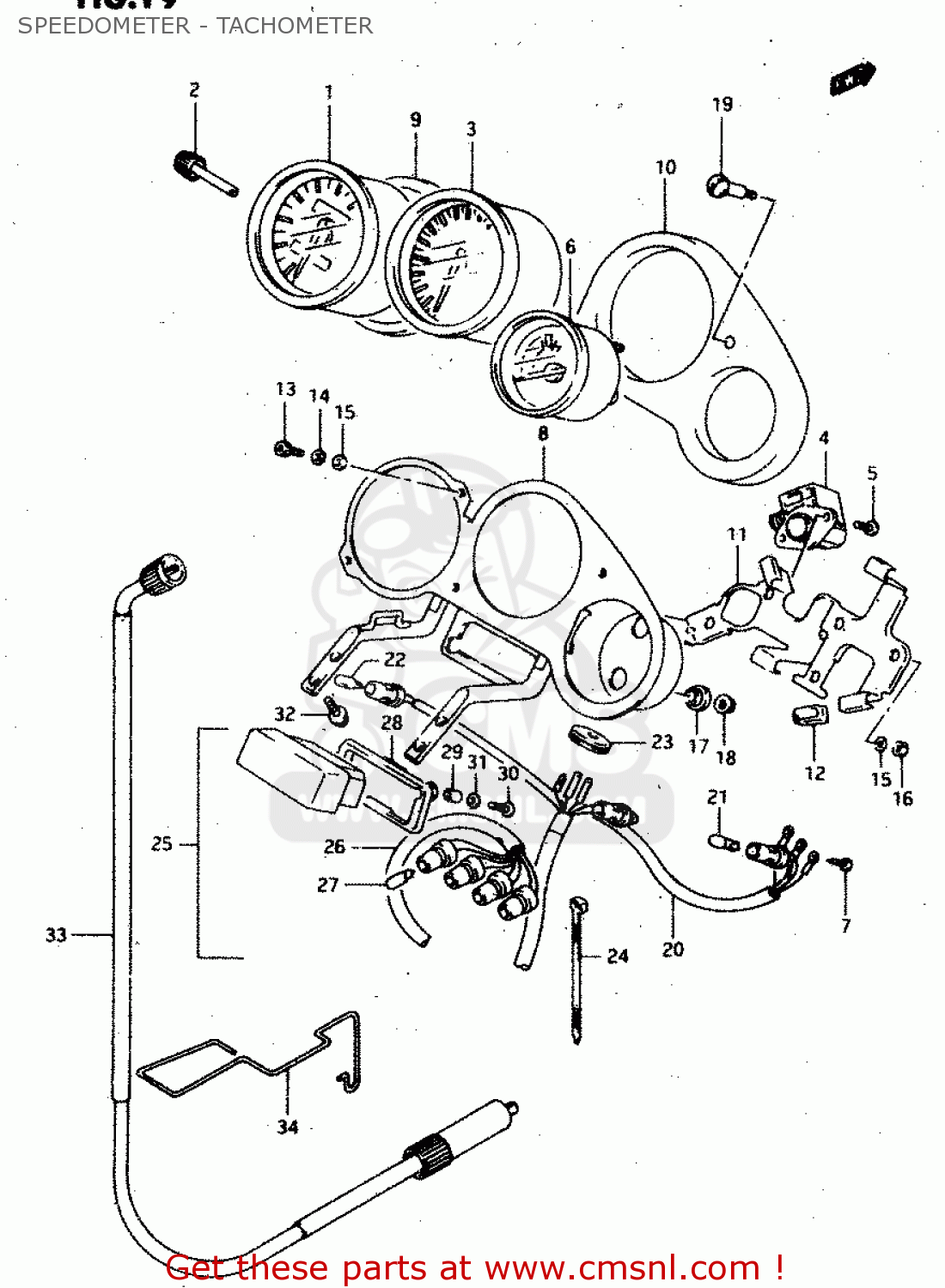

Speedometer - tachometer diagram RGV250 1996 (T) (E24)
SPEEDOMETER - TACHOMETER RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
3411022D10
ref: 1
SPEEDOMETER (KILO)
€ 293.00
1
3411022D30
ref: 1
E2
SPEEDOMETER (MILE/KILO)
€ 286.00
2
3412427A00
ref: 2
KNOB,TRIP
€ 7.50
3
3421022D01
ref: 3
TACHOMETER
€ 503.50
4
3413127A00
ref: 4
BOX,METER GEAR
€ 116.50
5
0211234103
ref: 5
SCREW
€ 2.00
6
3442012C10
ref: 6
METER, TEMPERATURE
€ 114.00
7
3438327A00
ref: 7
SCREW
€ 2.00
8
3495022D02
ref: 8
BRACKET,SPEEDOMETER
€ 107.50
9
3428822D00
ref: 9
CUSHION,SPEEDOMETER
€ 14.50
10
3425722D00
ref: 10
CUSHION
€ 46.00
11
3411122D00
ref: 11
BRACKET,SPEEDOMETER
€ 28.00
12
3418927A00
ref: 12
CUSHION
€ 6.00
13
3419922D00
ref: 13
SCREW
€ 3.00
14
3418122D00
ref: 14
LOCK WASHER
€ 2.50
15
0832101043
ref: 15
<-34181-27A00
WASHER,LOCK
€ 2.00
16
0831021035
ref: 16
NUT
€ 1.50
17
3418912C10
ref: 17
CUSHION
€ 4.00
18
3418514A00
ref: 18
NUT
€ 5.50
19
3429922D00
ref: 19
SCREW
€ 3.00
20
3417022D00
ref: 20
SOCKET
€ 79.50
21
0947112100
ref: 21
BULB(12V1.7W,WB372,T7)
€ 2.00
22
0947112085
ref: 22
BULB(12V3W,WB371,T7)
€ 3.00
23
3441416700
ref: 23
GROMMET
€ 2.00
24
0940410404
ref: 24
<-34954-16730
CLAMP
€ 2.50
25
3638022D00
ref: 25
BOX ASSY, PILOT LAMP
€ 90.50
25
3638022D10
ref: 25
E4, E21, E22, E24, E
BOX ASSY, PILOT LAMP
€ 93.00
26
3639422D00
ref: 26
SOCKET
€ 58.50
27
0947112118
ref: 27
BULB(13.5V,2W,A7427)
€ 2.00
28
3638222D00
ref: 28
HOLDER, PILOT BOX
€ 7.50
29
0918004017
ref: 29
SPACER(4.5X6.5X9)
€ 2.50
30
0913203008
ref: 30
SCREW(3X16)
€ 1.50
31
0832221045
ref: 31
MODEL M/N/P
WASHER
€ 5.00
31
0832201043
ref: 31
MODEL R/T
WASHER
€ 5.00
32
0151706125
ref: 32
MODEL M/N/P
BOLT 6X12
€ 2.50
32
0155006123
ref: 32
MODEL R/T
BOLT
€ 2.50
33
3491022D00
ref: 33
CABLE ASSY,SPEEDOMETER
€ 32.50
34
3493822D20
ref: 34
GUIDE, SPEEDOMETER CABLE
€ 10.00
