INSTALATION PARTS (MODEL N/P/R/T)
RGV250 1996 (T) (E24)

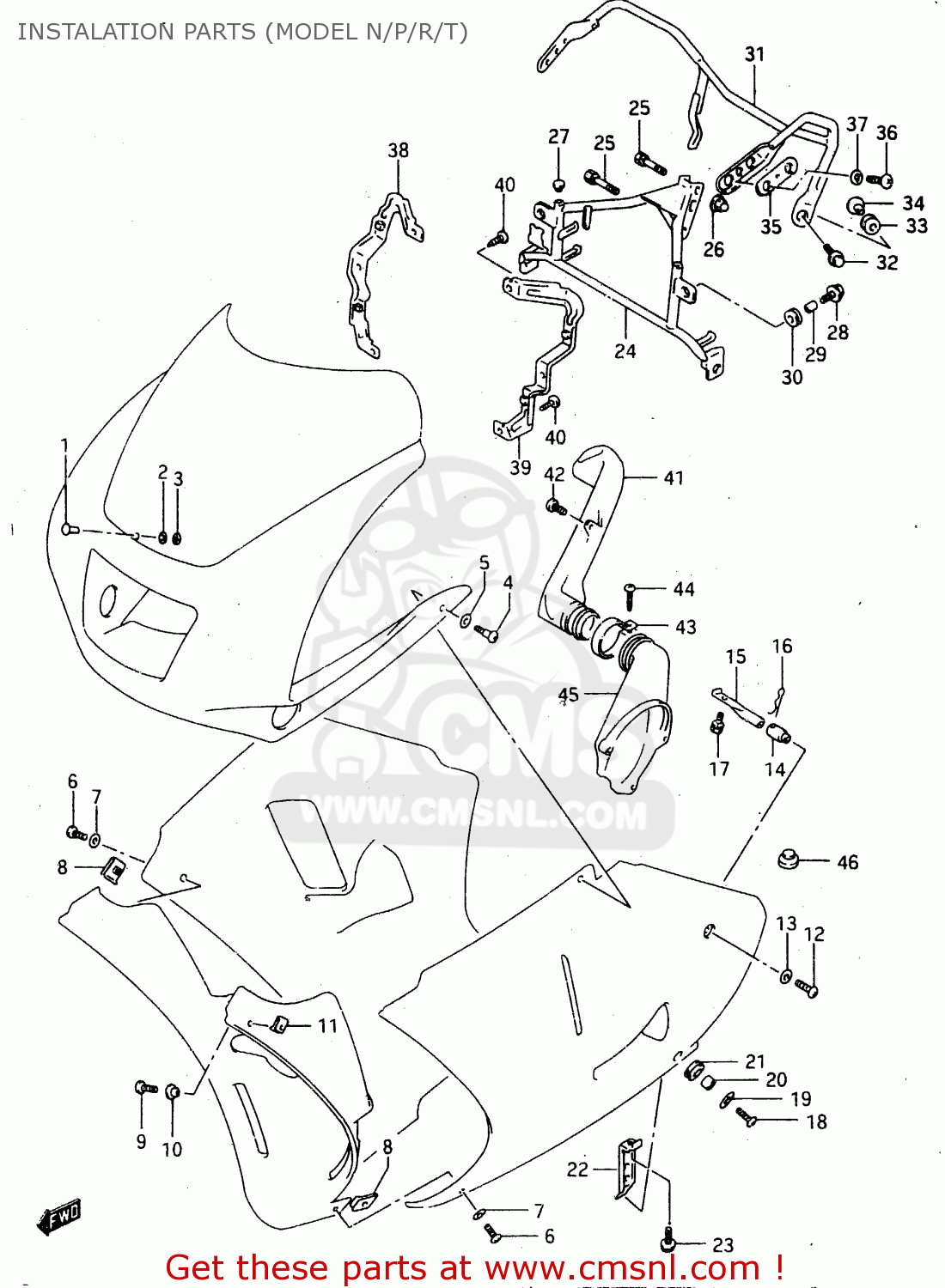

Instalation parts (model n/p/r/t) diagram RGV250 1996 (T) (E24)
INSTALATION PARTS (MODEL N/P/R/T) RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
9461622D00
ref: 1
PIN,WINDSCREEN
€ 2.50
2
0932004007
ref: 2
CUSHION
€ 3.00
3
0914804032
ref: 3
NUT
€ 2.50
4
0913905044
ref: 4
SCREW(5X16)
€ 5.00
5
0916107009
ref: 5
WASHER(7X13X0.6)
€ 3.00
6
0913905043
ref: 6
SCREW(5X16)
€ 5.00
7
0916107009
ref: 7
WASHER(7X13X0.6)
€ 3.00
8
9448412C11
ref: 8
NUT,RH & CTR UNDER COWLING
€ 6.50
9
0324205165
ref: 9
MODEL N/P
SCREW
€ 1.50
9
0324105163
ref: 9
MODEL R/T
SCREW
€ 1.50
10
0916105017
ref: 10
WASHER(5.2X14X1.5)
€ 3.00
11
0914805004
ref: 11
NUT
€ 1.50
12
0913906053
ref: 12
SCREW(6X18)
€ 4.50
13
0916006053
ref: 13
WASHER
€ 2.00
14
9452012C00
ref: 14
PLUG,UNDER COWL FTG,CTR
€ 9.00
15
9452212C00
ref: 15
PIPE,UNDER COWL FTG CTR
€ 8.00
16
9452312C00
ref: 16
PIN,UNDER COWLING FITTING PIPE
€ 2.50
17
0113706205
ref: 17
MODEL N
BOLT
€ 2.50
17
0157006207
ref: 17
MODEL P
BOLT
€ 2.50
17
0157006203
ref: 17
MODEL R/T
BOLT
€ 2.50
18
0913906053
ref: 18
SCREW(6X18)
€ 4.50
19
0916006056
ref: 19
WASHER(6.5X18X1)
€ 2.00
20
0918006114
ref: 20
SPACER (6.1X9X10)
€ 3.00
21
0932009016
ref: 21
CUSHION
€ 2.50
22
9474022D01
ref: 22
E2, E4, E21, E24, E3
BRACKET, UNDER LH
€ 20.00
22
9474022D01
ref: 22
E22
BRACKET, UNDER LH
€ 20.00
22
9474022D10
ref: 22
E22
BRACKET,UNDER COWLING,R
€ 20.00
23
0911606024
ref: 23
BOLT(6X16)
€ 2.00
24
9451022D01
ref: 24
BRACE,COWLING
€ 117.50
25
0113708355
ref: 25
MODEL N
BOLT
€ 2.00
25
0157008357
ref: 25
MODEL P
BOLT
€ 2.00
25
0157008353
ref: 25
MODEL R/T
BOLT
€ 2.00
26
0831321085
ref: 26
MODEL N
NUT ,8MM
€ 2.50
26
0831320087
ref: 26
MODEL P
NUT
€ 2.50
26
0831320083
ref: 26
MODEL R/T
NUT
€ 2.50
27
0925008013
ref: 27
CAP(OD:12)
€ 2.00
28
0911606143
ref: 28
BOLT 6X20
€ 2.00
29
0918006114
ref: 29
SPACER (6.1X9X10)
€ 3.00
30
0932008047
ref: 30
CUSHION
€ 4.00
31
9452022D01
ref: 31
BRACE,RR VIEW MIRRORR
€ 102.00
32
0911606143
ref: 32
BOLT 6X20
€ 2.00
33
0932009009
ref: 33
CUSHION
€ 5.00
34
0916906062
ref: 34
WASHER
€ 3.00
35
9457622D00
ref: 35
CUSHION,RR VIEW MIRRORR
€ 6.00
36
0913606004
ref: 36
SCREW(6X12)
€ 2.00
37
0916106023
ref: 37
WASHER(6.2X19X1.5)
€ 3.50
38
9441822D00
ref: 38
BRACKET,HEADLAMP FIT,R
€ 26.00
39
9441922D00
ref: 39
BRACKET,HEADLAMP FIT,L
€ 22.50
40
0354105165
ref: 40
MODEL N/P
SCREW
€ 1.50
40
0354105163
ref: 40
MODEL R/T
SCREW
€ 1.50
41
9445412C01
ref: 41
BODY,AIR DUCT COWL NO.1
€ 29.50
42
0214205124
ref: 42
MODEL N
SCREW, FRONT & REAR
€ 1.50
42
0214205127
ref: 42
MODEL P
SCREW
€ 1.50
42
0214205123
ref: 42
MODEL R/T
SCREW 5X12
€ 1.50
43
0940236403
ref: 43
CLAMP
€ 4.50
44
0321104255
ref: 44
MODEL N/P
SCREW 4X25
€ 2.00
44
0321104253
ref: 44
MODEL R/T
SCREW
€ 2.00
45
9445522D00
ref: 45
BODY,AIR DUCT COWL NO.2
€ 31.00
46
0932110018
ref: 46
CUSHION
€ 5.00
