REAR MASTER CYLINDER
RGV250 1996 (T) (E24)

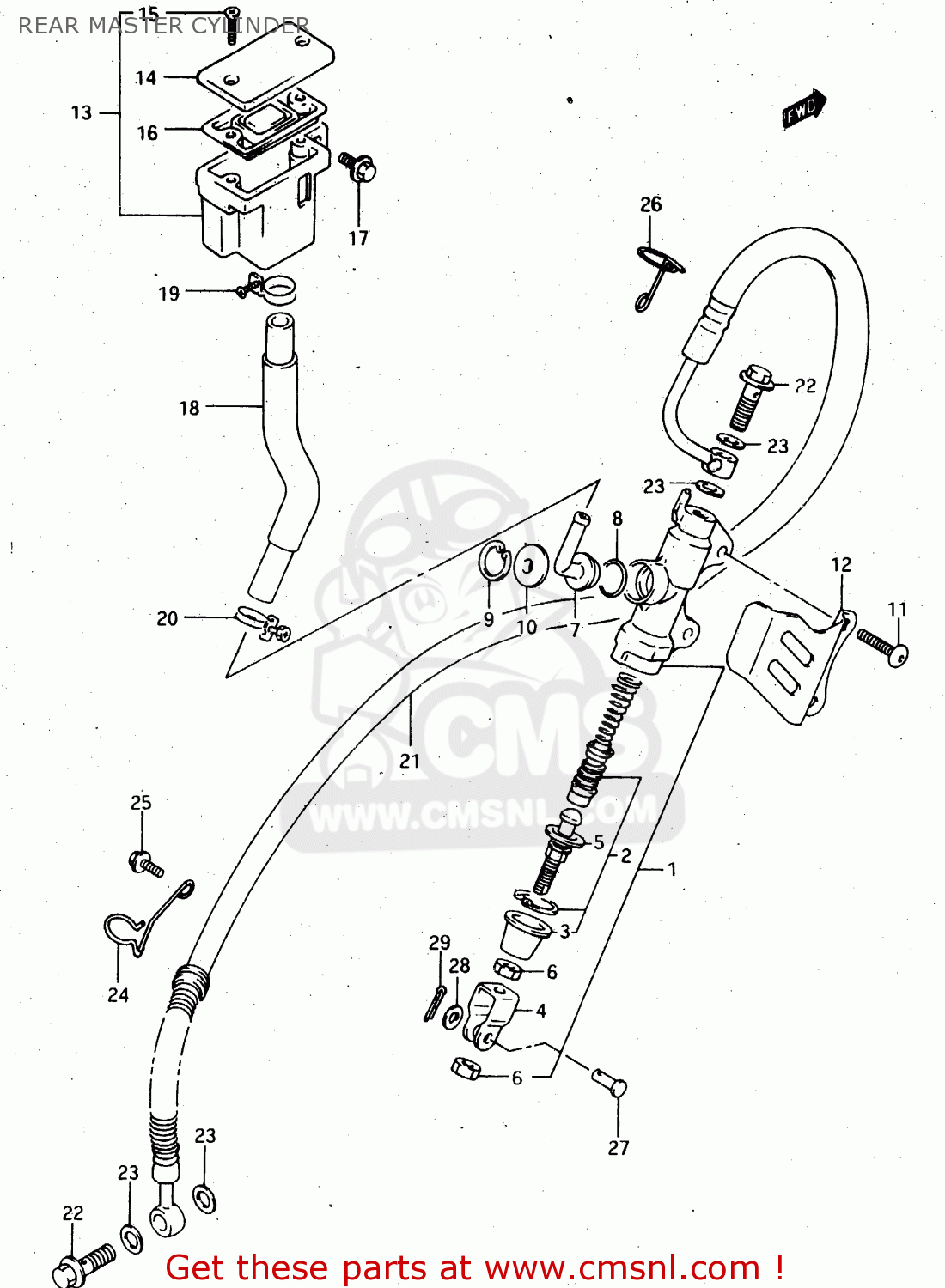

Rear master cylinder diagram RGV250 1996 (T) (E24)
REAR MASTER CYLINDER RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
6960022D00
ref: 1
CYLINDER ASSY,RR MASTER
€ 175.00
2
6960004820
ref: 2
PISTON/CUP SET
€ 31.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969227A30
ref: 4
YOKE
€ 12.50
5
6967022D00
ref: 5
ROD,PUSH
€ 23.50
6
6969305A00
ref: 6
NUT
€ 1.50
7
6967200B20
ref: 7
CONNECTOR
€ 5.00
8
6968634200
ref: 8
O RING
€ 3.50
9
6967400B20
ref: 9
CIRCLIP
€ 3.00
10
5967317C00
ref: 10
COVER,DUST
€ 7.00
11
0913906065
ref: 11
BOLT,6X30
€ 3.00
12
6964122D01
ref: 12
COVER,RR MASTER CYLINDER
€ 19.50
13
6974024A00
ref: 13
MODEL M/N
TANK ASSEMBLY,RESERVOIR
€ 99.50
13
6974024A01
ref: 13
MODEL P/R/T
TANK ASSY,RESERVOIR
€ 99.50
14
6966924A01
ref: 14
MODEL M/N
CAP
€ 12.00
14
5966905D00
ref: 14
MODEL P/R/T
CAP
€ 13.50
15
6968904A00
ref: 15
SCREW
€ 2.00
16
5966704700
ref: 16
DIAPHRAGM
€ 8.00
17
0151706128
ref: 17
MODEL M/N/P
BOLT
€ 2.50
17
0155006123
ref: 17
MODEL R/T
BOLT
€ 2.50
18
6973122D00
ref: 18
HOSE,RESERVOIR TANK
€ 19.50
19
0940016302
ref: 19
CLAMP
€ 4.50
20
0940014301
ref: 20
CLAMP
€ 3.00
21
6948022D01
ref: 21
MODEL M/N
HOSE,RR.BRK.
€ 106.50
21
6948022D10
ref: 21
MODEL P/R/T
HOSE,RR BRAKE
€ 106.50
22
0936010033
ref: 22
MODEL M/N/P
BOLT 10X1.25X24
€ 5.00
22
0936010040
ref: 22
MODEL R/T
BOLT UNION
€ 5.00
23
0916110009
ref: 23
WASHER(10X15X1.5)
€ 2.00
24
6924322D10
ref: 24
GUIDE, BRAKE HOSE NO.2
€ 7.00
25
0117406165
ref: 25
MODEL M/N/P
BOLT
€ 2.50
25
0158006163
ref: 25
MODEL R/T
BOLT
€ 2.50
26
6924322D21
ref: 26
GUIDE, BRAKE HOSE NO.1
€ 4.00
27
0920006037
ref: 27
PIN
€ 5.00
28
0832221067
ref: 28
MODEL M/N/P
WASHER
€ 2.00
28
0832201063
ref: 28
MODEL R/T
WASHER
€ 2.00
29
0411120158
ref: 29
PIN
€ 1.50
