CARBURETOR (EXCEPT MODEL N/P E22)
RGV250 1996 (T) (E24)

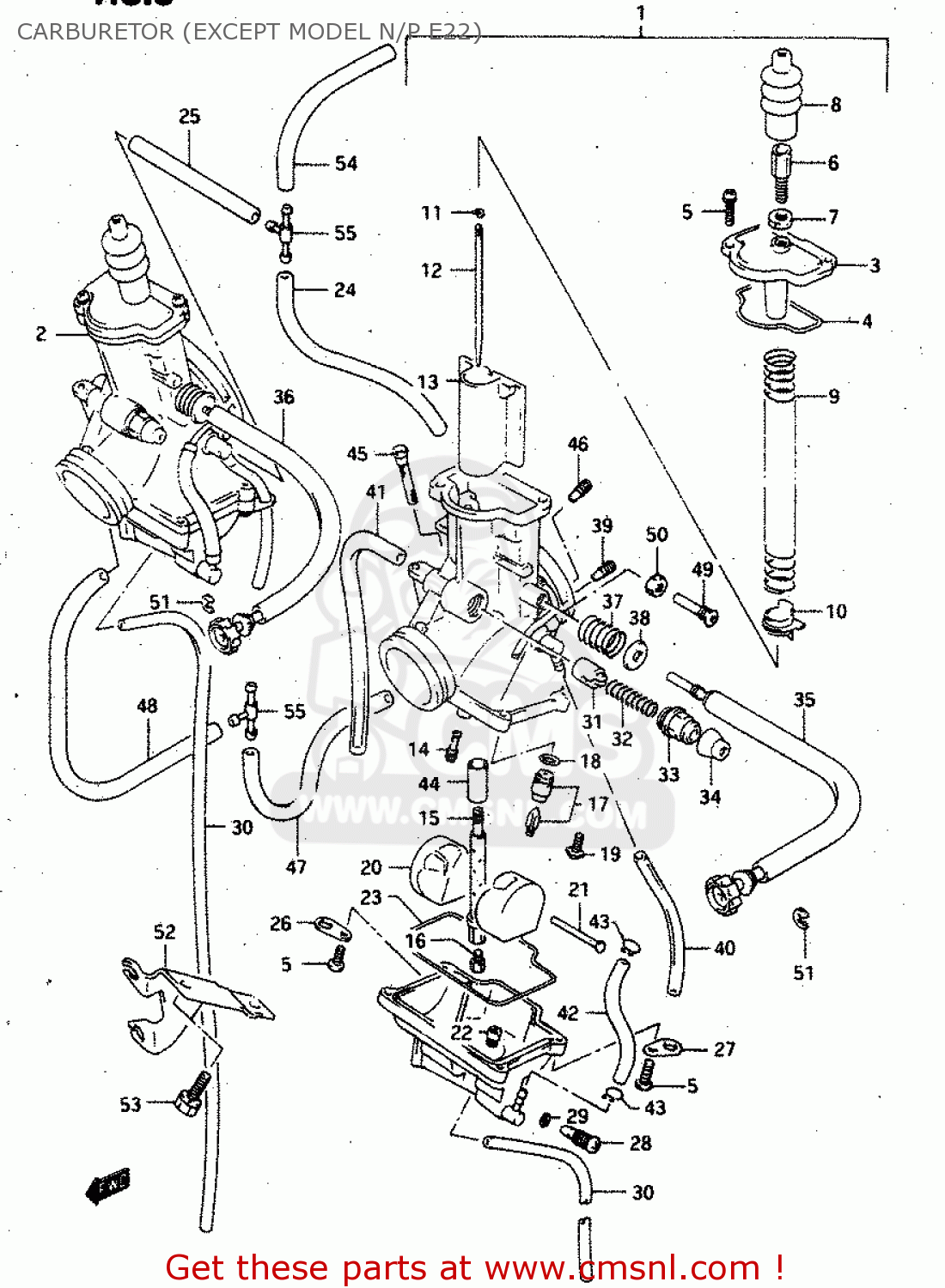

Carburetor (except model n/p e22) diagram RGV250 1996 (T) (E24)
CARBURETOR (EXCEPT MODEL N/P E22) RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
1320122D40
ref: 1
E1
CARBURETOR ASSY, LH
€ 0.00
1
1320122D20
ref: 1
E2, E4, E21, E24, E34
CARBURETOR ASSY, LH
€ 415.50
1
1320122D30
ref: 1
MODEL M E22
CARBURETOR ASSY, LH
€ 0.00
2
1320222D40
ref: 2
E1
CARBURETOR ASSY, RH
€ 0.00
2
1320222D20
ref: 2
E2, E4, E21, E24, E34
CARBURETOR ASSY, RH
€ 415.50
2
1320222D30
ref: 2
MODEL M E22
CARBURETOR ASSY, RH
€ 0.00
3
1326112C60
ref: 3
CAP, TOP
€ 18.50
4
1325126C00
ref: 4
O RING,TOP CAP
€ 9.50
5
0211204123
ref: 5
SCREW
€ 1.50
6
1357741612
ref: 6
ADJUSTER,CABLE
€ 8.00
7
1366116600
ref: 7
NUT
€ 5.00
8
1368141510
ref: 8
CAP,CABLE ADJUSTER
€ 11.00
9
1357312C20
ref: 9
E1
SPRING
€ 0.00
9
1357322D00
ref: 9
E2, E4, E21, E22, E24, E34
SPRING
€ 10.50
10
1342426C00
ref: 10
RING
€ 7.50
11
1339431210
ref: 11
CLIP,NEEDLE
€ 3.50
12
1338322D00
ref: 12
E1
NEEDLE,JET
€ 12.50
12
1338322D10
ref: 12
E1
NEEDLE,JET
€ 16.50
12
1338322D20
ref: 12
E2, E4, E21, E22, E24, E34
NEEDLE,JET
€ 15.00
13
1355112C00
ref: 13
VALVE,PISTON(CA:1.5)
€ 167.50
14
0949227003
ref: 14
JET,PILOT(27.5)
€ 12.00
14
0949220008
ref: 14
E22
JET,PILOT 20
€ 10.00
15
0949400614
ref: 15
JET,NEEDLE(O-8)
€ 26.00
15
0949400615
ref: 15
E22
JET,NEEDLE(O-9)
€ 26.00
15
0949400668
ref: 15
E22
JET,NEEDLE(P-0)
€ 31.00
16
0949154002
ref: 16
E1
JET,MAIN(270)
€ 11.50
16
0949154002
ref: 16
E2, E4, E21, E22, E24, E34
JET,MAIN(270)
€ 11.50
16
0949156003
ref: 16
E2, E4, E21, E22, E24, E34
JET,MAIN(280)
€ 14.50
17
1337022D00
ref: 17
VALVE ASSY,NEEDLE
€ 68.50
18
1337444080
ref: 18
O-RING,NEEDLE VALVE
€ 6.00
19
1360243410
ref: 19
SCREW
€ 2.50
20
1325012C00
ref: 20
FLOAT
€ 41.50
21
1325492311
ref: 21
PIN,FLOAT
€ 2.00
22
0949155004
ref: 22
JET,MAIN(55)
€ 11.50
22
0949155007
ref: 22
E2, E4, E21, E22, E24, E34
JET,POWER,55
€ 11.50
22
0949145002
ref: 22
E1
JET(45)
€ 9.50
22
0949135012
ref: 22
E2, E4, E21, E22, E24, E34
JET,POWER(35)
€ 11.50
23
1367212C00
ref: 23
GASKET,FLOAT CAHMBER (NAS)
€ 13.00
24
0935235653600
ref: 24
LH, L:600->175
HOSE(3.5X6.5X600)
€ 12.50
25
0935235653600
ref: 25
RH, L:600->100
HOSE(3.5X6.5X600)
€ 12.50
26
1369336500
ref: 26
PLATE,CARBURETOR
€ 3.50
27
1369330010
ref: 27
PLATE
€ 4.00
28
1324702340
ref: 28
PLUG,DRAIN
€ 5.50
28
1324713A00
ref: 28
SCREW,DRAIN
€ 5.50
29
1327802340
ref: 29
O RING
€ 1.50
30
1368440A00
ref: 30
L:650->475
HOSE(3X5X650)
€ 7.50
31
1341101010
ref: 31
PLUNGER,STARTER
€ 14.00
32
1341737200
ref: 32
SPRING
€ 3.00
33
1341843410
ref: 33
HOLDER,GUIDE
€ 6.50
34
1368104010
ref: 34
CAP
€ 3.00
35
1326712C00
ref: 35
E1
ADJUSTER,THROTTLE STOP
€ 50.00
36
1326712C10
ref: 36
E1
ADJUSTER,THROTTLE STOP
€ 43.00
36
1326712C10
ref: 36
E2, E4, E21, E22, E24, E34
ADJUSTER,THROTTLE STOP
€ 43.00
37
1326812C00
ref: 37
E1
SPRING
€ 6.00
37
1326812C00
ref: 37
E2, E4, E21, E22, E24, E34
SPRING
€ 6.00
38
1354712C00
ref: 38
E1
WASHER
€ 7.00
38
1354712C00
ref: 38
E2, E4, E21, E22, E24, E34
WASHER
€ 7.00
39
0949326004
ref: 39
E1, E22
JET,AIR(1.3)
€ 14.50
39
0949322005
ref: 39
E2, E4, E21, E24, E34
JET,AIR(1.1)
€ 12.00
40
1368440A00
ref: 40
L:650->100
HOSE(3X5X650)
€ 7.50
41
0935240703600
ref: 41
L:600->90
HOSE(4X7X600)
€ 3.00
42
1321812C20
ref: 42
HOSE SET
€ 19.00
43
0940106101
ref: 43
CLIP
€ 2.50
44
1345212C00
ref: 44
RING
€ 5.50
45
1323612C00
ref: 45
FILTER
€ 5.00
46
0949360004
ref: 46
JET,AIR(0.6)
€ 11.00
47
0935235653600
ref: 47
LH, L:600->125
HOSE(3.5X6.5X600)
€ 12.50
48
0935235653600
ref: 48
RH, L:600->100
HOSE(3.5X6.5X600)
€ 12.50
49
1324722D00
ref: 49
E2, E4, E21, E22, E24, E34
SCREW,ADJUSTER
€ 6.00
50
1360747070
ref: 50
E2, E4, E21, E22, E24, E34
NUT
€ 4.00
51
1361712C00
ref: 51
E RING
€ 2.50
52
1362112C00
ref: 52
BRACKET,ADJUSTER
€ 19.00
53
0157006167
ref: 53
MODEL M/N/P
BOLT
€ 2.50
53
0155006203
ref: 53
MODEL R/T
BOLT
€ 2.50
54
0935235653600
ref: 54
L:600->80
HOSE(3.5X6.5X600)
€ 12.50
55
1368516720
ref: 55
3-WAY
€ 3.50
