CONTROL CABLE
RGV250 1996 (T) (E24)

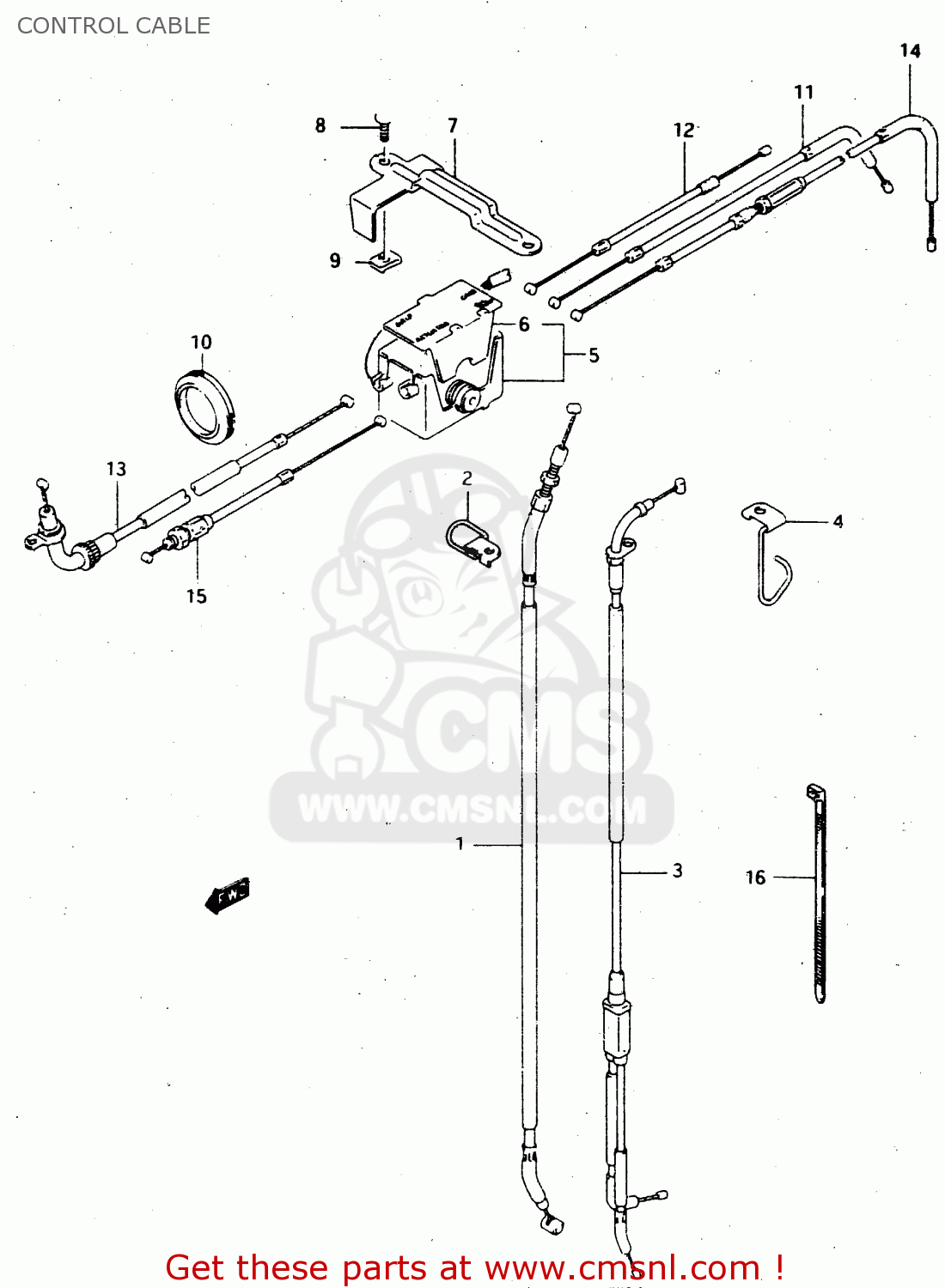

Control cable diagram RGV250 1996 (T) (E24)
CONTROL CABLE RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
5820022D11
ref: 1
CABLE ASSY,CLUTCH
€ 49.50
2
5829022D01
ref: 2
GUIDE, CLUTCH CABLE
€ 8.00
3
5841022D01
ref: 3
CABLE,STARTER
€ 44.50
4
5847012C00
ref: 4
GUIDE,STARTER CABLE
€ 7.50
5
3390012852
ref: 5
SENSOR SET, THROTTLE
€ 236.50
6
5837312C01
ref: 6
COVER,THROTTLE CABLE CONN
€ 8.00
7
5837412C11
ref: 7
MODEL M/N/P, MODEL M
PLATE, CONNECTO BOX
€ 13.50
7
5837022D00
ref: 7
MODEL N/P E22
PLATE,THROTTLE CABLE CONN BOX
€ 13.50
7
5837022D00
ref: 7
MODEL R/T
PLATE,THROTTLE CABLE CONN BOX
€ 13.50
8
0324205129
ref: 8
MODEL M/N/P
SCREW
€ 1.50
8
0324105123
ref: 8
MODEL R/T
SCREW L:12
€ 1.50
9
0914805017
ref: 9
NUT
€ 2.50
10
0932037001
ref: 10
GROMMET
€ 6.50
11
5831012C02
ref: 11
CABLE,THROTTLE NO.1
€ 13.00
12
5835012C03
ref: 12
CABLE,THROTTLE NO.2
€ 14.50
13
5836022D00
ref: 13
CABLE,THROTTLE NO.3
€ 29.50
14
5838022D00
ref: 14
CABLE,THROTTLE NO.4
€ 29.50
15
5839012C01
ref: 15
CABLE,THROTTLE NO.5
€ 28.00
16
0940720405
ref: 16
MODEL R/T
CLAMP
€ 4.50
