HEADLAMP (MODEL T)

RGV250 1996 (T) (E24)

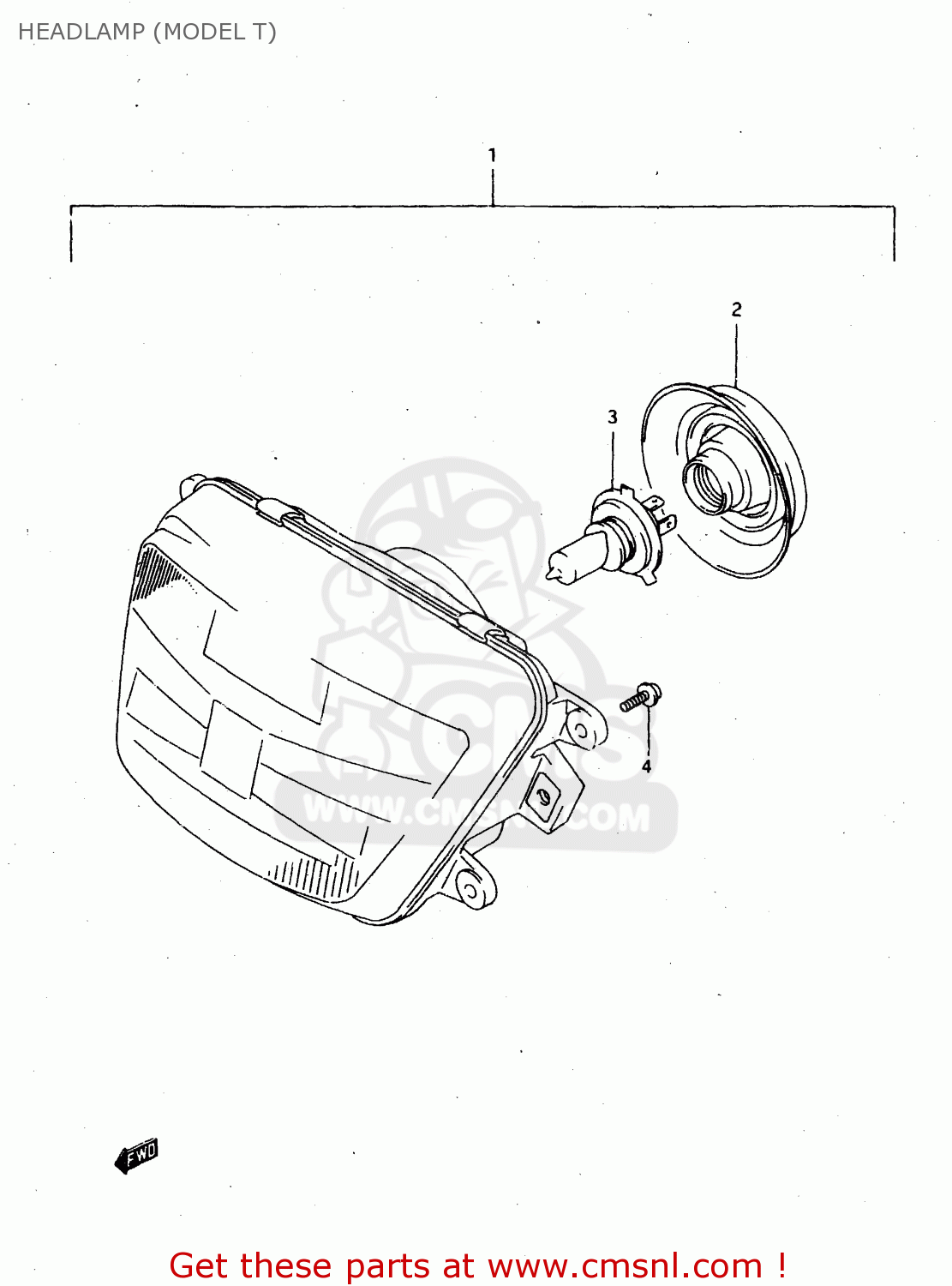

Headlamp (model t) diagram RGV250 1996 (T) (E24)

HEADLAMP (MODEL T) RGV250 1996 (T) (E24)

HEADLAMP (MODEL T) RGV250 1996 (T) (E24)

prices are in EUR

ref

part #

description

quantity

1

3510019D10
ref: 1

HEADLAMP ASSEMBLY

€ 318.50

2

3517326B20
ref: 2

COVER,SOCKET

€ 14.50

3

0947112060
ref: 3

BULB(12V60/55W,H4)

€ 8.00

4

0214205163
ref: 4

SCREW

€ 2.50
