GEAR SHIFTING
RGV250 1996 (T) (E24)

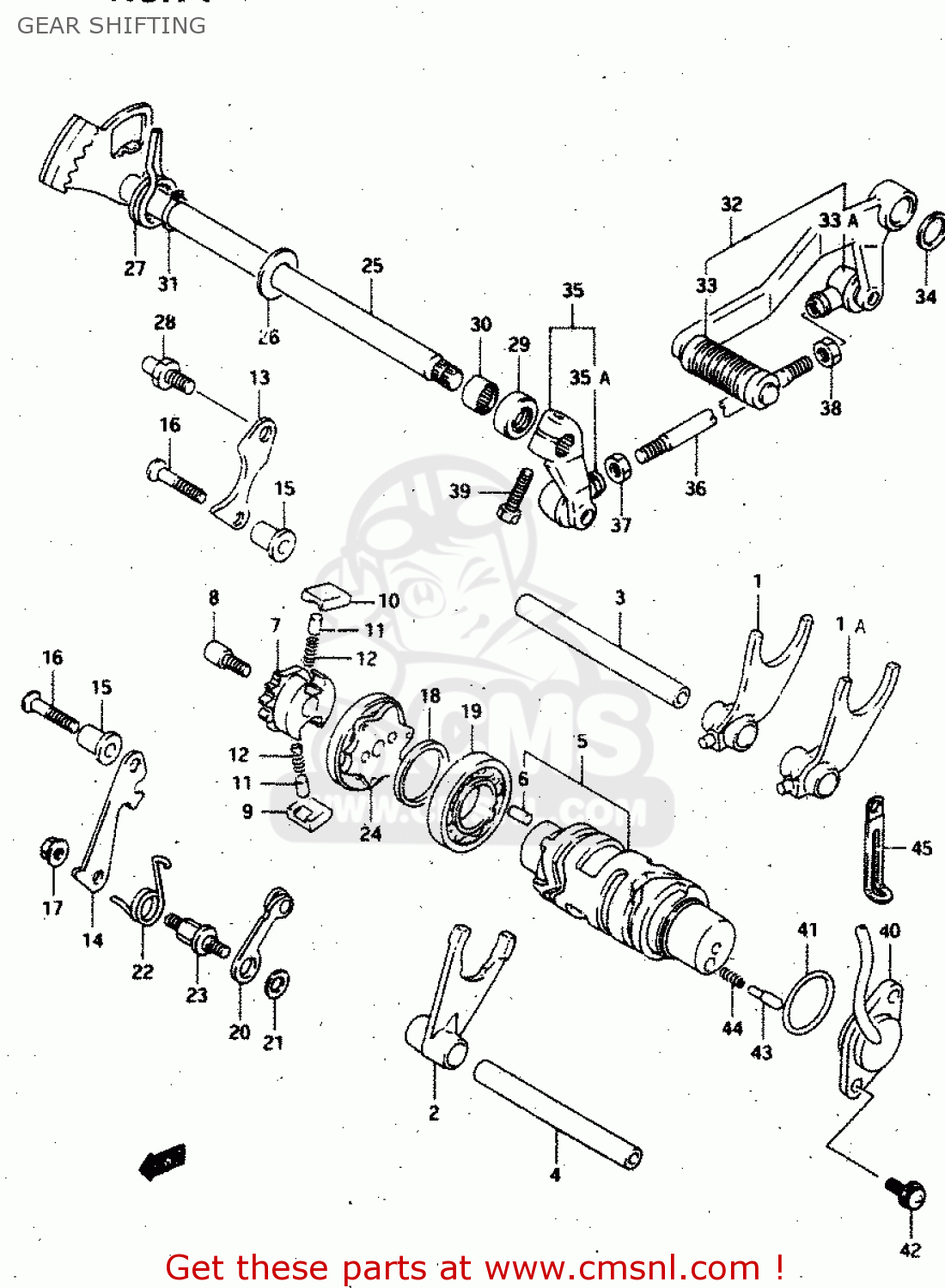

Gear shifting diagram RGV250 1996 (T) (E24)
GEAR SHIFTING RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
2521113A00
ref: 1
FORK,GEAR SHIFT NO.1
€ 85.00
1A
2521122D00
ref: 1A
FORK,GEAR SHIFT NO.2
€ 69.50
2
2523122D30
ref: 2
FORK,GEAR SHIFT NO.3
€ 80.50
3
2541116701
ref: 3
MODEL M/N
SHAFT,GEAR SHIFT FORK(L:109)
€ 11.50
3
2541105200
ref: 3
MODEL P
SHAFT,GEAR SHIFT FORK
€ 11.50
3
2541105201
ref: 3
MODEL R/T
SHAFT,GEAR SHIFT FORK
€ 11.50
4
2541114310
ref: 4
MODEL M/N/P
SHAFT,GEAR SHIFT FORK
€ 14.50
4
2541114311
ref: 4
MODEL R/T
SHAFT,GEAR SHIFT FORK
€ 14.50
5
2531012C00
ref: 5
CAM,GEAR SHIFT
€ 146.50
6
0422104089
ref: 6
PIN
€ 1.50
7
2532231301
ref: 7
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
8
2531212C00
ref: 8
PIN,SHIFT CAM DRIVEN GEAR
€ 6.00
9
2532334201
ref: 9
PAWL,GEAR SHIFT NO.1
€ 6.00
10
2532434201
ref: 10
PAWL,GEAR SHIFT NO.2
€ 6.00
11
0926105003
ref: 11
PIN(5X8)
€ 1.50
12
0944004003
ref: 12
SPRING
€ 1.50
13
2533112C00
ref: 13
LIFTER,GEAR SHIFT POLE
€ 3.50
14
2534112C00
ref: 14
GUIDE,GEAR SHIFT CAM
€ 8.50
15
0918006202
ref: 15
SPACER(6.1X10X16)
€ 4.00
16
0212206308
ref: 16
MODEL M/N/P
SCREW
€ 2.00
16
0212206303
ref: 16
MODEL R/T
SCREW
€ 2.00
17
0915906017
ref: 17
MODEL M/N/P
NUT
€ 2.50
17
0831610063
ref: 17
MODEL R/T
NUT
€ 2.50
18
0916025059
ref: 18
WASHER(25X32X3)
€ 5.00
19
0926225002
ref: 19
MODEL M/N/P
BEARING
€ 24.00
19
0926225006
ref: 19
MODEL R/T
BEARING(25X47X8)
€ 24.00
20
2535012C00
ref: 20
STOPPER,SHIFT CAM
€ 10.00
21
0821106141
ref: 21
WASHER
€ 2.50
22
2535512C00
ref: 22
SPRING, STOPPE
€ 3.50
23
2535612C00
ref: 23
SUPPORT,CAM STOPPER ARM
€ 9.50
24
2538038A02
ref: 24
PLATE,GEAR SHIFT CAM
€ 15.00
25
2551022D01
ref: 25
SHAFT,GEAR SHIFT
€ 76.00
26
0821114221
ref: 26
WASHER,THRUST
€ 3.50
27
0944420001
ref: 27
SPRING
€ 5.00
28
2567136A00
ref: 28
STOPPER,GEAR SHIFT ARM
€ 3.00
29
0928314006
ref: 29
SEAL,OIL(14X22X6)
€ 6.50
30
0926314027
ref: 30
<-09263-14028
BEARING(14X20X12)
€ 11.00
31
0833131146
ref: 31
CIRCLIP
€ 2.00
32
2560022D00
ref: 32
MODEL M
LEVER ASSY, GEAR SHIFT
€ 131.00
32
2560006C00
ref: 32
MODEL N/P/R/T
LEVER ASSY,GEAR SHIFT
€ 131.00
33
2565220C00
ref: 33
RUBBER,GEAR SHIFT PEDAL
€ 8.00
33A
2552647000
ref: 33A
COVER,DUST
€ 3.50
34
0916418005
ref: 34
WASHER
€ 3.00
35
2552032C00
ref: 35
ARM,GEAR SHIFT LINK
€ 46.00
35A
2552647000
ref: 35A
COVER,DUST
€ 3.50
36
2552522D01
ref: 36
ROD,GEAR SHIFT LINK
€ 52.50
37
0831011068
ref: 37
MODEL M/N/P
NUT
€ 2.50
37
0831000063
ref: 37
MODEL R/T
NUT 6MM
€ 2.00
38
0914006011
ref: 38
NUT
€ 1.50
39
0110706207
ref: 39
MODEL M/N/P
BOLT
€ 2.00
39
0150006203
ref: 39
MODEL R/T
BOLT
€ 2.00
40
3772012C01
ref: 40
BASE ASSY,NEUTRAL SW
€ 42.00
40
3773022D00
ref: 40
MODEL N/P E22
BASE,SHIFT TER
€ 94.00
41
0928026003
ref: 41
O-RING (D:2.4 ID:26.2)
€ 2.50
42
0211275165
ref: 42
MODEL M/N/P
SCREW
€ 2.50
42
0211275163
ref: 42
MODEL R/T
SCREW
€ 2.50
42
0211205164
ref: 42
MODEL N/P E22
SCREW
€ 2.00
43
0920905011
ref: 43
PIN(5X15.5)
€ 2.00
44
0944004010
ref: 44
SPRING
€ 1.50
45
0940406402
ref: 45
CLAMP
€ 2.50
45
0940406429
ref: 45
CLAMP(L:45)
€ 2.50
