WATER PUMP
RGV250 1996 (T) (E24)

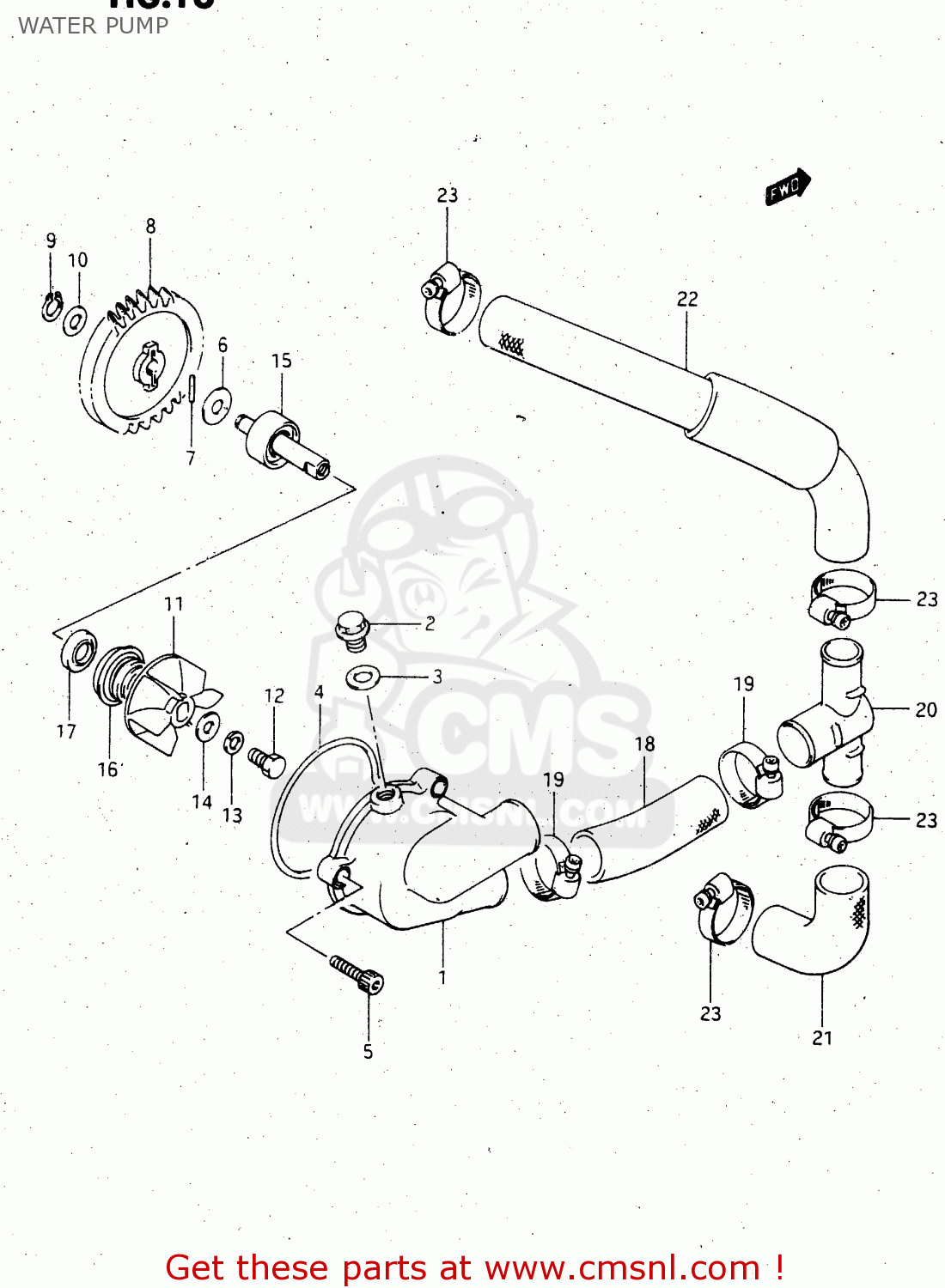

Water pump diagram RGV250 1996 (T) (E24)
WATER PUMP RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
1741012C02
ref: 1
CASE,WATER PUMP
€ 73.50
2
1741520920
ref: 2
BOLT,DRAIN
€ 5.00
3
0916808008
ref: 3
GASKET 8.2X14X1 (NAS)
€ 1.00
4
1743512C00
ref: 4
O RING,WATER PUMP CASE
€ 6.00
5
0711006208
ref: 5
MODEL M/N/P
BOLT ,6X20
€ 3.50
5
0713006203
ref: 5
MODEL R/T
BOLT,CRKCASE,R
€ 3.00
6
0821108201
ref: 6
WASHER
€ 2.00
7
0926102001
ref: 7
PIN(2.5X19.8)
€ 1.50
8
1746112C00
ref: 8
GEAR,WATER PUMP DRIVE(NT:31)
€ 31.00
9
0833131086
ref: 9
CIRCLIP
€ 2.00
10
0916408018
ref: 10
WASHER
€ 3.50
11
1749112C00
ref: 11
IMPELLER,WATER PUMP
€ 11.50
12
0910006099
ref: 12
BOLT(6X13)
€ 2.00
13
0916406006
ref: 13
WASHER
€ 2.50
14
0916806025
ref: 14
GASKET(6X15X2.2) (NAS)
€ 3.00
15
1751022D00
ref: 15
SHAFT,WATER PUMP
€ 122.00
16
1747046A00
ref: 16
SEAL,MECHANICAL
€ 21.50
17
0928310005
ref: 17
SEAL,OIL(10X20X5)
€ 4.50
18
1785712C00
ref: 18
HOSE,WTR PUMP OUTLET
€ 12.50
19
0940230502
ref: 19
MODEL M/N/P
CLAMP
€ 11.50
19
0940232511
ref: 19
MODEL R/T
CLAMP
€ 11.50
20
1789112C00
ref: 20
UNION,WTR HOSE THREE WAY
€ 10.50
21
1785812C00
ref: 21
HOSE,CYLINDER INLET NO.1
€ 12.50
22
1785912C01
ref: 22
HOSE,CYLINDER INLET NO.2
€ 23.50
23
0940228511
ref: 23
CLAMP
€ 8.50
