FRONT CALIPER
RGV250 1996 (T) (E24)

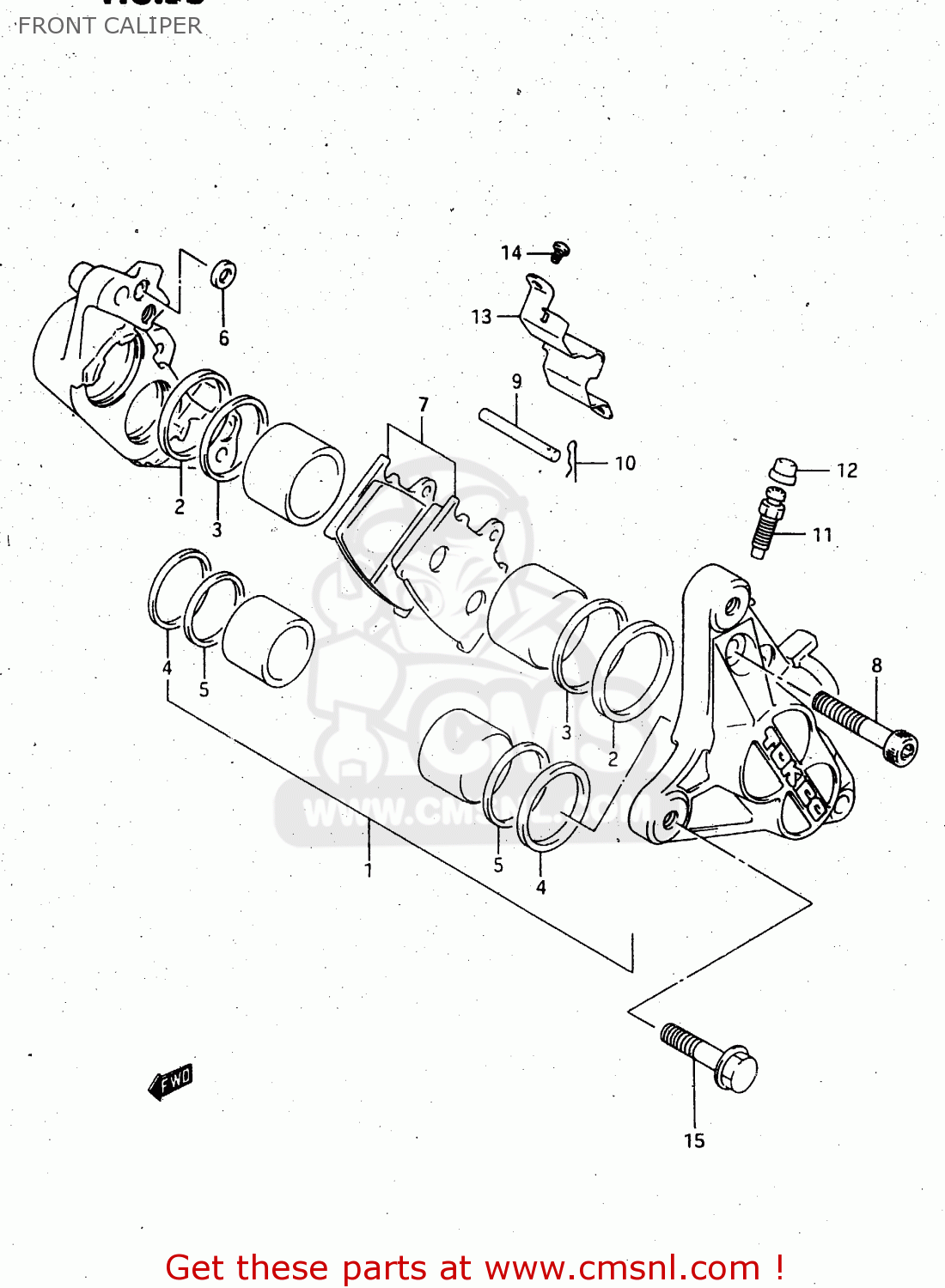

Front caliper diagram RGV250 1996 (T) (E24)
FRONT CALIPER RGV250 1996 (T) (E24)
×
prices are in EUR
ref
part #
description
quantity
0
5910006C70
ref: 0
MODEL M/N
CALIPER ASSY,R
€ 447.50
0
5930006C70
ref: 0
MODEL M/N
CALIPER ASSY,L
€ 574.50
0
5910006C71
ref: 0
MODEL P/R/T
CALIPER ASSY, RH
€ 447.50
0
5930006C71
ref: 0
MODEL P/R/T
CALIPER ASSY,FR,L
€ 574.50
1
5910032811
ref: 1
PISTON SET,BRK
€ 293.00
2
5910739100
ref: 2
SEAL,PISTON
€ 18.00
3
5910836A00
ref: 3
SEAL,WIPER
€ 14.50
4
5910703A00
ref: 4
SEAL
€ 9.00
5
5910832C00
ref: 5
SEAL,WIPER
€ 16.00
6
6910734200
ref: 6
SEAL,JOINT
€ 12.00
7
5910022810
ref: 7
<-59130-22D00
PAD SET
€ 47.00
8
5914500A00
ref: 8
BOLT,CALIPER
€ 18.00
9
6914145000
ref: 9
PIN,PAD
€ 6.50
10
6914245000
ref: 10
CLIP,PAD PIN
€ 4.50
11
5912118410
ref: 11
BLEEDER
€ 8.00
12
5515666310
ref: 12
CAP,BLEEDER PLUG
€ 6.00
13
5915222D00
ref: 13
COVER,DUST,R.
€ 15.00
13
5915122D01
ref: 13
COVER,CALIPER DUST,L
€ 15.00
14
5915322D00
ref: 14
SCREW
€ 4.50
15
0151710308
ref: 15
MODEL M/N/P
BOLT
€ 3.50
15
0155010307
ref: 15
MODEL R/T
BOLT
€ 3.50
