BATTERY

SFV650 GLADIUS 2009 (K9) USA (E03)

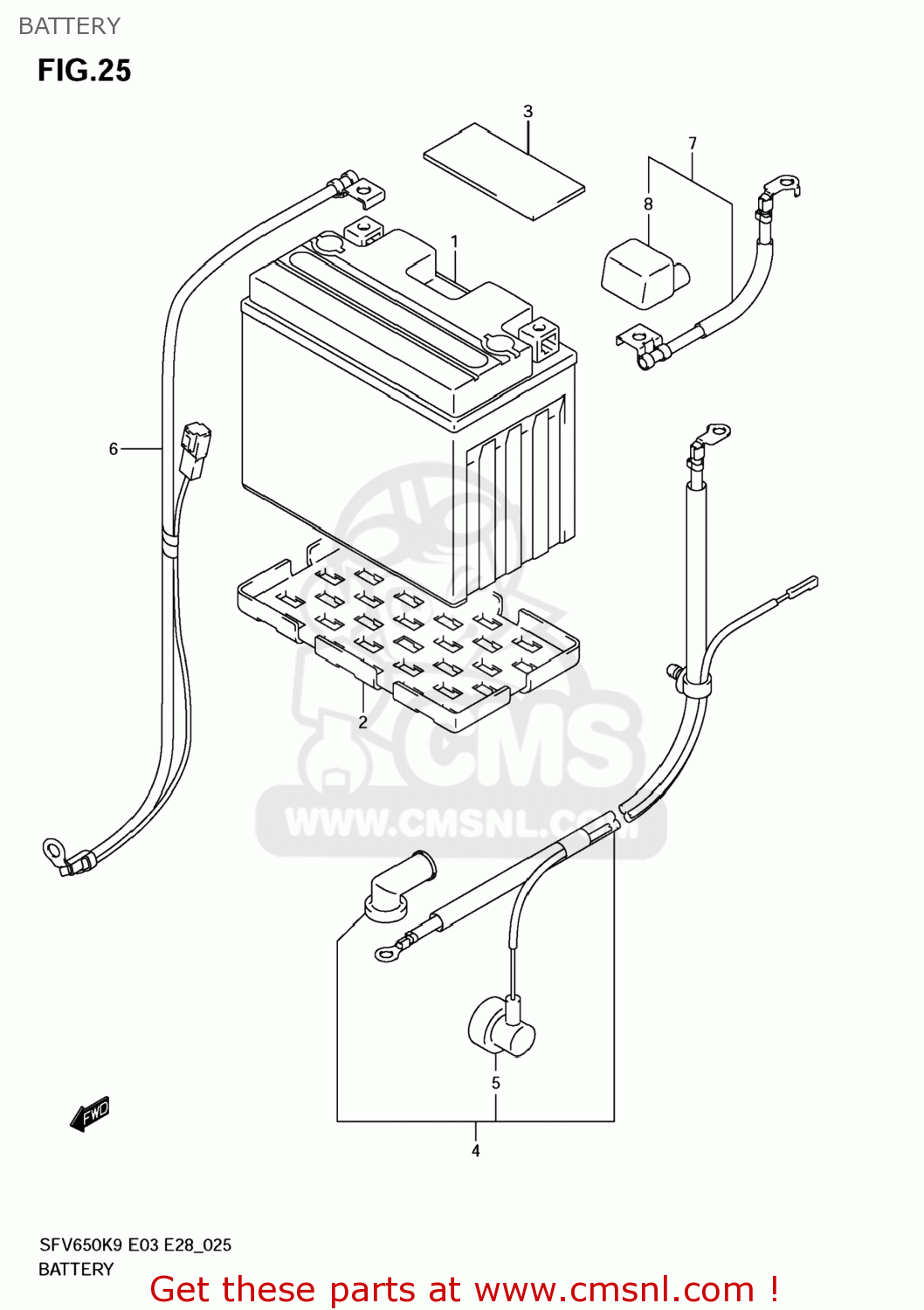

Battery diagram SFV650 GLADIUS 2009 (K9) USA (E03)

BATTERY SFV650 GLADIUS 2009 (K9) USA (E03)

BATTERY SFV650 GLADIUS 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361002F01
ref: 1

BATTERY(YT12A-BS,12V10.5AH)

€ 91.50

2

3365216G00
ref: 2

PROTECTOR,BATTERY

€ 5.50

3

3365228C00
ref: 3

PROTECTOR

€ 2.00

4

3381044H00
ref: 4

WIRE,STARTER MOTOR LEAD

€ 40.00

5

3661843410
ref: 5

CAP,OIL PRESSURE SWITCH

€ 2.50

6

3386044H00
ref: 6

WIRE,BATTERY MINUS LEAD

€ 23.50

7

3382044H10
ref: 7

WIRE,BATTERY PLUS LEAD

€ 22.50

8

3362416G00
ref: 8

CAP,BATTERY PLUS

€ 4.50
