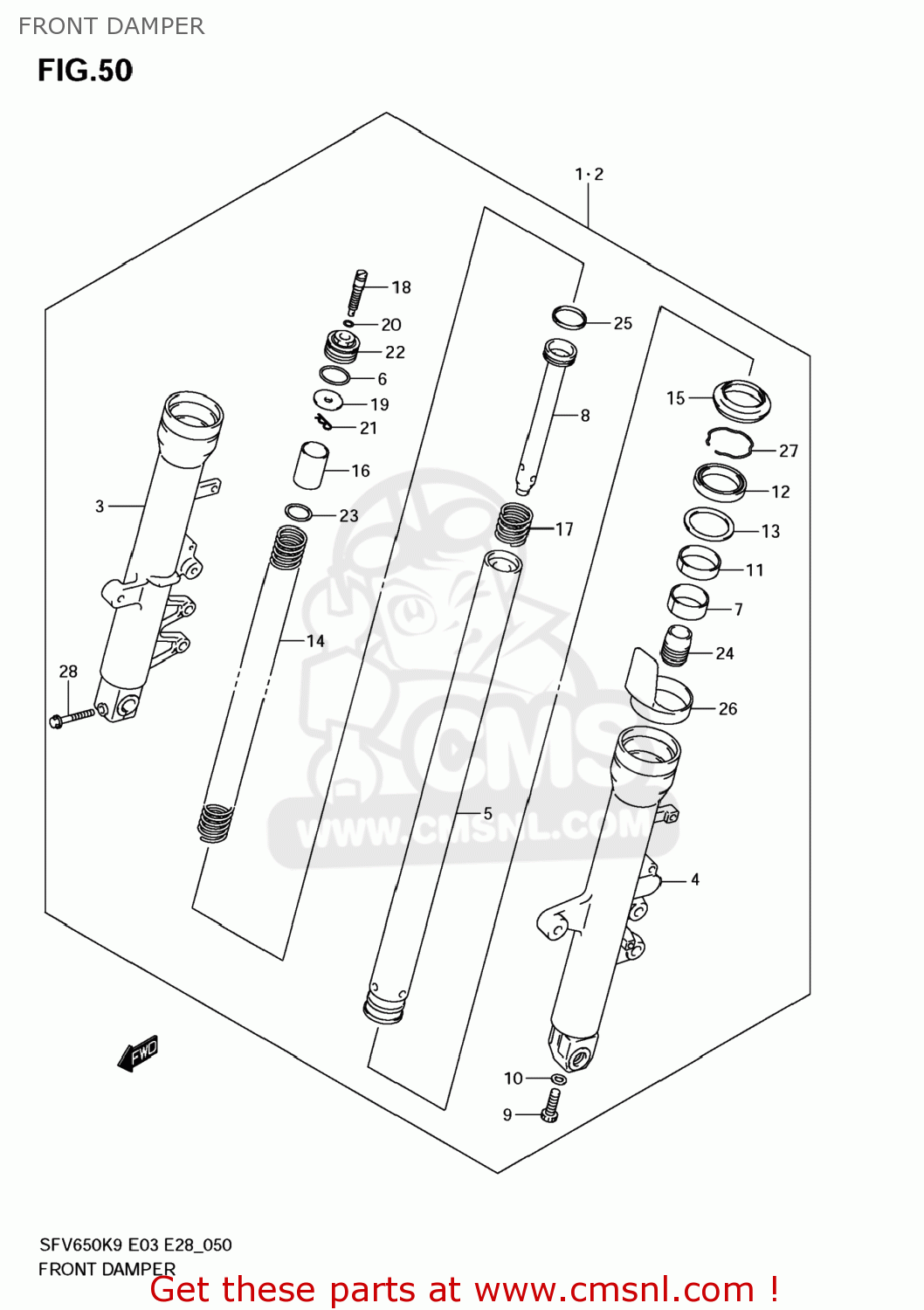

FRONT DAMPER

ref

part #

description

quantity

1

5110344H00
ref: 1

DAMPER ASSY,FR FORK,R

€ 863.00

2

5110444H00
ref: 2

DAMPER ASSY,FR FORK,L

€ 863.00

3

5113017GA0
ref: 3

TUBE,OUTER,R

€ 514.50

4

5114017GA0
ref: 4

TUBE,OUTER,L

€ 514.50

5

5111044H00
ref: 5

TUBE,INNER

€ 303.00

6

5111712C00
ref: 6

O RING

€ 3.00

7

5112144H00
ref: 7

BUSH,SLIDE

€ 15.50

8

5114617G20
ref: 8

CYLINDER

€ 57.50

9

5114748130
ref: 9

BOLT(8X27)

€ 3.50

10

5114836011
ref: 10

GASKET (NAS)

€ 4.00

11

5115201H10
ref: 11

BUSH,GUIDE

€ 15.00

12

5115301H10
ref: 12

SEAL,OIL

€ 20.00

13

5116817G80
ref: 13

SPACER,SEAL

€ 5.50

14

5117144H00
ref: 14

SPRING,FR

€ 31.00

15

5117301H00
ref: 15

SEAL,DUST

€ 9.50

16

5117612C10
ref: 16

COLLAR,SPRING(32.9X34X50)

€ 11.50

17

5117717G50
ref: 17

SPRING,REBOUND

€ 6.50

18

5118517G00
ref: 18

ADJUSTER BOLT,SPRING

€ 25.50

19

5118612C00
ref: 19

SEAT,SPRING

€ 3.50

20

0928009005
ref: 20

O RING(D:1.9,ID:8.6)

€ 4.00

21

5118832B00
ref: 21

PIN,SEAT SPRING

€ 3.50

22

5118912C00
ref: 22

BOLT,FORK

€ 38.50

23

5119219C00
ref: 23

JOINT,SPRING

€ 3.50

24

5119548B30
ref: 24

PIECE,OIL LOCK

€ 24.00

25

5119612C00
ref: 25

RING,PISTON

€ 5.50

26

5120132F00
ref: 26

PROTECTOR

€ 17.00

27

5155638B00
ref: 27

CIRCLIP,FORK OIL SEAL

€ 4.50

28

5116601H10
ref: 28

BOLT

€ 7.00

all assemblies
