FOOTREST
SFV650 GLADIUS 2009 (K9) USA (E03)

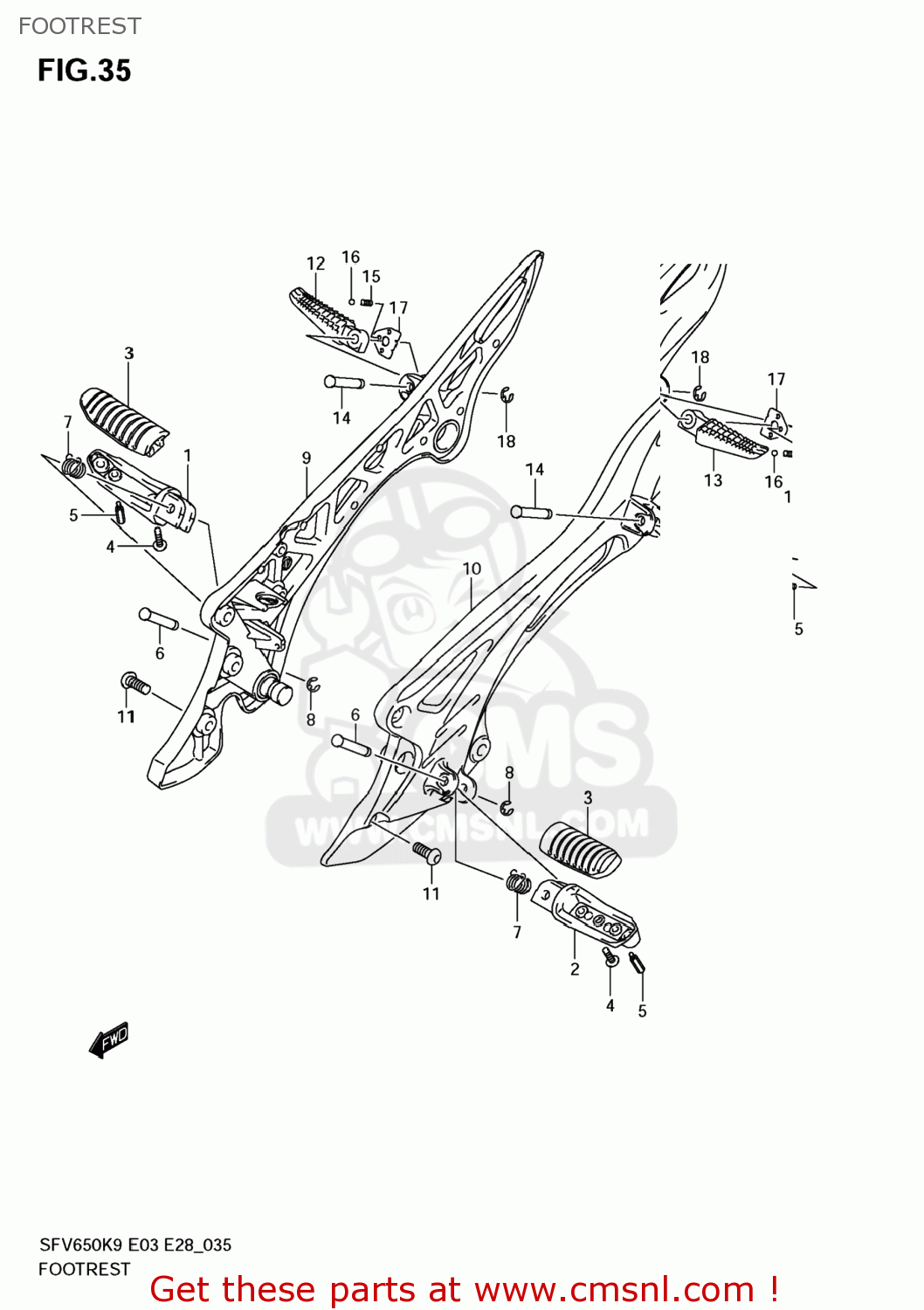

Footrest diagram SFV650 GLADIUS 2009 (K9) USA (E03)
FOOTREST SFV650 GLADIUS 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351144G10
ref: 1
BAR,FR FOOTREST,R
€ 25.50
2
4352144G10
ref: 2
BAR,FR FOOTREST,L
€ 25.50
3
4355044G10
ref: 3
RUBBER,FOOTREST BAR
€ 15.00
4
021420512A
ref: 4
SCREW
€ 1.50
5
4357648B30
ref: 5
SENSOR,FOOTREST
€ 7.50
6
0920808019
ref: 6
PIN
€ 3.00
7
0944814046
ref: 7
SPRING
€ 4.00
8
083321106A
ref: 8
E RING
€ 2.00
9
4351044H00
ref: 9
BRACKET COMP,F
€ 228.00
10
4352144H00
ref: 10
BRACKET,FOOTREST,L
€ 213.00
11
0910608161
ref: 11
BOLT(8X20)
€ 4.00
12
4361137H00
ref: 12
BAR,PILLION FOOTREST,R
€ 23.50
13
4362137H00
ref: 13
BAR,PILLION FOOTREST,L
€ 23.50
14
0920808020
ref: 14
PIN
€ 3.00
15
0944005003
ref: 15
SPRING
€ 1.50
16
0611107004
ref: 16
BALL
€ 1.50
17
4381601H10
ref: 17
PLATE,PILLION FOOTREST
€ 3.50
18
083321106A
ref: 18
E RING
€ 2.00
