HANDLE SWITCH

SFV650 GLADIUS 2009 (K9) USA (E03)

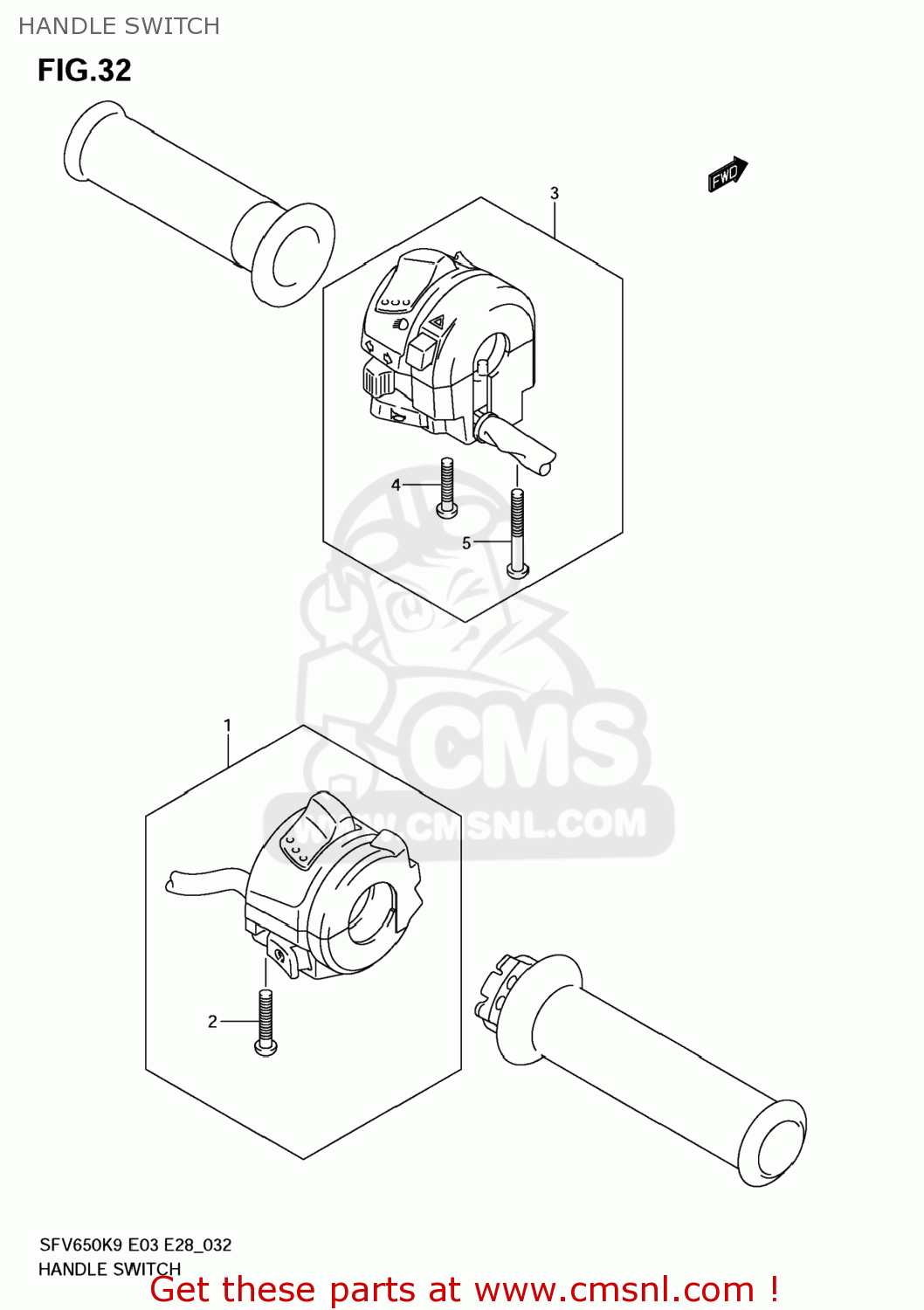

Handle switch diagram SFV650 GLADIUS 2009 (K9) USA (E03)

HANDLE SWITCH SFV650 GLADIUS 2009 (K9) USA (E03)

HANDLE SWITCH SFV650 GLADIUS 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3720038G30
ref: 1
37200-29G80

SWITCH ASSY,HANDLE,R

€ 158.00

2

021120530B
ref: 2

SCREW

€ 1.50

3

3740029G11
ref: 3

SWITCH ASSY,HANDLE,L

€ 211.00

4

021120525B
ref: 4

SCREW

€ 1.50

5

021120545B
ref: 5

SCREW

€ 4.00
