OIL PUMP
SFV650 GLADIUS 2009 (K9) USA (E03)

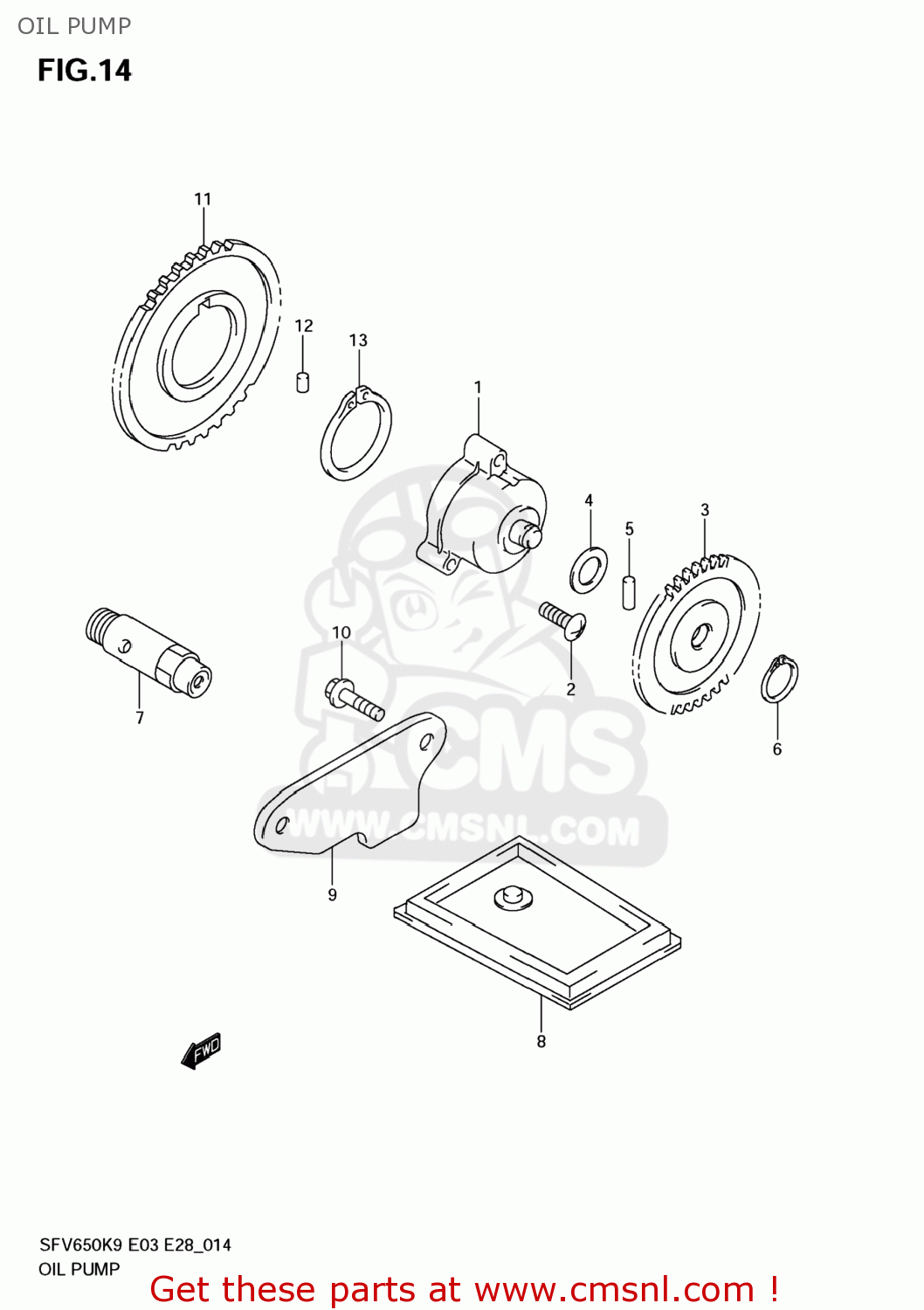

Oil pump diagram SFV650 GLADIUS 2009 (K9) USA (E03)
OIL PUMP SFV650 GLADIUS 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1640020F00
ref: 1
PUMP ASSY,ENGINE OIL
€ 135.50
2
071300625A
ref: 2
BOLT
€ 2.50
3
1633119F00
ref: 3
GEAR,ENG OIL PUMP DRIVEN
€ 18.50
3
1633119F00
ref: 3
GEAR,ENG OIL PUMP DRIVEN
€ 18.50
4
0918110158
ref: 4
SHIM(10X18X0.5)
€ 2.50
5
0926104001
ref: 5
PIN(4X18.5)
€ 1.50
6
083313110A
ref: 6
CIRCLIP
€ 2.00
7
1644017C20
ref: 7
VALVE ASSY,OIL RELIEF
€ 39.00
8
1652032E00
ref: 8
STRAINER,ENGINE OIL
€ 11.50
9
1652317G00
ref: 9
CAP,OIL STRAINER
€ 7.50
10
015470612A
ref: 10
BOLT
€ 2.00
11
1632119F00
ref: 11
GEAR,ENG OIL PUMP DRIVE
€ 42.50
12
0926106002
ref: 12
PIN(6X6)
€ 1.50
13
0833131383
ref: 13
CIRCLIP
€ 2.50
