FRONT FENDER

SFV650 GLADIUS 2009 (K9) USA (E03)

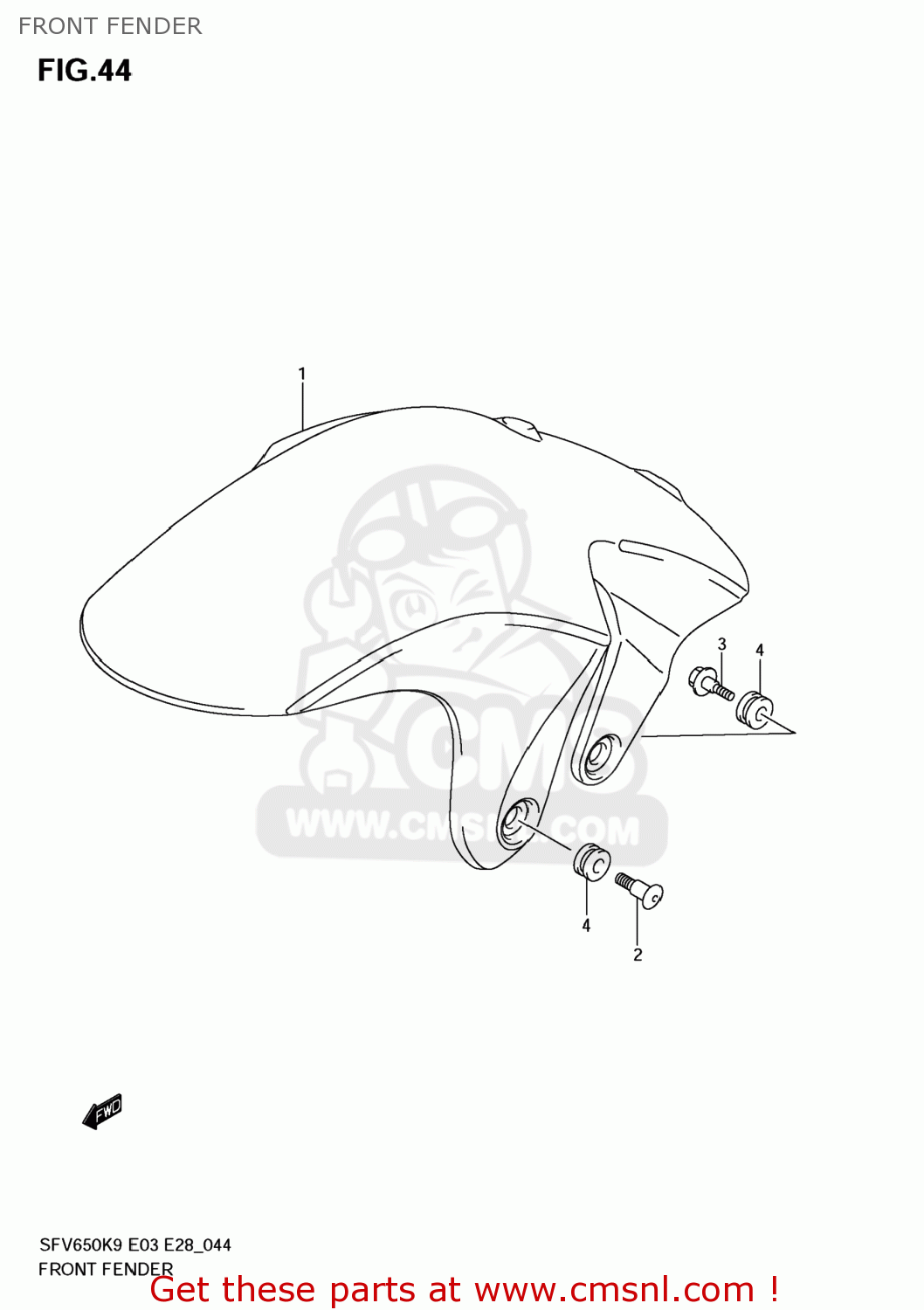

Front fender diagram SFV650 GLADIUS 2009 (K9) USA (E03)

FRONT FENDER SFV650 GLADIUS 2009 (K9) USA (E03)

FRONT FENDER SFV650 GLADIUS 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5311144H00YAY
ref: 1-1

FENDER,FR

€ 155.50

1-2

5311144H00YPA
ref: 1-2

FENDER,FR

€ 139.00

1-3

5311144H00YBD
ref: 1-3

FENDER,FR

€ 139.00

2

0913906146
ref: 2

SCREW(6X16)

€ 3.00

3

0911106092
ref: 3

BOLT(6X19)

€ 2.50

4

0932009016
ref: 4

CUSHION

€ 2.50
