RADIATOR
SFV650 GLADIUS 2009 (K9) USA (E03)

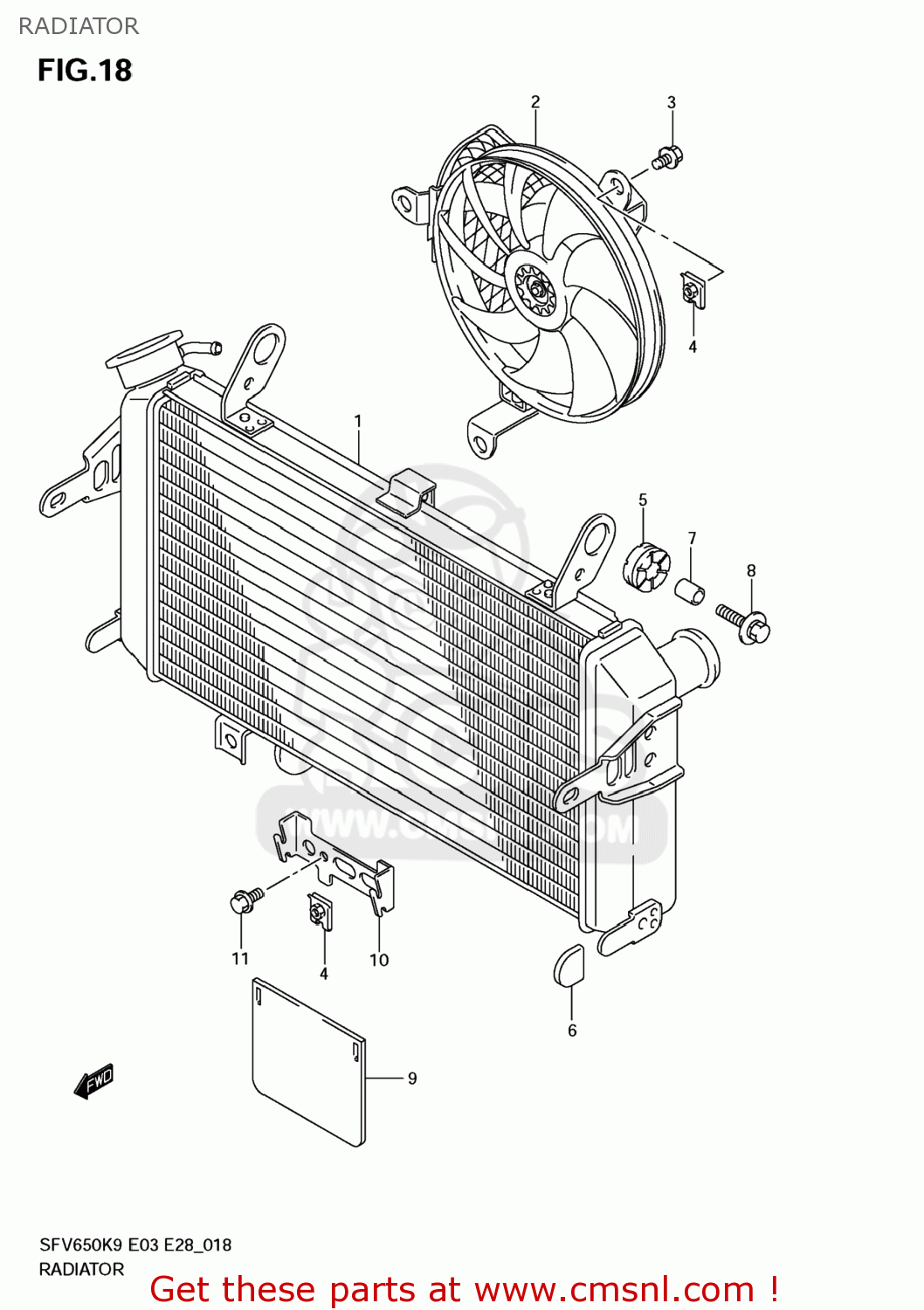

Radiator diagram SFV650 GLADIUS 2009 (K9) USA (E03)
RADIATOR SFV650 GLADIUS 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1771044H00
ref: 1
RADIATOR ASSY,WATER
€ 814.50
2
1780044H00
ref: 2
FAN ASSY,RADIATOR
€ 684.00
3
1771140F00
ref: 3
BOLT,FAN ASSY
€ 3.50
4
1771240F00
ref: 4
NUT,FAN ASSY
€ 3.50
5
0932010051
ref: 5
CUSHION
€ 3.50
6
0932918001
ref: 6
CUSHION
€ 2.50
7
0918006290
ref: 7
SPACER(6.5X10X12)
€ 2.50
8
0911806097
ref: 8
BOLT(6X25)
€ 2.50
9
1778117G00
ref: 9
RUBBER,RADIATOR UNDER
€ 6.50
10
1774117G00
ref: 10
BRACKET,RADIATOR UNDER RUBBER
€ 3.50
11
015470610A
ref: 11
BOLT
€ 2.00
