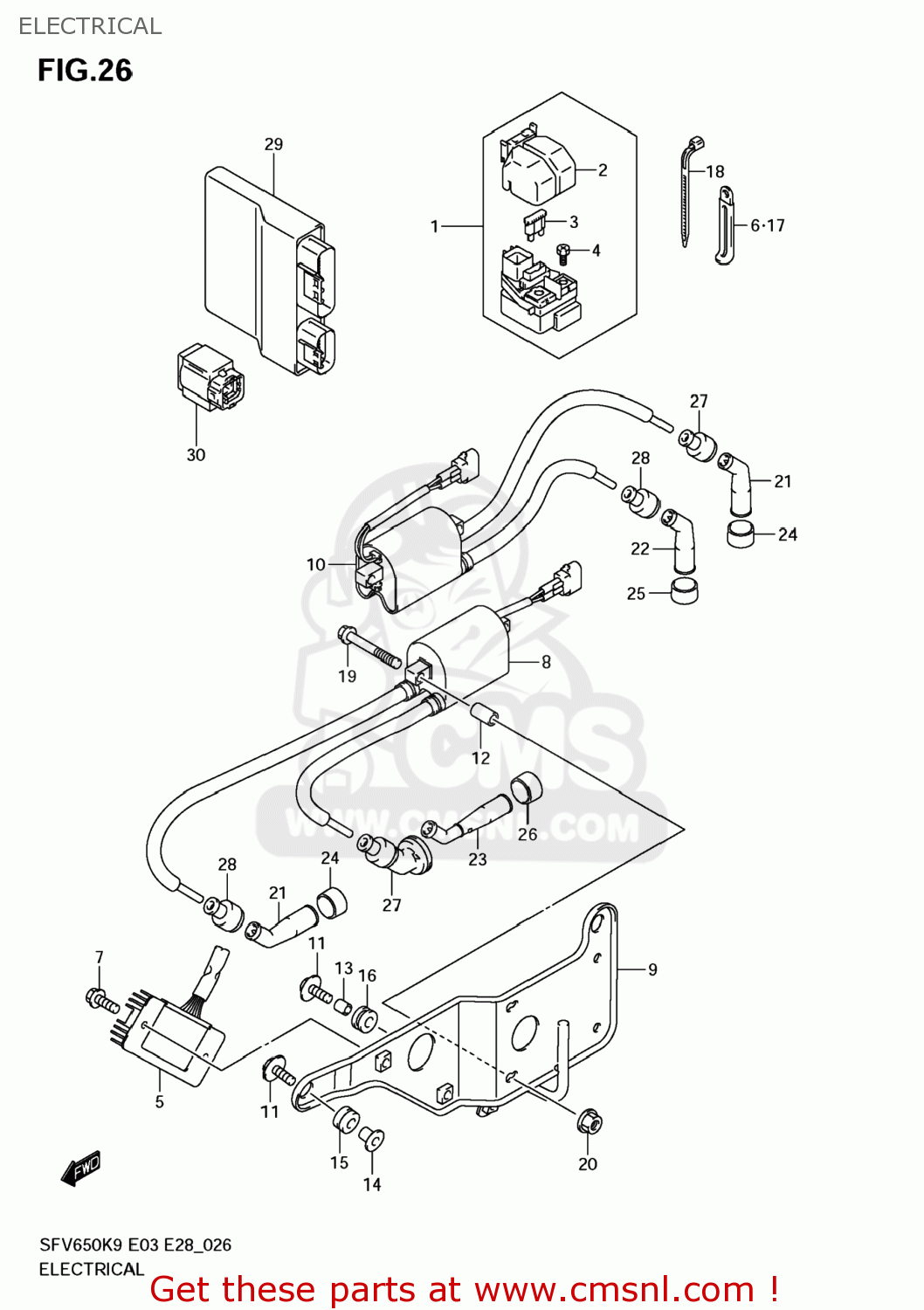

ELECTRICAL

ref

part #

description

quantity

1

3180041G00
ref: 1
31800-41G10

RELAY ASSY,STARTING MOTOR

€ 103.00

2

3186138G00
ref: 2

COVER

€ 3.50

3

0948130501
ref: 3

FUSE(30A)

€ 0.50

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3280041G10
ref: 5

RECTIFIER ASSY

€ 268.50

6

0940406429
ref: 6

CLAMP(L:45)

€ 2.50

7

021620620B
ref: 7

SCREW

€ 2.00

8

3341044H00
ref: 8

COIL ASSY,IGNITION FR

€ 96.00

9

3341444H00
ref: 9

BRACKET,IGN CO

€ 30.00

10

3342044H00
ref: 10

COIL ASSY,IGNITION RR

€ 122.50

11

0911606182
ref: 11

BOLT(6X20)

€ 3.00

12

0918006195
ref: 12

SPACER(6.4X10X18)

€ 3.50

13

0918006263
ref: 13

SPACER(6.5X9X9)

€ 2.00

14

0918006331
ref: 14

SPACER(6.2X8.4X10.9)

€ 2.50

15

0932008501
ref: 15

CUSHION

€ 3.00

16

0932009016
ref: 16

CUSHION

€ 2.50

17

0940406433
ref: 17

CLAMP(L:80)

€ 3.00

18

0940718402
ref: 18

CLAMP(L:165)

€ 2.50

19

015470640A
ref: 19

BOLT

€ 2.50

20

083161006A
ref: 20

NUT

€ 2.50

21

3351017G00
ref: 21

CAP ASSY,SPARK PLUG

€ 28.50

22

3351017G00
ref: 22

CAP ASSY,SPARK PLUG

€ 28.50

23

3351020E00
ref: 23

CAP ASSY,SPARK PLUG

€ 22.50

24

3354123E10
ref: 24

SEAL,SPARK PLUG

€ 5.00

25

3354123E10
ref: 25

SEAL,SPARK PLUG

€ 5.00

26

3354147D00
ref: 26

SEAL,SPARK PLUG

€ 7.00

27

3354217G01
ref: 27

SEAL,HIGH TENSION CORD CTR

€ 5.50

28

3354238B00
ref: 28

SEAL,HIGH TENSION CORD

€ 4.50

29-1

3292044H10
ref: 29-1

CONTROL UNIT,FI

€ 882.00

29-2

3292044H20
ref: 29-2

CONTROL UNIT,FI

€ 882.00

30

3396006G10
ref: 30

SENSOR ASSY,FUEL CUT

€ 75.00
