REAR SWINGINGARM

SFV650 GLADIUS 2009 (K9) USA (E03)

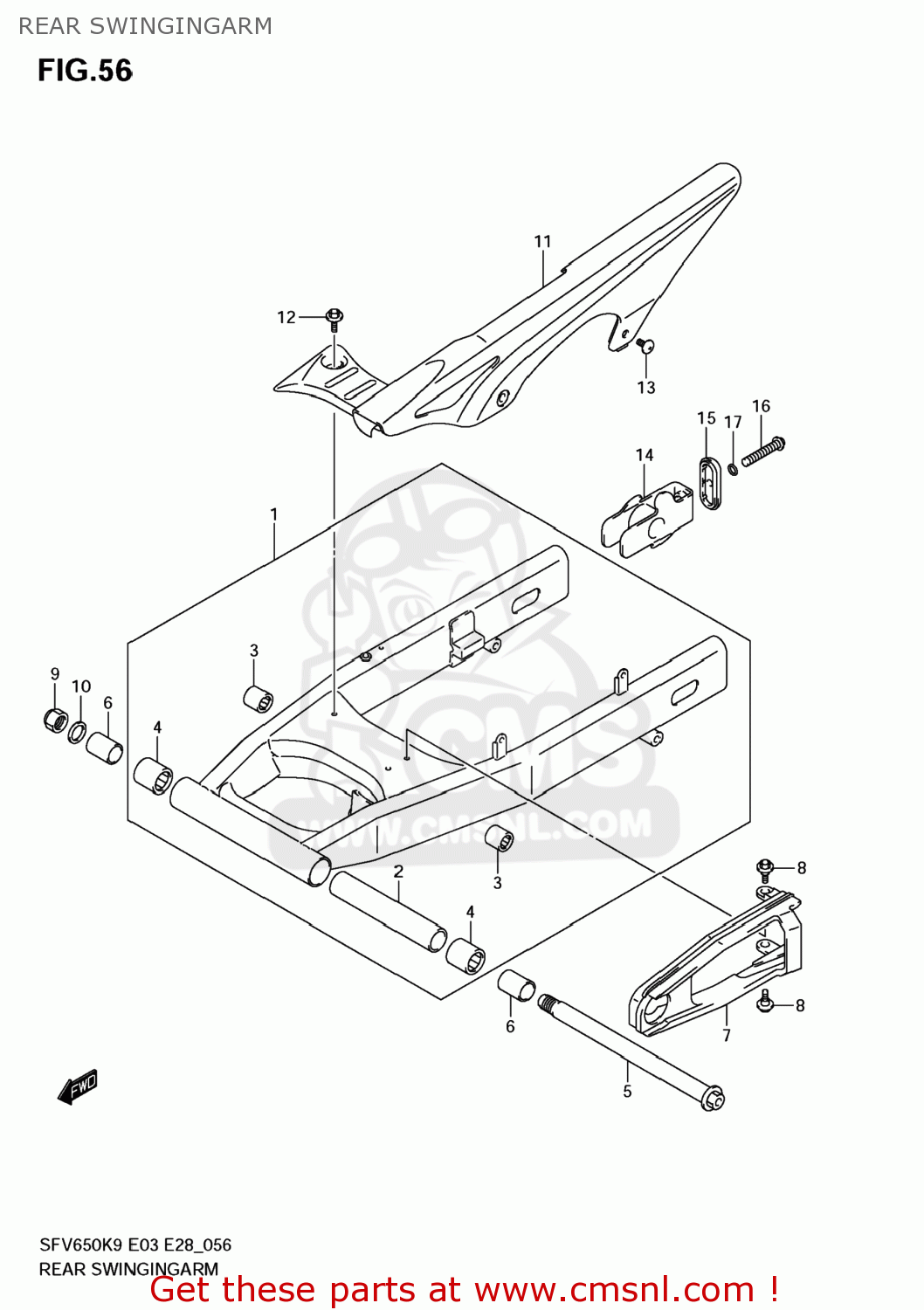

Rear swingingarm diagram SFV650 GLADIUS 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

6100044H00YAP
ref: 1

SWINGINGARM ASSY,RR

€ 833.50

6128217C00
ref: 2

SPACER,RR SWGARM PIVOT CTR

€ 11.50

0926317037
ref: 3

BEARING(17X24X25)

€ 19.00

0926325059
ref: 4

BEARING(25X33X35)

€ 35.00

6121131E00
ref: 5

SHAFT,RR SWINGINGARM PIVOT

€ 53.00

6125121E00
ref: 6

SPACER,RR SWGARM PIVOT

€ 8.50

6127344H00
ref: 7

BUFFER,CHAIN TOUCH DEFENSE

€ 19.00

0911106072
ref: 8

BOLT(6X17.8)

€ 2.00

0915918007
ref: 9

NUT

€ 14.00

0916018030
ref: 10

WASHER(18.5X28X2.6)

€ 2.50

6131044H00
ref: 11

CASE,CHAIN

€ 51.00

0911106065
ref: 12

BOLT(6X16)

€ 2.00

0913906168
ref: 13

SCREW(6X16)

€ 2.00

6141044H00
ref: 14

ADJUSTER,CHAIN

€ 16.00

6142144H0013L
ref: 15

PLATE,CHAIN ADJUSTER GUIDE

€ 22.50

0910608119
ref: 16

BOLT(8X50)

€ 4.50

0916408015
ref: 17

WASHER

€ 3.00
