STARTER CLUTCH

SFV650 GLADIUS 2009 (K9) USA (E03)

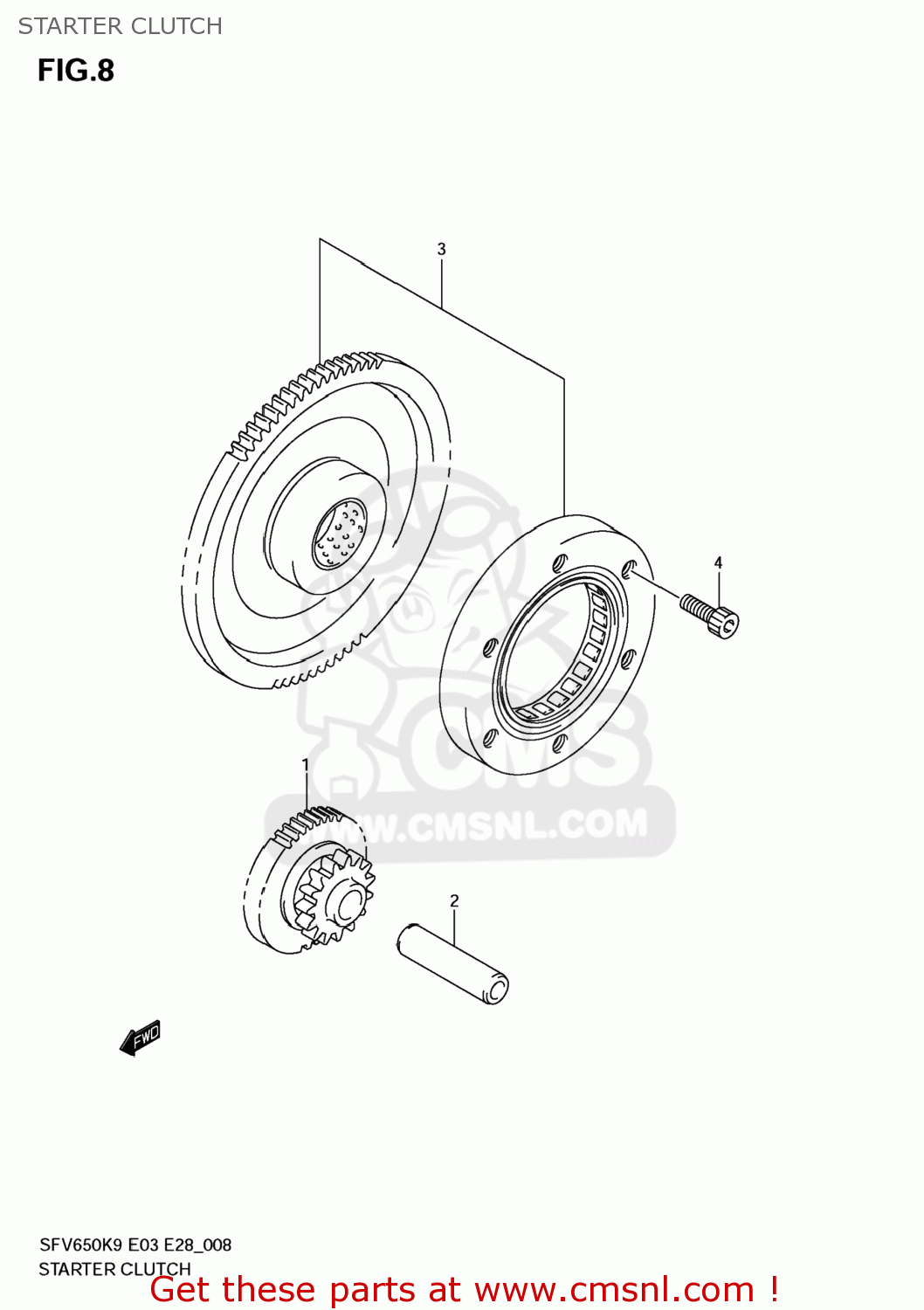

Starter clutch diagram SFV650 GLADIUS 2009 (K9) USA (E03)

STARTER CLUTCH SFV650 GLADIUS 2009 (K9) USA (E03)

STARTER CLUTCH SFV650 GLADIUS 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261127G00
ref: 1

GEAR,STARTER IDLE

€ 57.50

2

0920612006
ref: 2

PIN(8X12X45.5)

€ 7.50

3

1260006821
ref: 3

CLUTCH SET,STARTER

€ 263.00

4

0910608095
ref: 4

BOLT(8X16)

€ 2.50
