CRANKSHAFT
SFV650 GLADIUS 2009 (K9) USA (E03)

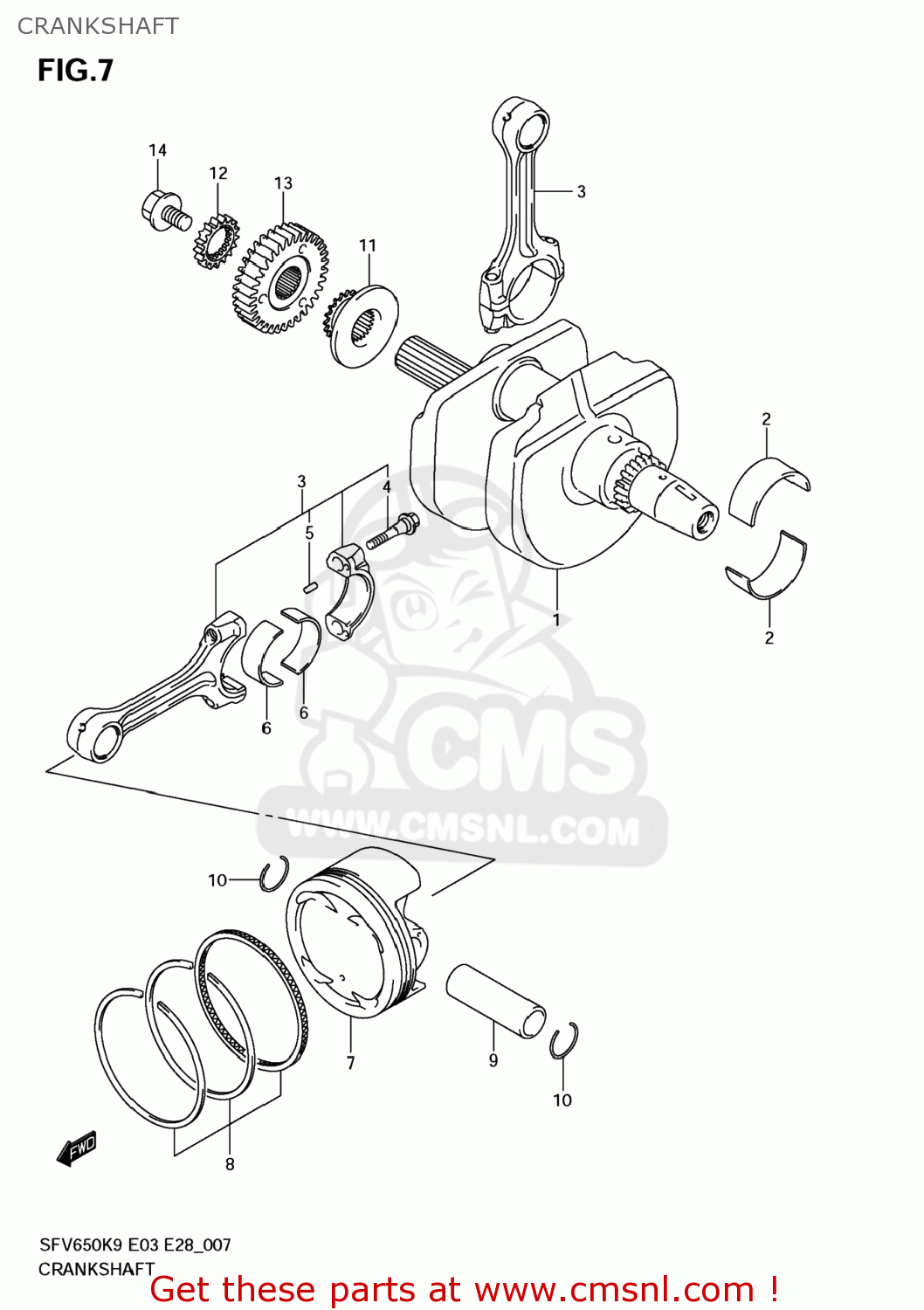

Crankshaft diagram SFV650 GLADIUS 2009 (K9) USA (E03)
CRANKSHAFT SFV650 GLADIUS 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1222044H00
ref: 1
CRANKSHAFT COM
€ 1,397.00
2-1
1222944H000A0
ref: 2-1
BEARING,CRANKSHAFT
€ 14.50
2-2
1222944H000B0
ref: 2-2
BEARING,CRANKSHAFT
€ 14.50
2-3
1222944H000C0
ref: 2-3
BEARING,CRANKSHAFT
€ 14.50
3
1216017G10
ref: 3
CONNECTING ROD ASSY
€ 146.50
4
1216324F10
ref: 4
BOLT,CONNECTING ROD
€ 13.00
5
0422104089
ref: 5
PIN
€ 1.50
6-1
1216446E010A0
ref: 6-1
BEARING,CRANK PIN
€ 17.50
6-2
1216446E010B0
ref: 6-2
BEARING,CRANK PIN
€ 16.50
6-3
1216446E010C0
ref: 6-3
BEARING,CRANK PIN
€ 17.50
6-4
1216446E010D0
ref: 6-4
BEARING,CRANK PIN
€ 16.50
7
1211144H000F0
ref: 7
PISTON
€ 85.50
8
1214015H00
ref: 8
RING SET,PISTON
€ 82.00
9
1215105A00
ref: 9
PIN,PISTON
€ 12.00
10
0938120004
ref: 10
CIRCLIP,PISTON PIN
€ 2.00
11
1273119F00
ref: 11
SPROCKET,CAM CHAIN DRIVE
€ 45.00
12
1745117G00
ref: 12
GEAR,WATER PUMP DRIVE
€ 26.00
13
2110044H00
ref: 13
GEAR ASSY,PRIMARY DRIVE
€ 171.50
14
0910310338
ref: 14
BOLT(10X19)
€ 6.00
