CAM CHAIN
SFV650 GLADIUS 2009 (K9) USA (E03)

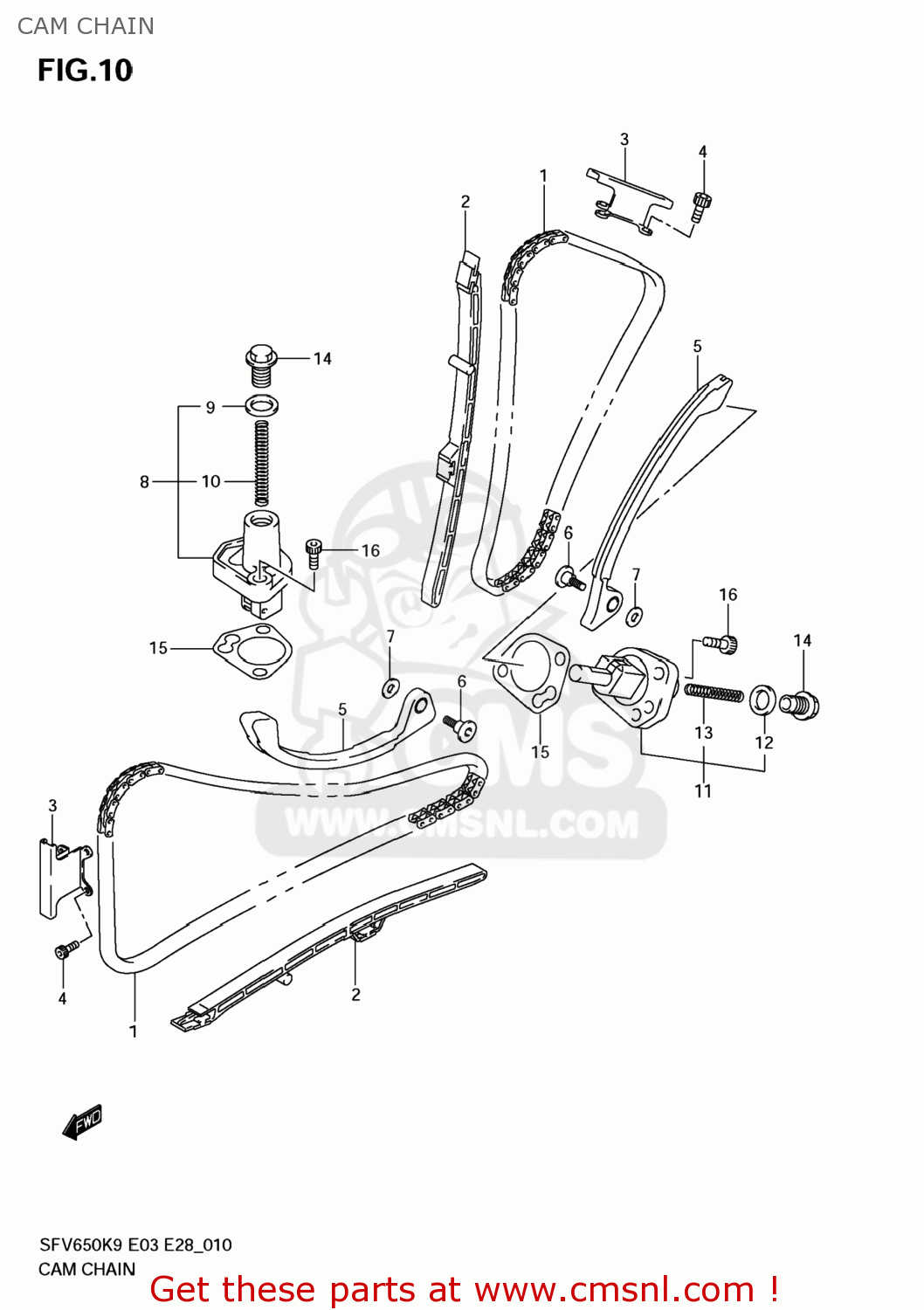

Cam chain diagram SFV650 GLADIUS 2009 (K9) USA (E03)
CAM CHAIN SFV650 GLADIUS 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1276019F01
ref: 1
CHAIN,CAMSHAFT DRIVE
€ 121.00
2
1277144H00
ref: 2
GUIDE,CAM CHAIN NO.1
€ 18.50
3
1278219F00
ref: 3
GUIDE,CAM CHAIN NO.2
€ 25.50
4
071300612B
ref: 4
BOLT
€ 3.00
5
1281117G00
ref: 5
TENSIONER,CAM CHAIN
€ 41.00
6
1281235C00
ref: 6
BOLT,CAM CHAIN TENSIONER
€ 7.00
7
0821106181
ref: 7
WASHER
€ 2.00
8
1283027G00
ref: 8
ADJUSTER ASSY,TENSIONER FR
€ 51.00
9
1283724F10
ref: 9
GASKET,TENSIONER ADJUSTER (NAS)
€ 4.00
10
1283139F00
ref: 10
SPRING
€ 3.50
11
1283027G10
ref: 11
ADJUSTER ASSY,TENSIONER RR
€ 75.50
12
1283724F10
ref: 12
GASKET,TENSIONER ADJUSTER (NAS)
€ 4.00
13
1283139F00
ref: 13
SPRING
€ 3.50
14
1283317G00
ref: 14
PLUG,TENSIONER ADJUSTER
€ 3.50
15
1283727G00
ref: 15
GASKET,TENSIONER ADJUSTER (NAS)
€ 3.50
16
071300625B
ref: 16
BOLT
€ 3.00
